HD IR Thermal Imaging PTZ Camera

Views: 0     Author: Site Editor     Publish Time: 2023-09-13      Origin: Site

Inquire

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button


HD IR Thermal Imaging PTZ Camera


Features:

1. Integrated infrared thermal imaging, visible light camera, laser supplementary light, infrared light, laser ranging, and pan-tilt control system, realizing all-round video surveillance day and night;

2. Using thermal imaging technology for temperature measurement, it is not limited by the light source, and the image is clear. The temperature measurement range: -20℃~150℃, 0℃~550℃;

3. Using laser ranging module, it can quickly and accurately measure the distance of the target object;

4. Using surface-emitting laser, electric zoom at the same time as visible light, 2.0°~70°continuously adjustable, so as to achieve the effect of night vision supplementary light;

5. The PTZ supports a variety of mainstream multi-million digital high-definition all-in-one machine cores and high-definition sensors to achieve high-definition image capture;

6. All-weather environment design, high-strength aluminum alloy precision casting shell, impact resistance and corrosion resistance;

7. It adopts full digital control, flexible programming, exquisite and simple design of transmission system, can be arbitrarily and rapidly positioned and continuously tracked and scanned, and realizes all-round and no blind spot monitoring in the true sense;

8. The infrared lamp and the camera truly realize the separation of the three compartments, completely solving the problems of the infrared lamp aging too quickly and the lens of the dome machine being fogged;

9. The pan/tilt shell and circuit board components can be treated with professional anti-salt spray coating, which is corrosion-resistant and anti-oxidation (customizable);

10. The protection level of the gimbal reaches IP67, fully sealed and filled with nitrogen to support underwater work, and supports three-level lightning protection and surge protection.

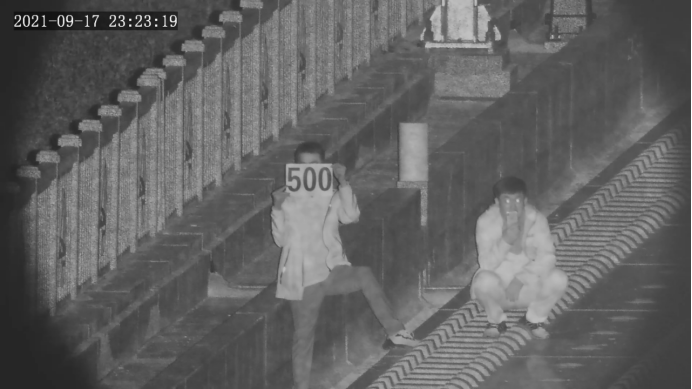

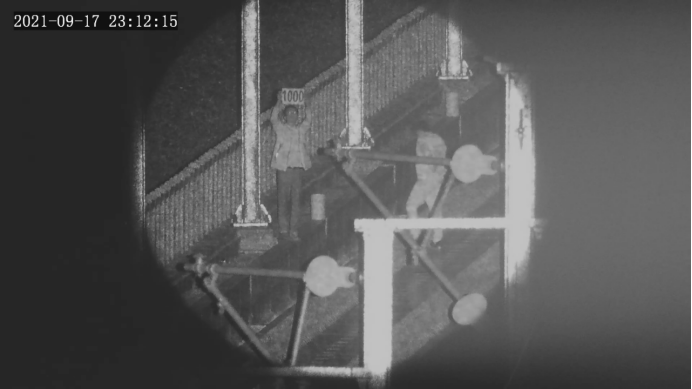

企业微信截图_16945917497859企业微信截图_16945917452703


Technical Specification:


Model

AGT-RC2186

Detection

Day: 8 km;


Night:3 km

Consumption

15W, 810nm, NIR

Laser angle

0.5°~20°

Angle and distance matching

DSS digital stepper illumination angle control, unique laser angle and distance matching technology, min 0.1°follow-up zooming

GHT-II super homogenizing HD illumination technology

0.01°SLM optical axis aiming and locking

Camera

1/1.8'', 0.0002lux high sensitive color to B/W CCD ,2 megapixel


Automatic ICR switch,H.264 video format

Lens

11-800mm HD lens, infrared correction, 2 mega pixels, motorized zoom



Penetrate fog

Optional, optical filtering and AFR optoelectronic enhanced image processing technology, color penetrate fog

Housing

One integral aluminum alloy housing,sealed and waterproof,IP66

Load duty

50kg

PT

Pan: 360°continuously


Tilt: +45°~-45°

Rotation speed

Pan: 0.01~30°/S


Tilt: 0.01~15°/S

Preset

80, with patrol and scan function

Interface

1*RJ45,1*AC24V

Power supply

AC24V±10%,50Hz,150W,standard configuration AC220V->AC24V adapter

Weatherproof

IP66

Anti-lighting

Power voltage 4000V,communication signal 2000V

Protocol

Pelco-P、Pelco-D and so on standard protocol, baud rate 2400、4800、9600、19200

Operational temp.

-25℃~+55℃ (-40℃ optional)

Weight

≤40kg
