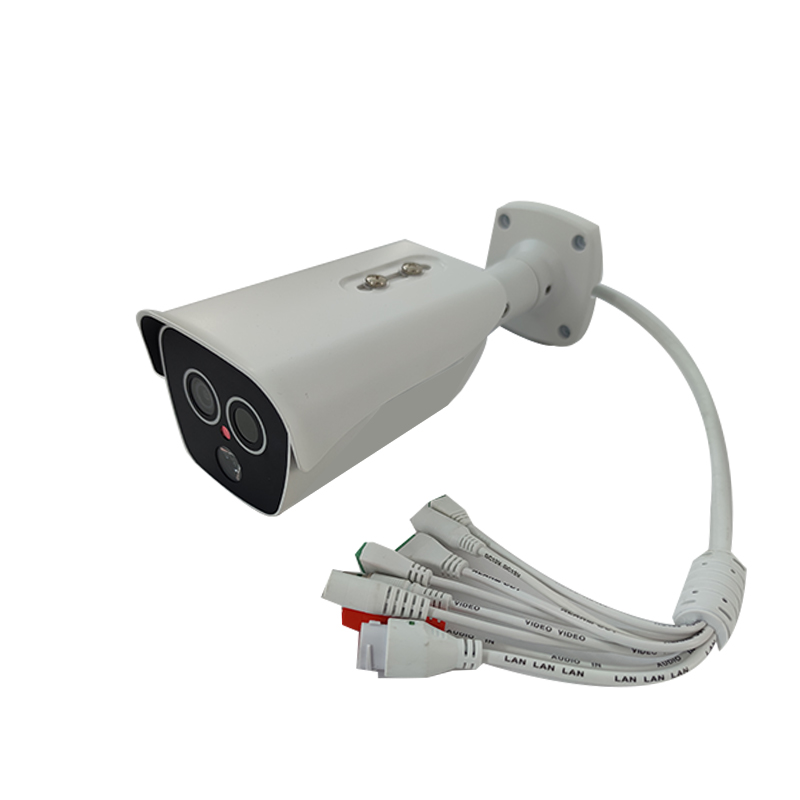

AGT-KMS1200
AGT-KMS1200 intelligent fixed-point temperature measurement camera is specially developed for the needs of non-contact temperature measurement, which can perform large-area, accurate and efficient temperature measurement. The product is based on the accurate temperature measurement technology of thermal imaging, which can timely alarm the over-temperature/low-temperature point, and assist the staff to implement rapid intervention methods and emergency measures. It can be widely used in industrial temperature monitoring scenarios where temperature control is required, scenarios in which the temperature of various components is monitored during the temperature rise test of circuit boards, and temperature measurement in the power transmission network.
Overview：
It integrates infrared thermal imaging, high-definition visible light, infrared fill light, and intelligent analysis, with integrated design, high integration, and easy installation and use;
The latest generation of VOx detector based on MEMS technology, the detection sensitivity (NETD) can reach 50mk, which is higher than the conventional product, obtains more delicate picture quality, and is less affected by fog, rain and snow weather;
Excellent image fusion technology, superimposed with visible light image, the image visual effect is better than 640×512 resolution thermal image;
SDE image detail enhancement technology, the image is smooth and noise-free, a variety of pseudo-color and hot-black and hot-white polar image mode switching, strong adaptability, easy to find low-contrast hidden targets;
Visible light is based on full HD color/black and white dual mode low illumination CMOS sensor design, small size and light weight;
Support full-screen point, line, and surface accurate temperature measurement, based on the black body radiation law algorithm based on the raw data of each frame of the front end, short response time, no delay, alarm threshold and alarm strategy can be set remotely;
Unique regional parameter correction, the emissivity and distance of each temperature measurement area can be set separately, and the temperature measurement is more accurate;
Based on IP full network design, one network cable can realize the interactive transmission of all video, alarm data, and positioning data, and the system networking and implementation are simple;
The whole machine adopts super-strong aluminum alloy shell, IP67 protection, anti-rain, anti-dust, and can adapt to various harsh environments.
Model | AGT-KMS1200 |
Thermal Camera | 1. Detector: 5th generation uncooled focal plane array VOx detector 2. Pixel: 160×120 3. Wavelength: 8～14μm 4. Focal length: 1.9mm 5. NETD: 50mK (@25℃ F1.0) 6. Field of view: 57°×44° (f1.9mm, no thermal lens) 7. Image enhancement: excellent image fusion algorithm with 18 fusion modes 8. Pseudo-color polarity: 18 kinds of pseudo-color images, hot black/hot white two polarities |
Visible Camera
| 1. Sensor type: 1/2.7 inch star-level CMOS, integrated ICR dual filter day and night switching 2. Pixel: 1920×1080 3. Focal length: 3.6mm 4. Minimum Illumination: Color: 0.01Lux @ Black and White: 0.001Lux @ IR 0Lux 5. Day and night type clear light: 0.4-0.75um visible light wide spectral window and 0.8-0.95um near-infrared spectral window, day and night independent double clear light window, improve the signal-to-noise ratio of imaging light and stray light 6. Fill light function: three-in-one near-infrared fill light |
Video and audio | 1. Thermal image resolution: 640×480, 320×240, 160×120 2. Visible light resolution: 1920×1080, 1080×720, D1, CIF 3. Video encoding: H.265/H.264, support dual stream 4. Audio codec: G.711U 5. Image flip: horizontal flip, vertical flip 6. Dual light fusion: support 18 fusion methods |
Temperature measurement function | 1. Temperature measurement range: -10℃～+140℃, -10℃～+400℃ 2. Temperature measurement error: ±5°C/±5% of the range to take the maximum value 3. Temperature measurement method: support point temperature measurement, line temperature measurement, regional temperature measurement and other methods of temperature measurement, parameters can be configured separately 4. Accuracy correction: support global accuracy correction and regional accuracy correction 5. Over-temperature alarm: alarm threshold can be set, support higher than the highest temperature / lower than the lowest temperature / between / outside the alarm
|
Interface | 1. Communication and control: 1 RJ45 10M/100M adaptive Ethernet port; 1 alarm input, 1 alarm output; 1 audio input, 1 RS485 interface, 1 BNC video output 2. Network protocol: ICMP, TCP, UDP, RTP, RTSP, DHCP, PPPOE, UPNP, DDNS, ONVIF, GB28181 |
Power consumption | 1. Power supply voltage: DC12V 2. Power consumption: ≤5W |
Environment adaption | 1. Working temperature: -20℃～55℃ 2. Working humidity: ≤90% 3. Waterproof grade: IP67 |
volume and weight | 1. Weight: 760g 2. Dimensions: 101mm×81mm×245mm (length×width×height) 3. Installation method: wall/hoisting |
