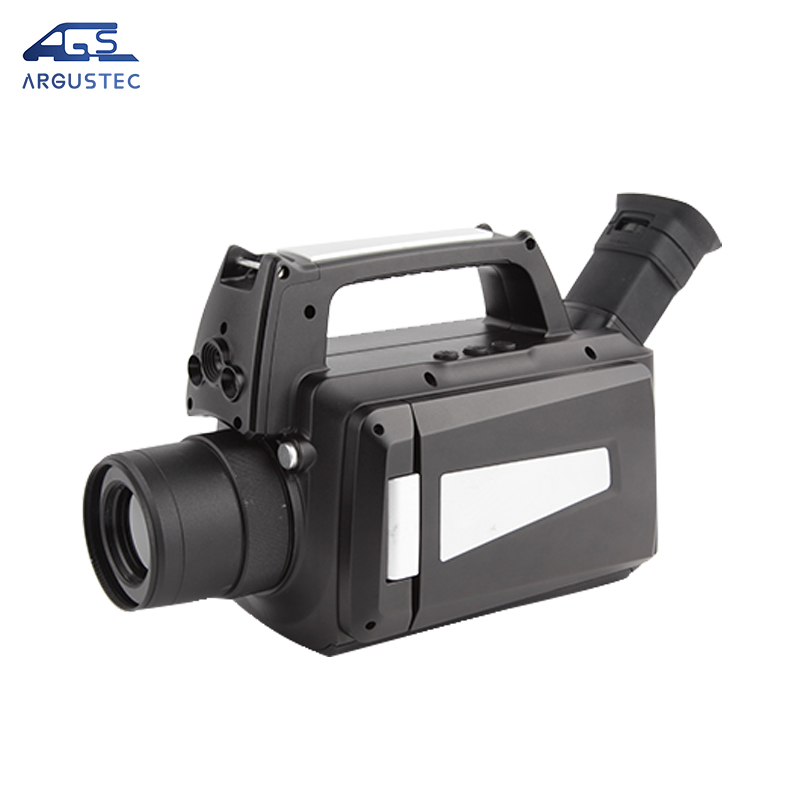

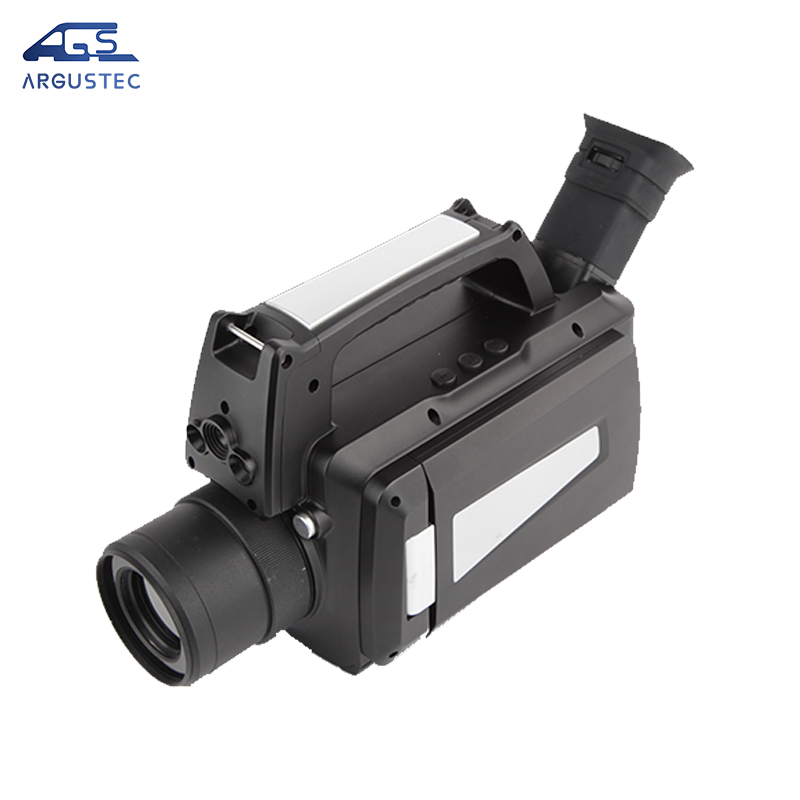

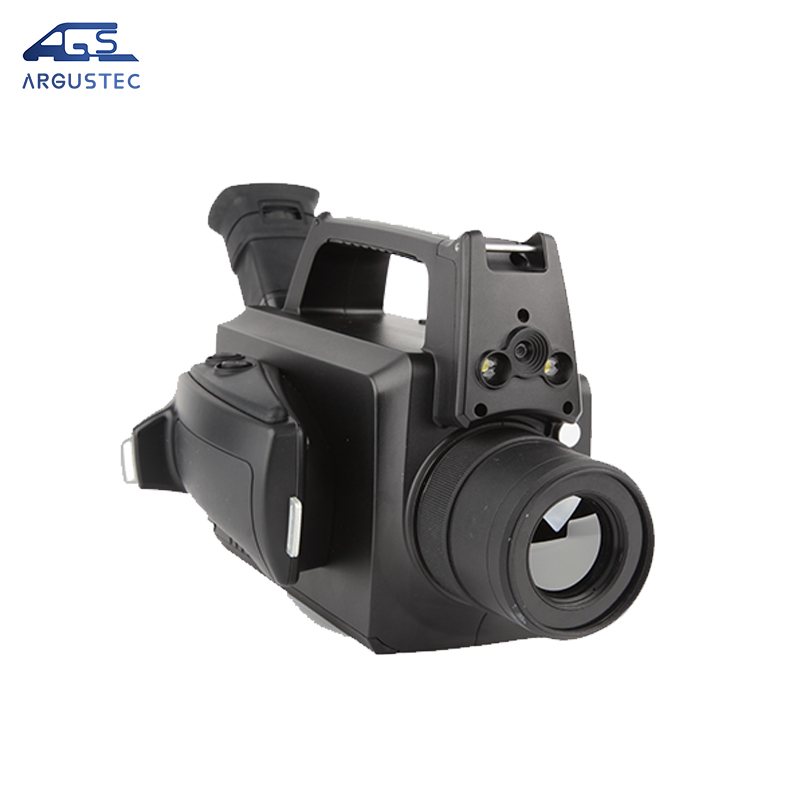

Infrared Gas Leakage Detection Thermal Imaging Tool Camera

Availability:

PDF Export

  • AGT-GF706

Function

11 color pallet

11 languages

1-8x digital zoom

10 movable spot temperature measurement

5 movable area temperature measurement

2 line temperature measurement

Shortcut customization

Auto focus

Electrical focus

Power saving mode

LCD brightness adjustment

Video output NTSC or PAL

Network settings

Time/date settings

Factory reset

SD card unloading, formatting

SD card capture, video storage

Capture voice or text annotations

Snapshot continuous shooting

Alarm catch

Alarm video

Isothermal function

Temperature setting

Gas leak detection and jitter mode

Built-in common material ratio emissivity selection table

CMOS visible image and storage

Infrared and visible light image fusion

Integration of high and low temperature

Standard Accessories

GF706 infrared gas leakage thermal imager

Shoulder strap

Safety box

Lens cap

Li-on Battery(2pcs)

Charger

Video output cable

Power adapter

SD Card

SD Card reader

User manual

Network cable (Mini-USB to RJ45)

Technical Specification:

Item

AGT-GF706

Detector

Type

Cooled quantum well FPA

Resolution

320×256


FOV/Minimum focal length

14.5°×10.8°/0.5m

24°×18°/0.3m

8.8°×6.7°/0.8m

Spatial resolution

0.79mrad

1.13mrad

0.48mrad

NETD

≤0.025℃@30℃

SF6 detection sensitivity

≤0.001ml/s

Frame rate

60Hz

Focus

Auto/Electric focusing/Manual

Spectral range

10.3-10.7um,peak value 10.55μm

Visual camera built-in

5 Megapixels CMOS,with LED

Display

Viewfinder

HD 0.6” color OLED, with zooming function

LCD

High resolution 5” color digital touch screen

Measurement

Temperature Range

-40℃- +500℃

Accuracy

±2℃ or ±2% (of readings, whichever is greater)

Temperature correction

Auto/manual

Measurement Mode

Up to 10 movable spots,5 movable area(maximum & minimum temp. capture、average temp),line temp. measure,isotherm analysis,temp. difference measure, overheat alarm(voice, color)

Image settings

Palettes

11 color palettes for option(including iron-red,rainbow,black-white,black-white reverse...)

Image Adjustment

Auto/manual contrast, brightness adjustment

Settings

Date/time, Temperature unit ℃/℉/K, Language

Emissivity correction

Variable from 0.01~1.0, or calibrate emissivity through a predefined material emissivity table

Ambient temp. correction

Auto,or user setting

Atmospheric transmissivity correction

Auto: based on the input object distance, relative humidity, ambient temperature

Storage

Memory card

8G SD card, max support 32G

Storage method

Manual/auto single frame photo saving, continuous visual、thermal video recording

File format - thermal

Single frame

JPEG,with 14-bit measurement image data

Dynamic

MPEG-4

File format - visual

Single frame

JPEG

Dynamic

MPEG-4

Voice annotation

60s' voice recording,stored with images(microphone built-in)

Target indication

Laser pointer

Class 2,1mW/635nm, red

Power supply

Battery

Li-ion battery,rechargeable

Operation time

2 hours continuous operation

Charging type

Smart charger or power adapter (optional) , local charging

Energy-saving mode

Yes

External power

10-15V DC

Environment parametrs

Working temp.

-15℃-+50℃

Humidity

≦90%(Non-condensing)

IP rate

IP54

Dimension & weight

Weight

2.5Kg

Dimension

270mm×172mm×177mm

Interface

Power interface

Yes

Video output

Standard analog video interface

USB2.0

Image, video, measurements data and voice are transmitted to PC
