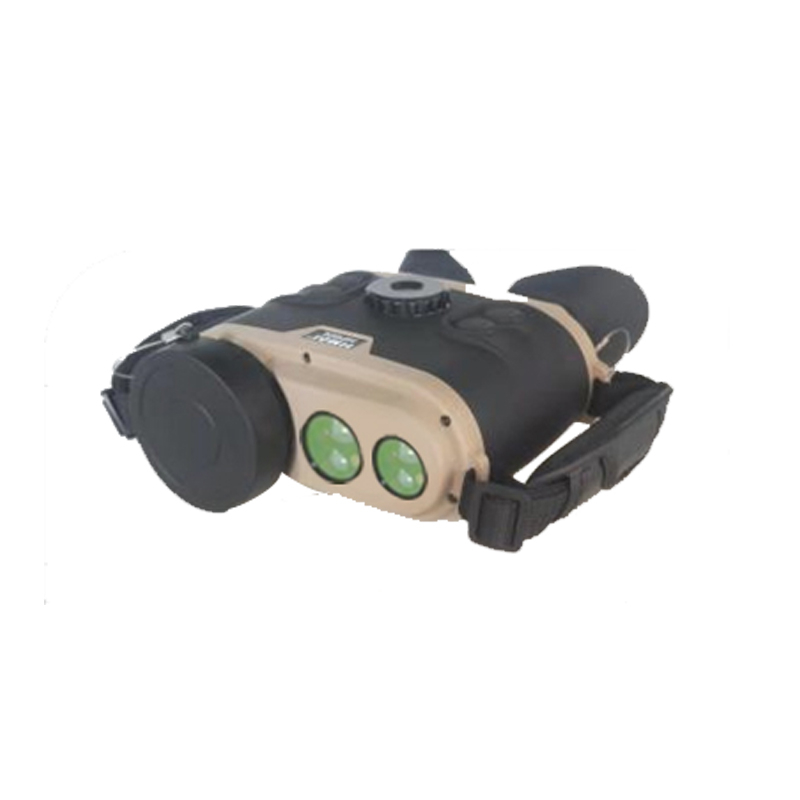

Infrared Long Distance Handheld Camera With Night Vision

Availability:

PDF Export

  • AGT-GMF-650

Key Benefits:

The binocular day and night observer is a system using a new type of sensitive uncooled infrared focal plane detector and advanced imaging circuit. The system adopts a low power consumption design, the rechargeable battery can work continuously for more than 5 hours, and an external power supply can also be used. The shape and structure design of the system is optimized according to the ergonomic design. With built-in electronic compass, satellite positioning receiving module and optional laser module, users can quickly locate the observation target. In addition, it also has the functions of taking pictures and videos in advanced image compression format, and optional WiFi wireless image transmission module, which supports long-term monitoring and evidence collection capabilities. Optimized ergonomics and lightweight design enable good grip performance and user experience.


Technical specification:

Infrared thermal imaging

Detector Type

Non-cooled FPA

Detector Specifications

384×288 17μm

640×512 12μm(optional

Working band

8~12μm

Frame Rate

50Hz

NETD

40mk

Focal length

50mm

field of view

7.5°×5.6°

Focus method

Manual focus

Electronic zoom

1×~8×

Image polarity

White Hot/Black Hot/False Color (9 types)

Display control

Brightness/Contrast/Auto Mode

Image Processing

Digital filtering/detail enhancement

Reticle

Eight Kind

Hot spot capture

support

Laser ranging (optional)

Working band

905nm(safe for human eyes)

Ranging range

10m~1200m   *

Ranging accuracy

<±1m

Ranging frequency

1 times/second

Ranging efficiency

>98%

* Test conditions: visibility≥17km, target reflectivity≥30%

Test Distance

People(1.8m×0.75m)

Detect :≈2.2 km;   Recognize:≥0.7 km

vehice1(2.3m×2.3m)

Detect :≈6.0 km;   Recognize :≥2.0 km

Test conditions: atmospheric visibility 23km, ambient temperature 20°C

Display

Monitor

2× 0.5’1024×768 OLED

Eyepiece magnification

13×

Exit pupil distance

25mm

Photo recording function and storage (optional)

camera function

JPEG pictures

Video

MP4

Record storage and output

Record size 720×576

Built-in 32G card (optional 64G); USB2.0 interface output

Satellite positioning (GPS/BDS/GLNSS)/azimuth (optional)

Positioning accuracy

CEP<2.5m

Altitude

Support

Electronic compass

Azimuth Accuracy <±1.0°(RMS)

Pitch angle accuracy: ±0.3˚(RMS)

Power parameters

Battery supply

1 section 26650 rechargeable lithium battery 4.2V @5000mAh

Operating voltage range

DC:+3.0V~+4.2V

Power consumption

<3.0W

operating hours

Continuous working time: ≥6 hours

External power supply

DC:5V

Anti-reverse

Support

Wireless image transmission (optional)

Wifi

Support

Environmental parameters

Product Protection level

IP66

storage temperature

-45°C~+60°C

Operating temperature

-35°C~+60°C

humidity

5%~95% (non-condensing)

Shock

Scanning frequency: 5-500-5Hz@1.5g

Pound

10g/11ms half sine wave

Physical parameters

Product weight

≈ 1.1kg

Overall size (mm)

220(L)×170(W)×95(H)
