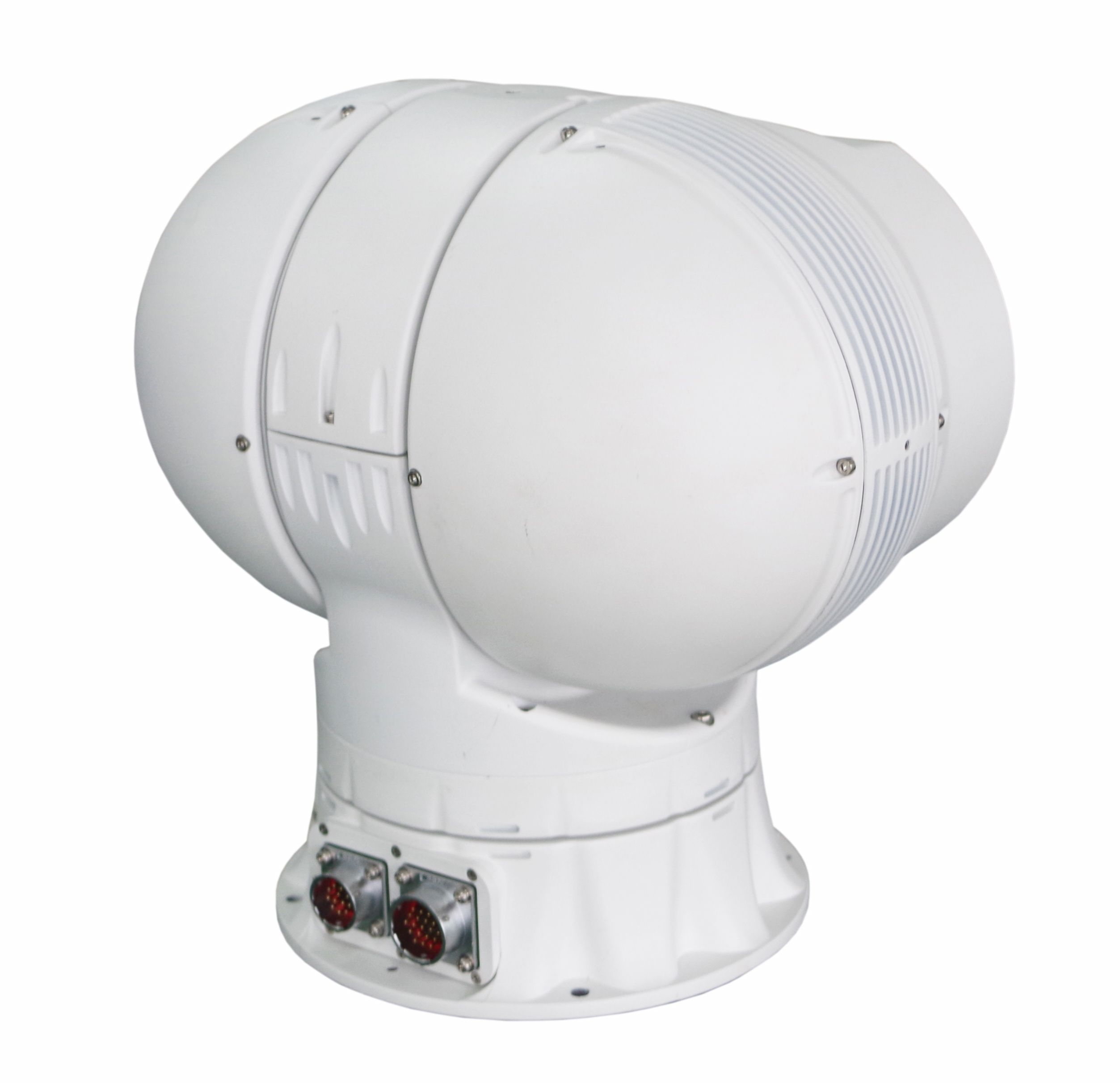

AGT-DMS10-2132
Long range 24-hours monitoring.
Delicate and smooth images．
360 degree of Omni-directional Pan-Tilt
Super-strong aluminum alloy, IP67 ingress
Higher sensitivity
Effective in all environments
Lightweight design: weight ≤ 10kg
Support image scale, support LRF, support access to multiple sensors.
Active defence: support for loud speaker + flashing lights to deter or deny criminals.
Pitch: -90°to +90°, horizontal 360°continuous rotation, full coverage of 720° three-dimensional space.
Horizontal: 0.01°/s to 100°/s; pitch: 0.01°/s to 80°/s, high speed start/stop, focal speed adaptive, accurate target positioning.
Seaport and airport monitoring;
Water system monitoring;
Storage monitoring;
Oilfield & oil depot security;
Ecological and environmental monitoring;
Border and coastal defense;
Highways and railways monitoring.
Model | AGT-DMS10-2132 |
Distance | Day: 2000m Night: 1000m |
Visible Camera | 1. Sensor type: back-illuminated ultra-low illumination starlight CMOS 2. Minimum illumination: color: 0.0005Lux @ black and white: 0.0001Lux @ 0Lux（IRON） 3. Lens：7mm～330mm, 47 times optical zoom, 16 times digital zoom. 4. Image processing: white balance, electronic shutter, frame accumulation, backlight compensation, glare suppression, 2D/3D digital noise reduction, electronic anti-shake, wide dynamic. 5. Day and night light: 0.4-0.75um visible light wide spectral window and 0.8-0.95um near-infrared spectral window day and night independent double light window, improve the signal-to-noise ratio of imaging light and stray light 6. Support electronic fog penetration and optical fog penetration |
Laser illuminator | 1. Laser Homogenization: new infrared GHT-III HD flood light source, no scattered particles. 2. Laser angle: 2.1°～20°, DSS digital stepping lighting angle control technology, 0.1° precise follow-me control, automatic tracking or manual fine-tuning intelligent matching. 3. Laser distance: 1000m 4. Control modes: forced on, forced off, light sensitive automatic control in three modes, all can be set remotely |
Video audio | 1. Thermal camera resolution：support 1920×1080；1280×1024；1280×960；1024×768；1280×720；704×576；640×512；640×480；400×300；384×288；352×288；352×240 2. Visible camera resolution：2592×1520；2560×1440；1920×1080；1280×1024；1280×960；1024×768；1280×720；704×576；640×512；640×480；400×300；384×288；352×288；352×240 3. Video encoding: H.265/H.264/MJPEG，multi-stream support 4. Video code rate:32Kbps～16Mbps 5. Audio encoding:G.711A/ G.711U/G726 6. Image flip: left and right / up and down / diagonal 7. OSD settings: Support OSD display settings for channel name, time, gimbal orientation, field of view, focal length, and preset bit name settings |
Intelligent functions | 1. Intelligent analysis: support intrusion detection, boundary crossing detection, entering/leaving area detection, motion detection, wandering detection, people gathering, fast moving, target tracking, items left behind, items taken; people/vehicle target detection, face detection; and support 16 area settings; support intrusion detection people, vehicles filtering filtering function. 2. Automatic tracking: support single scene tracking/support multi-scene tracking/support panoramic tracking/support alarm linkage tracking. 3. Intelligent information fusion: support 512 AR intelligent information fusion, intelligent analysis of video identification information fusion, support orientation angle, field of view angle, focal length, magnification information fusion 4. Alarm management: support alarm capture and upload |
Enhanced Features | 1. Distance measurement: support passive distance measurement; support optional laser distance measurement. 2. Support sound and light alarm: internal integrated tweeter + flashing light, support alarm sound customization. 3. Support alarm linkage fire fighting device. 4. Camera diagnostic functions: support disconnection alarm, support IP conflict alarm, support illegal access alarm (illegal access times, lock time can be set), support SD card abnormal alarm (SD space is insufficient, SD card error, no SD card), video masking alarm, anti-sun damage (support threshold, masking time can be set). 5. Whole life management: health index record function, support working time, shutter count, working temperature, limit temperature, etc.; zoom lens and head each motor working cumulative time, etc. 6. Support disconnection renewal. 7. Power failure memory: support can restore the position before power failure, preset point state, cruise state, line sweep state. 8. Remote maintenance: with fault query, self-test, remote restart function; online upgrade, remote upgrade. 9. Key frame setting: support key frame interval 100 levels adjustable. 10. Configuration file: support configuration file import and export function. 11. Web access: support WEB full function configuration, remote online upgrade. |
Safety control | 1. Support illegal access alarm: the number of illegal access, lock time can be set. 2. Support three levels of user rights management, administrator, operator and normal user. 3. Security mode: authorized user name and password, support IP whitelist and blacklist, MAC whitelist and blacklist. 4. User mis-login lockout |
PT | 1. Rotation speed: Horizontal: 0.01°/s～100°/s; Pitch: 0.01°/s～80°/s, support focal speed adaption. 2. Rotation angle: horizontal: 360° continuous rotation; pitch: -90°～+90° 3. Structure material: quasi-spherical design of micro-rotary, integrated 5-window multi-channel, fine cast high strength aluminium alloy material. 4. Window glass: infrared/visible high efficiency optical glass, clean film coating. 5. Surface coating: PTA triple anti-corrosion coating, anti-corrosion. 6. Wiper: support intelligent automatic wiper 7. Defrost: visible window defrost 8. Preset position cruise: 3000 preset positions, support 16 cruise routes, each can support 256 preset positions 9. Watch function: preset bit / pattern scan / cruise scan / vertical scan / frame scan / panorama scan / apple skin scan / horizontal fan sweep line scan 10. Support 3D frame selection zoom 11. Orientation information: support angle query/real-time return and positioning; support lens field of view return and positioning 12. Zero point correction: support northward zero point remote correction function |
Electrical interface | 1. Communication and control: 1 *RJ45 Ethernet port; 2* alarm inputs, 1 *alarm output; 1 *audio input input, 1 *RS485 interface. 2. Protocol: Support HTTP, HTTPS, FTP, SMTP, DNS, NTP, RTSP, RTCP, RTP, TCP, UDP, ICMP, DHCP network protocols; support ONVIF and GB28181 protocols. 3. Development interface: Support HP-SDK secondary development |
Power supply | 1. Working voltage: DC 9~36V, external AC220V or battery power adapter. 2. Peak power consumption: ≤60W |
Environmental adaptation | 1. Working temperature: -40℃～60℃ 2. Working humidity: ≤95% 3. Protection grade: IP67 4. Anti-salt spray: no change in surface after 96 hours of continuous spraying at pH 6.5~7.2 5. Electromagnetic compatibility: anti-surge 6KV, anti-static 8KV contact / 15KV air |
Volume weight | 1. Weight: ≤10kg 2. Size: 312mm×200mm×296mm (L×W×H) 3. Mounting: Front / side / wall / hanging / vehicle / tripod pro-rack |
* The detection distance is related to the object and environment. Please contact with us for further information.
