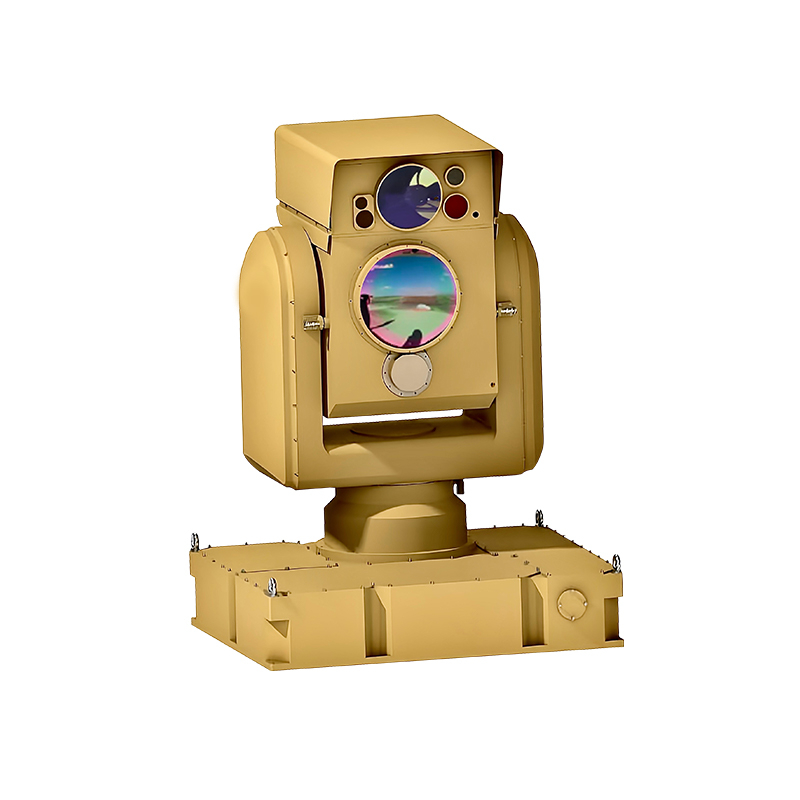

Intelligent AF EOD laser system

Availability:

PDF Export

  • Intelligent AF EOD laser system

Key Benefits:

1.Introducing the Intelligent AF EOD laser system, a cutting-edge technology designed for precision target positioning and imaging. This state-of-the-art system allows you to access radar and other target guidance information, providing you with rapid and accurate target positioning capabilities.

Crafted with the latest technology, this laser system is built to deliver superior performance and reliability, making it an ideal choice for professionals in the field. With its advanced features, you can easily and quickly locate targets, ensuring that your mission is executed with maximum efficiency.

The Intelligent AF EOD laser system is designed to meet the highest standards of quality and performance, making it an essential tool for any professional who requires precision targeting. Whether you are working in law enforcement, china, or any other field that requires accurate target positioning, this laser system is the perfect solution for you.

Invest in the Intelligent AF EOD laser system today and experience the power of precision targeting and imaging like never before. With its advanced features and superior performance, this laser system is the perfect tool to help you achieve your mission objectives with ease and confidence.

2. It can be used for fast target recognition and intelligent tracking of UAV.

3. With the ability of far-field high-energy laser beam convergence and control, it can achieve the rapid physical destruction of UAV targets.

4. The convenient operation interface can effectively coordinate the effective work of each system, and monitor the working state of each part of the system.

5. The system can be easily disassembled, transported, assembled and debugged, and can also be easily integrated on the vehicle.

Applications:

Intelligent AF EOD laser system, integration of high-energy laser, electronic information, image processing and other technologies, it realizes the intelligent recognition, high-precision tracking and aiming, AF EOD laser to the low-slow and small targets, such as UAV targets, balloons, birds, kites, etc. The system can be deployed on a vehicle or fixed on roof of a building.

In addition, the system can also be applied to the destruction of ammunition through the reduction of rations, it is mainly used for the disposal of unexploded ordnance (hand grenade, mortar shell, armor-piercing shell, small air bomb, etc.) in the training exercise ground and the emergency disposal of explosives in the anti-terrorism and stability-maintaining scene.


Technical Specification:

No.

Item

Parameter

1.

Laser Power

≥5KW

2.

Working Distance

≥1200m

3.

Damage distance

≥1000m

4.

Damage time

≤7~10s

5.

Target intelligent detection

Detection rate≥95%

6.

Track accuracy

≤15(RMS)

7.

Continuous light time

≥120s

8.

Power consumption

≤25KW

9.

Power supply

AC 380V/50HZ

10.

Working temp.

-20℃~+55℃

11.

Storage temp.

-30℃~+60℃

12.

Wind resistance

Max eighth-level wind

13.

MTBF

≥720h

14.

MTTR

≤30min
