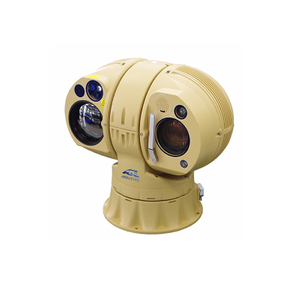

Distance High Speed Thermal Imaging Camera for Radar Linked Surveillance System

Availability:

PDF Export

  • AGT-BTVC6105-1930

Key Benefits:

  • Long range 24-hours monitoring.

  • Delicate and smooth images.

  • Convenient for installation and application.

  • 360 degree of Omni-directional Pan-Tilt

  • Super-strong aluminum alloy with IP66

  • Higher sensitivity

  • Effective in all environments

  • Small size and low weight



surveillance system with radar and camera



Overview:

  • VOx uncooled detector 640*512;

  • NETD is less than 50mk (@25℃F1.0);

  • SDE digital image processing, AGC, 2X digital amplification;

  • 10 pseudo color and B/W, B/W inverse;

  • Intelligent functions: cross-border/ intrusion detection and target tracking;

  • 255 level alarm threshold can be setup

  • Advanced algorithm support shot-point/ fire detection and alert;

  • One integral aluminum alloy housing, water proof, IP66 weather proof, anti-dust.



Applications:

  • Seaport and airport monitoring;

  • Water system monitoring;

  • Storage monitoring;

  • Oilfield & oil depot security;

  • Ecological and environmental monitoring;

  • Border and coastal defense;

  • Highways and railways monitoring.



Technical Specification:

Model

AGT-BTVC6105-1930

Detection

Vehicle: 4,200m / Human: 1,640m

Recognition

Vehicle: 1,200m / Human: 470m

                       Thermal Camera

Sensor

5th generation FPA VOx Detector

Resolution

384 × 288 pixel(optional 640 × 512 pixel)

Spectral range

7.5~14μm

NETD

50mK (@25℃ F1.0)

Focal length

50mm F1.0

Field of view(horizontal)

7.4° X 5.6°(optional 12° X 9°)

                    Visible Camera

Imaging Sensor

1/2.8'' Star Level CMOS, Integrated ICR Dual   Filter D/N Switch

Resolution

2 Mega pixels, 1920 x 1080

Illumination

0.05 Lux high sensitive color, 0.01 Lux black and   white

Video Bit Rate

32Kbps-16Mbps, 60Hz 30 frames/second, ABF auto   adjustment

Focal Length

4.5 - 135mm 30X zoom, 2 Megapixel electric focus

                   PTZ

Duty

10 kg

Rotation

Pan: 0 - 360° continuously,Tilt: +90°~- 90°

Rotation speed

Rotation speed:Pan: 0.01~100°/S,Tilt: 0.01~60°/S, support lens focusing speed adaptive

Accuracy

±0.1°

Preset

255 presets, support lens zooming and focusing   preset

Mode

Support 6 cruising line, 1 apple-skin scanning, 1   line-cruising

                   Network

Network interface

RJ45.10, 10/100 Base-T adaptive (integrated video   output RS422/485)

Network Protocol

TCP/IP, UDP, IPv4/v6; support HTTP, RTP,   RTSP, NFS, DHCP, NTP, SMTP, SNMPv1/v2c/v3, UPNP, PPPoE, DNS, FTP; support   PSIA, ONVIF2.0, GB28181 and other network protocol.

                     Environment Parameter

Operating temperature

-25℃~+60℃(-40℃ Optional)

Storage temperature

-45℃~70℃

Protection Level

IP66

                  General

Total   Consumption

50W

Power   supply

AC/DC24V, anti-reverse connection   protection

Weight

≤8.5 kg (include PTZ)
