Availability: | |
---|---|
PDF Export | |
Long range 24-hours monitoring.
Delicate and smooth images.
Convenient for installation and application.
360 degree of Omni-directional Pan-Tilt
Super-strong aluminum alloy with IP66
Higher sensitivity
Effective in all environments
Small size and low weight
VOx uncooled detector, 640*512 (384*288 );
NETD is less than 50mk (@25℃F1.0);
SDE digital image processing, AGC, 2X digital amplification;
10 pseudo color and B/W, B/W inverse;
Intelligent functions: cross-border/ intrusion detection and target tracking;
255 level alarm threshold can be setup
Advanced algorithm support shot-point/ fire detection and alert;
One integral aluminum alloy housing, water proof, IP66 weather proof, anti-dust.
Seaport and airport monitoring;
Water system monitoring;
Storage monitoring;
Military base security monitoring;
Oilfield & oil depot security;
Fire source prevention & monitoring;
Ecological and environmental monitoring;
Border and coastal defense;
Urban security and anti-UAV applications;
Highways and railways monitoring.

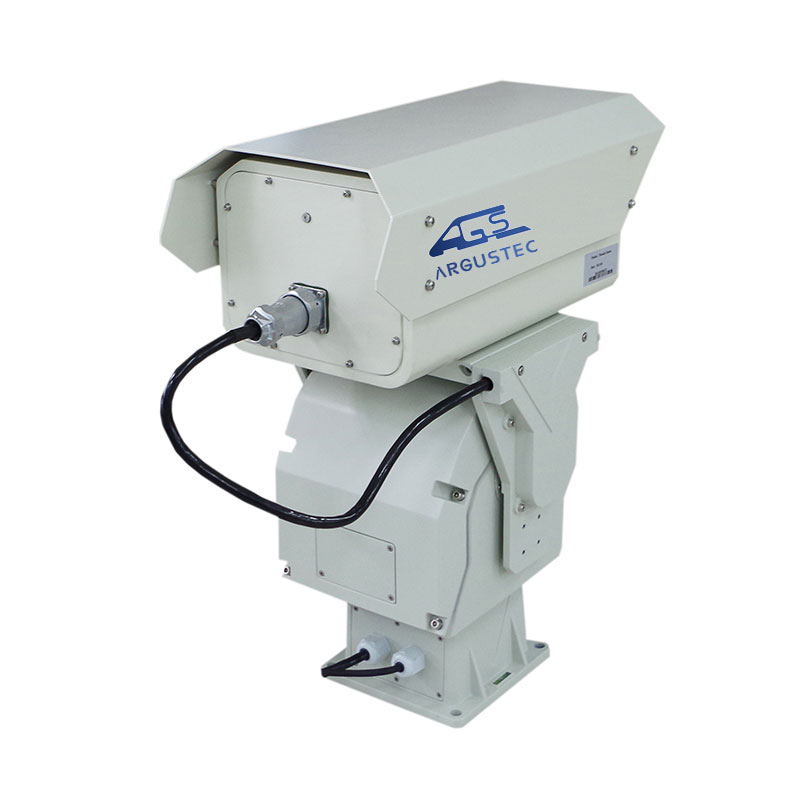

Model | AGT-TC6511 |
Detection | Vehicle: 8600m / Human: 3400m |
Identification | Vehicle: 2400m / Human: 900m |
Thermal Camera | |
Sensor | 5th generation FPA VOx Detector |
Resolution | 640 × 512 pixel (384 × 288 pixel) |
Spectral range | 7.5~14μm |
NETD | 50mK (@25℃ F1.0) |
Focal length | 21 - 105mm |
Field of view(horizontal) | 18.5° × 13.9° - 3.7° × 2.8° |
PTZ | |
Duty | 30kg CNC PT |
Rotation | Pan: 0~360°, Tilt: -45°~+45° |
Rotation speed | Pan: 0.01°~60°/S, tilt: 0.01°/S ~30°/S |
Accuracy | ±0.1° |
Preset | 255 presets, support lens zooming and focusing preset |
Mode | Support 6 cruising line, 1 apple-skin scanning, 1 line-cruising |
Network | |
Network interface | RJ45.10, 10/100 Base-T adaptive (integrated video output RS422/485) |
Network Protocol | TCP/IP, UDP, IPv4/v6; support HTTP, RTP, RTSP, NFS, DHCP, NTP, SMTP, SNMPv1/v2c/v3, UPNP, PPPoE, DNS, FTP; support PSIA, ONVIF2.0, GB28181 and other network protocol. |
Environment Parameter | |
Operating temperature | -25℃~+60℃(-40℃ Optional) |
Storage temperature | -45℃~70℃ |
Protection Level | IP66 |
General | |
Total Consumption | 180W |
Power supply | AC/DC24V, anti-reverse connection protection |
Weight | ≤25kg (include PTZ) |
