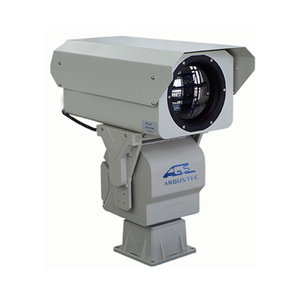

TOP Infrared Thermal Imaging Camera for Traffic

Availability:

PDF Export

  • AGT-TC121030C

Key Benefits:

AGT-TC121030C ultra-long range continuous zoom thermal imaging camera is based on the latest uncooled IR technology and continuously IR optical zoom. User could get a best imaging details with 1280×1024 resolution, advanced digital circuit and image processing algorithm. Special design of continuous zoom  lens have detection distance 18km, suit for both seeking and watching. One integral aluminum alloy housing make sure the camera IP66 sealing rates and works well in harsh outdoor conditions.

AGT-TC121030C series thermal camera integrate high sensitive FPA sensor, electronic and optical systems, could penetrate fog/dirt/rain/snow and image 24 hours.

TOP Infrared Thermal Imaging Camera


Overview:

  • NETD 50mk enhance the imaging details even in foggy/rainy/snowy weather.

  •  Unique AS+DOE optical design and 3CAM high-precision optomechanical design suit for both large-scale seeking and long-distance watching.

  • Non-uniform image correction technology, stable working temperature without TEC, good image uniformity and dynamic range. SDE digital image processing, no image noise, 10 pseudo color image and B/W switch.

  • Digital control PT, 360° continuously rotation observation, no dead corner, stable operation, small dithering.

  • One integral aluminum alloy housing, weatherproof IP 66, waterproof, anti-dust.

Applications:

Oilfield safety, railway&freeway security, river&airport security, forest fire prevention, city safety.


Technical Specification:

Model

AGT-TC121030C

Detection

Vehicle: 18000m


Human: 8000m

Recognition

Vehicle: 6000m


Human: 3000m

Sensor

1、Detector:5th generation UFPA Vox Detector ;

2、Resolution:1280×1024

3、NETD:50mK(@25℃ F1.0)

4、Spectral range:12μm

NETD

50mK(@25℃ F1.0)

Focal length

1、Length: 30~300mm

2、FOV:29.3°×23.5°~2.9°×2.3°

3、optical zoom, auto focus ;

4、AS+DOE advanced optical design, high infrared transmission;

5、Applied 3CAM high precision design;

IFOV

0.04~0.4mrad

Image processing


2. SDE digital image processing

3. 10 pseudo color and B/W, B/W inverse

4. AGC

5. 1-8X continuous digital amplification,Optical electronic relay zoom

Housing

1、Material:aluminum alloy housing,waterproof;

2、Structure:Integral single window design ;

3、Surface:PTA coating, anti sea water corrosion;

4、Sealing rate:IP66

5、Built-in temperature controller,thermal balance design;

6、Interface:aviation waterproof connector ;

PTZ(optional)

1、Load:50kg military level digital PT ;

2、Angle:pan 0~360°,tilt -45°~+45°

3、Speed:0.01~30°/S high precision variable speed control and locking ;

4、Preset:80 presets,support lens zoom and focus memory,variable speed scanning 0~30°/S ,support apple peel scanning function;

Consumption ,weight

1、Consumption(PT included):min.40W,max.120W

2、weight(PT included):≤45kg

Interface

1. RJ45 interface

2. Remote OSD setting

3. PAL/NTSC video output

4.AC/DC24V, anti-reverse connection protection

5. Waterproof connector

Environment indicator

1、Working temperature:-25℃~+55℃(-40℃ optional)

2、Storage temperature:-35℃~+75℃

3、Humidity:<90%

4、Anti-shock:0.2g(GB/T15211—20135.4 harshest level 2 standard)

5、Anti-resistance:15g(GB/T15211—20135.3 harshest level 3 standard)

6、Anti-lightening:power 4000V,signal 2000V

7、Anti salty:PH6.5~7.2,continuous sprarying 48 hours ;

8、Protection rate:IP66
