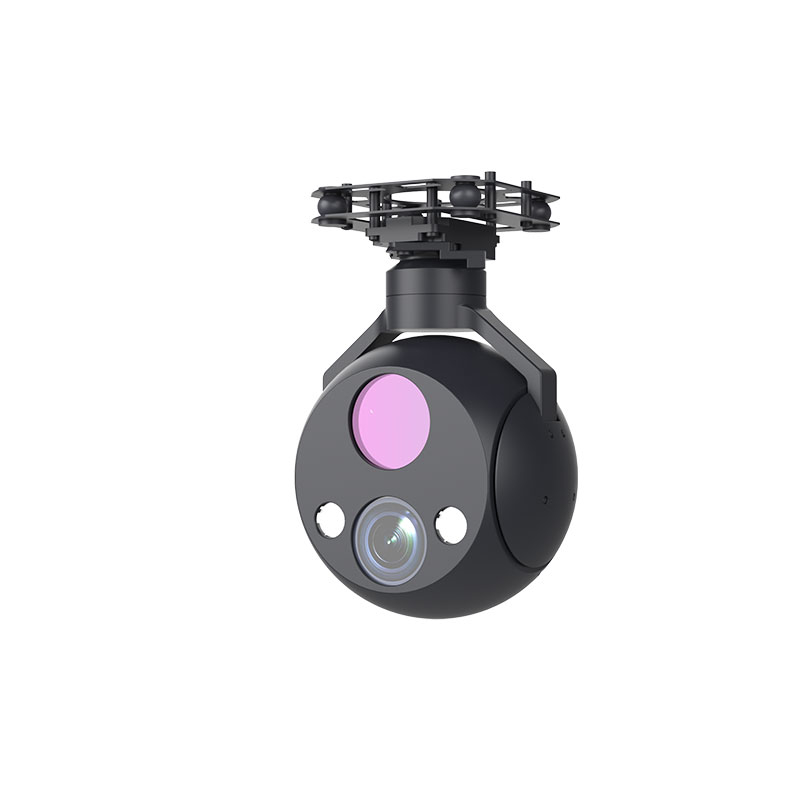

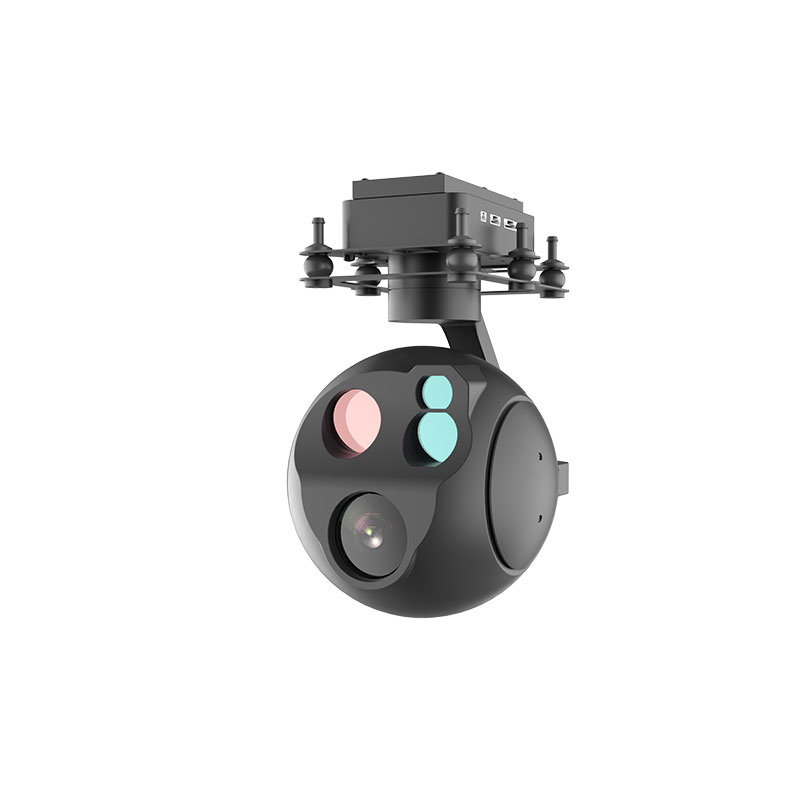

Drone Camera Multi-sensor Three-axis Targeting System

Availability:

PDF Export

  • AGT-DC130P

Key Benefits:

  • Advanced image processing algorithms can provide clear images with high temperature resolution, clear outlines and wide dynamic range, reflecting subtle temperature differences and making the target clear at a glance;

  • 4x digital zoom, 8 colors,stronger adaptability to scenarios;

  • Rich OSD information, real-time display of running status, safer, more reliable and more convenient operation;

  • 30x optical zoom, collect images from a long distance, more secure;

  • 1080p image compression storage, with 32G capacity memory card, make the image capture ability stronger;

  • Three modes of locking the head direction, weak follower head direction and the lens vertically downward. The three modes can be switched at will, making it more convenient to use.

long range night vision camera


Overview:

It consists 2km range finder with ±1m accuracy ,640×512 thermal camera,30X HD optical camera ,high stability and precision platform frame.It can excellently complete industrial application tasks such as inspection, security and search and rescue, and can collect images from a long distance and locate points of interest targets at both day and night.1080P full HD video can output visible light and infrared video in real time.


Applications:

Robots, drones, manned aircraft and other platforms.


Technical Specification:

Model

AGT-DC130P



Thermal Camera

Sensor

VOX

Resolution

640×512

Lens

35mm

Fov

12°×10°(±5%)

Color

8

Digital zoom

×2,×4,×8

Image storage

.jpg

Video storage

.avi

Visible Light Camera

Resolution

1920×1080

Lens

4.3mm~129mm

Fov

63.7°~2.3°

Optical zoom

30x

Defog

support

Image storage

.jpg

Video storage

.avi

Laser Range Finder

Wavelength

1540um

Max work distance

2.0km

Accuracy

±1m(for detect 1Km)

Servo platform

X-axis

360°×n

Y-axis

-120°~+90°

Z-axis

-60°~+60°

System value

Start time

≤30s

Power

DC20V~36V or 12V

Consumption

Common consumption ≤ 25W

Weight

≤1.2Kg

Size

≤131mm×155mm×208mm

Accuracy

≤30m(300m)

Interface

Control

RS422/RS232/S.BUS

Video

HDMI/SDI/Synchronous 422/100M network

Storage

Mini SD card/32G

Environment indicators

Work temp

-20℃~+50℃(-40℃ for option)

Storage temp

-40℃~+60℃

IP grade

Can work in moderate rain
