AGT-DMA351-TVC
Argustec

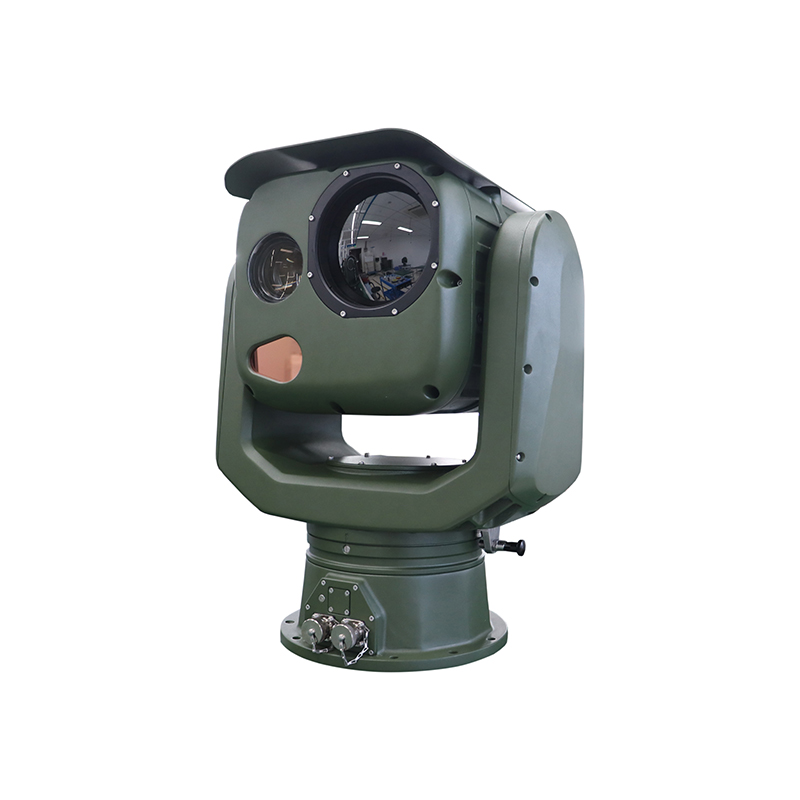

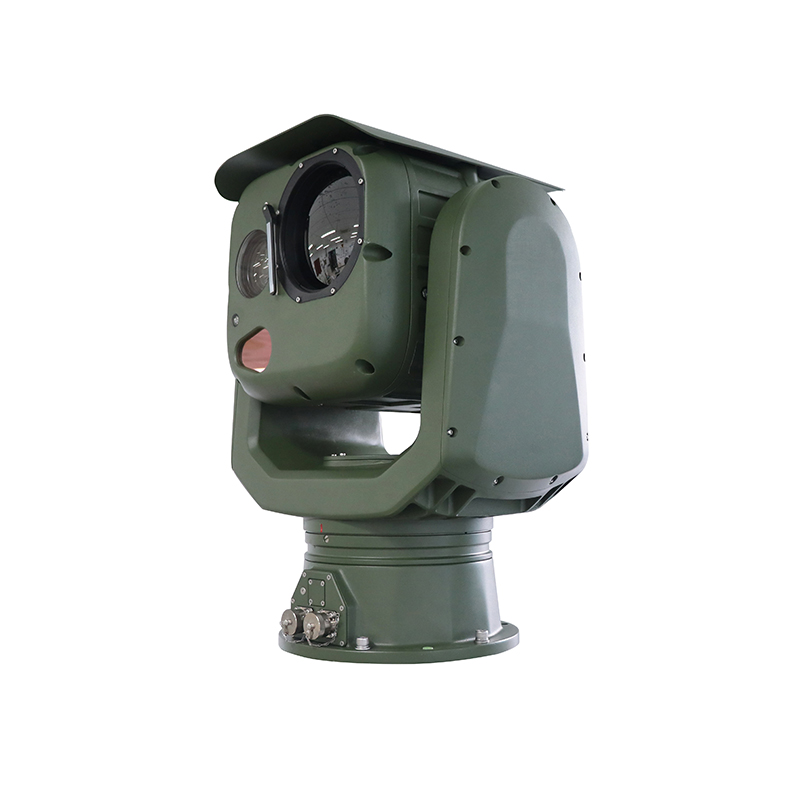

AGT-DMA35BLIE--TVC6516-2150-LRF10K heavy-duty dual-band photoelectric turntable is a long-range photoelectric detection system independently developed, which can integrate multi-spectrum detection modules such as high-definition visible camera, Un-cooled thermal imaging, etc. , laser ranging and other modules can be installed as needed to realize the functions of all-weather, all-time, all-dimensional detection, location, tracking, identification and tracking of targets, the utility model can be widely applied to the three-dimensional security prevention of key areas and key targets such as border and coastal defense, military bases, airports, harbors, nuclear, biological and chemical facilities, Vehicle-mounted applications, boat-mounted applications etc. .
The product adopts spherical design, strong wind resistance, low stirring, stable and clear imaging; it adopts up and down split structure design, can be packed and transported independently, and disperses the whole machine weight, it greatly improves the product transport ability under the complex terrain environment; the use of Modular design, according to customer requirements, flexible collocation of detection channels, flexible selection of optical configuration, in order to meet the requirements of detection, identification and identification under various weather conditions such as full black and fog, rain, snow, etc. , the ball bin can be filled with nitrogen up to IP67 protection level, and can work reliably in the harsh environment in the field for a long time.
Strong load capacity: it can support large magnification visible light camera, large aperture refrigeration thermal imager, to achieve ultra-long-range target observation;
Detection spectrum width: integration of high-definition visible light, medium-wave thermal imaging, dual-band detection advantages complement each other, combining active and passive detection, multi-source data fusion processing, so that the target can not hide, to meet the day and night, all-weather environment monitoring needs;
Strong load capacity: it can support large magnification visible light camera, large aperture refrigeration thermal imager, to achieve ultra-long-range target observation;
Detection spectrum width: integration of high-definition visible light, medium-wave thermal imaging, dual-band detection advantages complement each other, combining active and passive detection, multi-source data fusion processing, so that the target can not hide, to meet the day and night, all-weather environment monitoring needs;
Fast turning speed: the speed of rotation is up to 80 °/s, the acceleration is up to 100 °/s 2, the start-stop is quick, the operation is smooth, it is helpful to capture and track the moving target quickly;
Wide coverage: azimuth rotation range 0 ° ~ 360 °, pitch rotation range -90 ° ~ + 90 °, to achieve non-dead angle detection, full-dimensional coverage;
High control precision: the precision angle encoder with high-precision closed-loop servo control system, positioning accuracy up to 0.02 °, high-performance image processing unit with high-precision focusing control mechanism, to achieve accurate automatic focusing;
Excellent tracking performance: automatic tracking module designed by using advanced target acquisition algorithm and tracking algorithm, assisted by high precision servo control, tracking accuracy up to ± 0.5 mrad, make sure the target can be tracked stably in the course of fast flying and changing direction
High degree of Intelligence: with the background management software developed by General Self, easy to achieve hot alarm, area intrusion alarm, cross-border intrusion alarm, target tracking, long-range small target recognition, radar linkage, panoramic mosaic, 3D zoom positioning and other functions, has promoted the system the unmanned, the automation, the information level greatly;
Multiple redundant protection: internal temperature monitoring, directional industrial defroster, enhance the reliability of the system;
Environment Adaptability: the nitrogen-filled ball Silo can reach IP67 protection grade, the shell is sprayed with high performance anti-corrosion paint, and the high anti-corrosion connector is selected to ensure the product can run stably in the field for a long time.
Border/Costal defense, harbor, oil field, river lane, airport, safe city
Model | AGT-DMA35BLIE-TVC6516-2150-LRF10K |
Thermal Camera | 1. Detector: 5th generation FPAVOx uncooled detector 2. Wavelength: 7.5～14 μm 3. NETD: 40mK 4. 31 ~ 155mm, 5x continuous optical zoom 5. Lens control: Electric Zoom; Manual/auto focus, 3A adaptive active focus algorithm, support multiple trigger modes, accurate and high speed; 3CAM mode and AS + DOE optical structure, high infrared transmittance, the zoom process has no virtual focus and the axis is small 6. Image Enhancement: SDE Digital Image Enhancement Technology, enhance image details, support 255 level thermal image enhancement adjustment 7. Pseudo-color polarity: 16 pseudo-color images, hot black/hot white polarity 8. Image parameters: AGC automatic gain control, brightness, contrast adjustment 9. Electron doubling: 1.0 ~ 8.0 × continuous doubling (step length 0. 1) , supporting optical electron relay doubling, supporting global hawk-eye diagram 10. Bad Correction: support for bad correction 11. Image Correction: support manual correction, background correction, automatic correction time interval, Gamma correction parameters adjustable 12. Bright Light Protection: supports protection against Sun Damage 13. Detector Array: 640 × 512 14. Field of view: 20 。 × 15 。～4 。 ×3。 |
Detection Distance (Thermal) | Small boat(2.3×2.3m):13km Human(1.8×0.5m): 4.8km |
Recognition Distance (Thermal) | Small boat(2.3×2.3m):3.4km Human(1.8×0.5m): 1.3km |
Identification Distance (Thermal) | Small boat(2.3×2.3m):1.7km Human(1.8×0.5m): 0.6km |
Day Camera | 1. Sensor type: backlit ultra-low illumination star-level CMOS 2. Minimum illuminance: Color: 0.0005 lux; black and white: 0.0001 lux; 0 Lux (IRON) 3. Lens: 8 ～ 500mm 62x continuous optical zoom, Mega HD electric zoom; Manual/auto focus, 3A adaptive active focus algorithm, support multiple trigger modes, accurate and high speed. 4. Image Processing: support for white balance, electronic shutter, frame accumulation, backlight compensation, strong light suppression, 2D/3D digital noise reduction, electronic anti-shake, wide dynamic, heat wave drift suppression. 5. Day-night type pass light: 0.4-0.75 um visible broad spectral window and 0.8-0.95 um near infrared spectral window 6. Pixel:1920×1280 Support electronic transmission fog, optical transmission fog |
