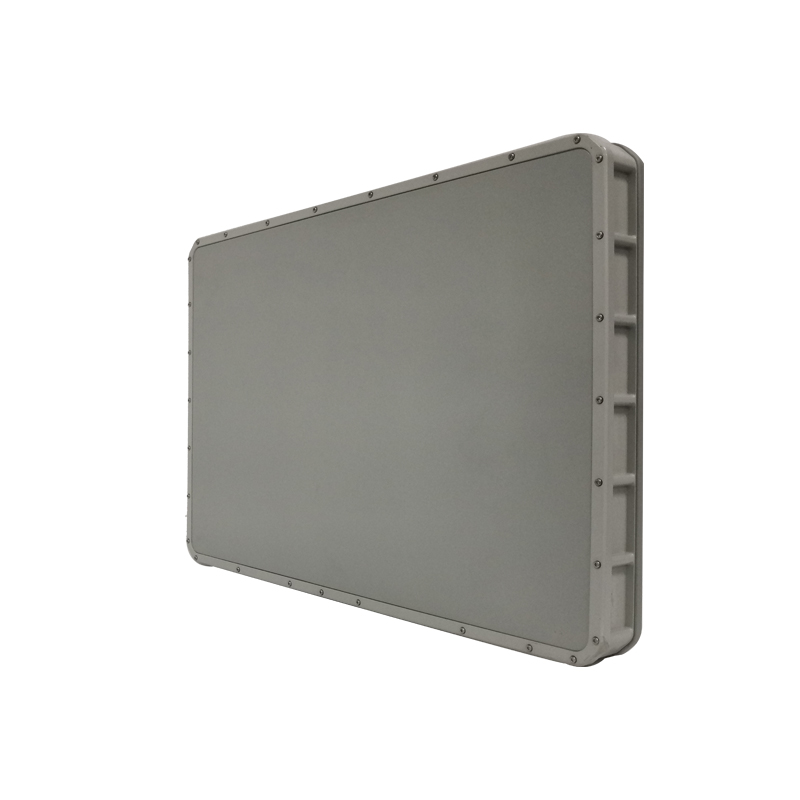

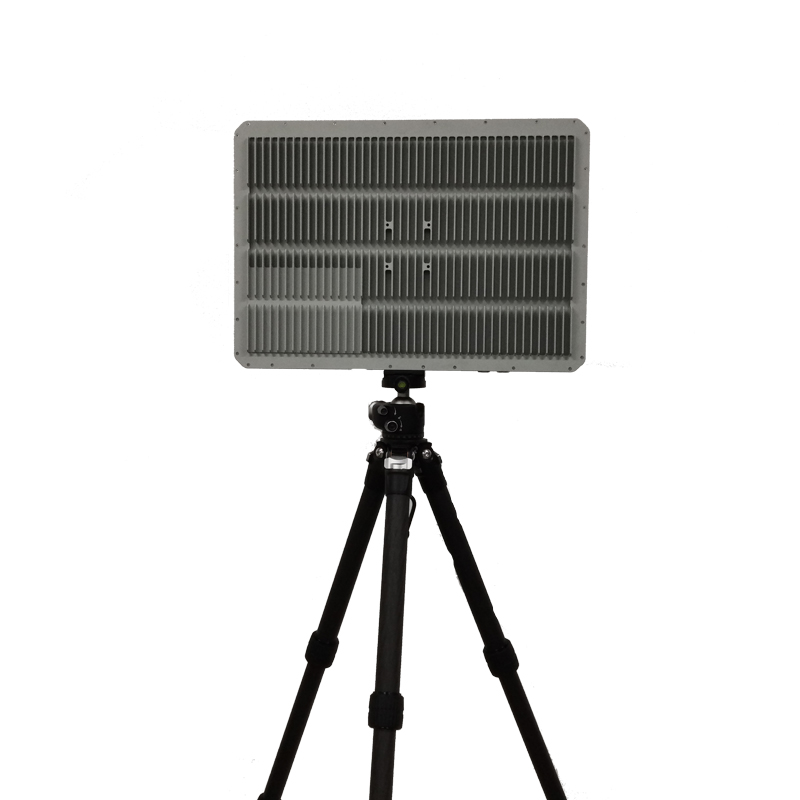

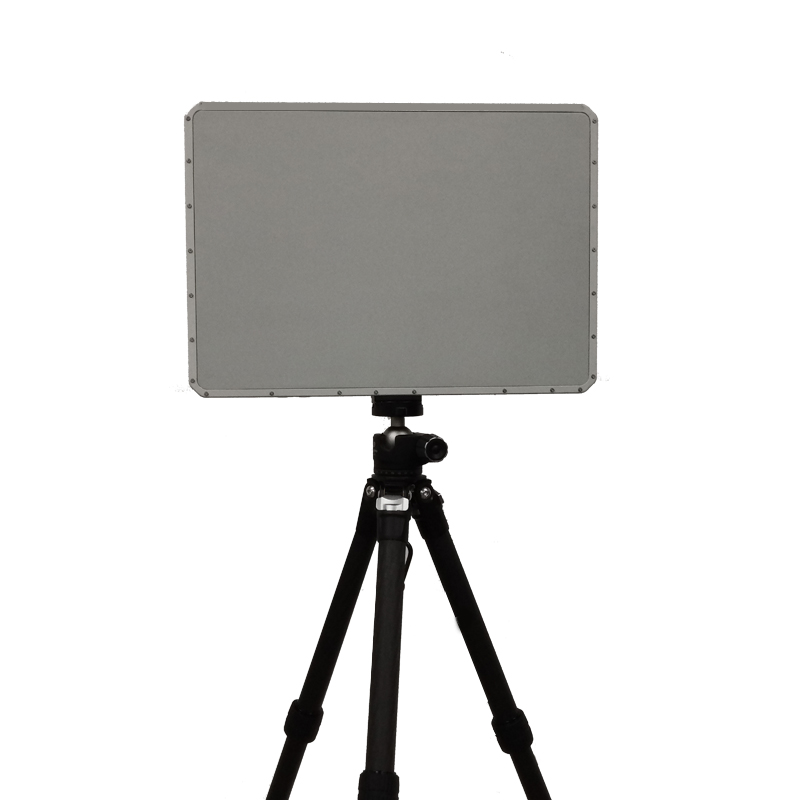

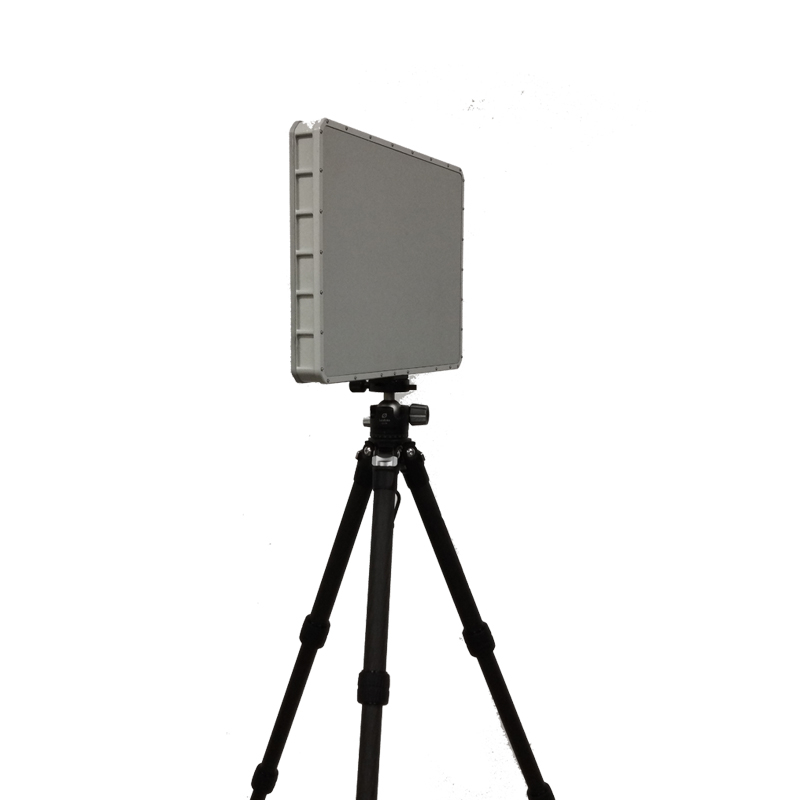

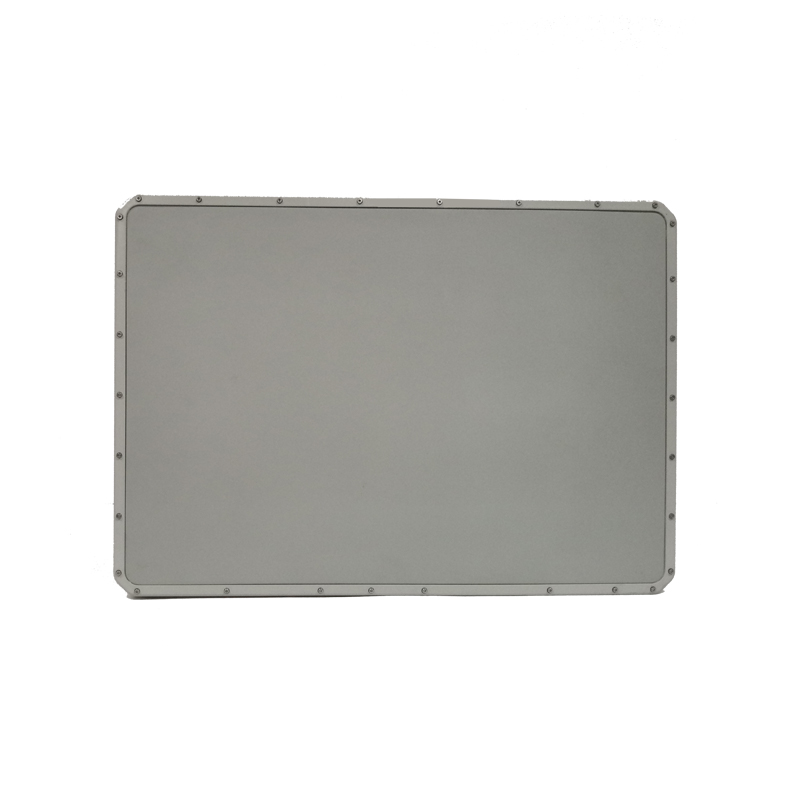

Moving Target Surveillance Radar

Availability:

PDF Export

  • AGT-2D-RD7500KU

  • Argustec

Key Benefits:

  • Ultra-low false alarm rate

  • Excellent tracking performance under the condition of dense target

  • High detection accuracy

  • Small size, light weight

  • Simultaneous track more than 100 targets

  • 2D radar with azimuth coverage of 90°

  • Operated locally or remotely

  • Independent operation or combination with other radars to achieve 360 ° coverage

  • Ethernet LAN communication (wire or wireless)

  • Active Phased Array

  • Digital Pulse Compression

  • High reliability - full solid-state design


Application:

  • Land Border Surveillance

  • Sea Surface Surveillance

    Fortress Protection

  • Battlefield reconnaissance

Overview:

AGT-2D-RD7500KU moving target surveillance radar is designed to detect and track moving targets, including various low RCS and slow moving targets such as pedestrian, vehicles, and vessels. The radar adopts the active phased array and digital pulse compression system, providing accurate target detection, measurement ,and tracking.

With adaptive clutter suppression technology, the radar can effectively filtering out false positives caused by environmental clutter such as trees, crops, clouds, rainwater, and waves.

With multidimensional and multi feature tracking technology, the radar can simultaneously track over 100 targets, with extremely low probability of false tracking in dense target conditions, providing users with accurate information.

The distance accuracy is better than 5 meters, and the azimuth accuracy is better than 0.25°, making it convenient for information fusion with other devices.

The volume and weight of radar are much smaller than similar products. In addition to facilitating transportation and installation, it makes it possible for one person to carry and operate.


Technical Specification:

Model

AGT-2D-RD7500KU

Frequency

Ku Band

Frequency hopping number

8



Detection range

≥ 7.5kmhuman

Ø≥ 12kmsmall vehicles

≥ 20km( ships

Radial velocity range

0.4m/s-60m/s



Update Rate:



1.2s

Distance accuracy

≤ 5m

Azimuth accuracy

≤ 0.25°

Velocity accuracy

Ø≤ ± 0.1m/s ± 2%



Azimuth coverage

Ø90 °



Simultaneous tracked targets

≥100

Weight

≤ 5kg

Power consumption

≤ 80W



Power supply range

ØDC 18-28V



Working temperature

-40~+55 ℃



Communication interface

ØGigabit Ethernet



Protection level

IP67



Size((H x W x D)

425 * 300 * 48mm
