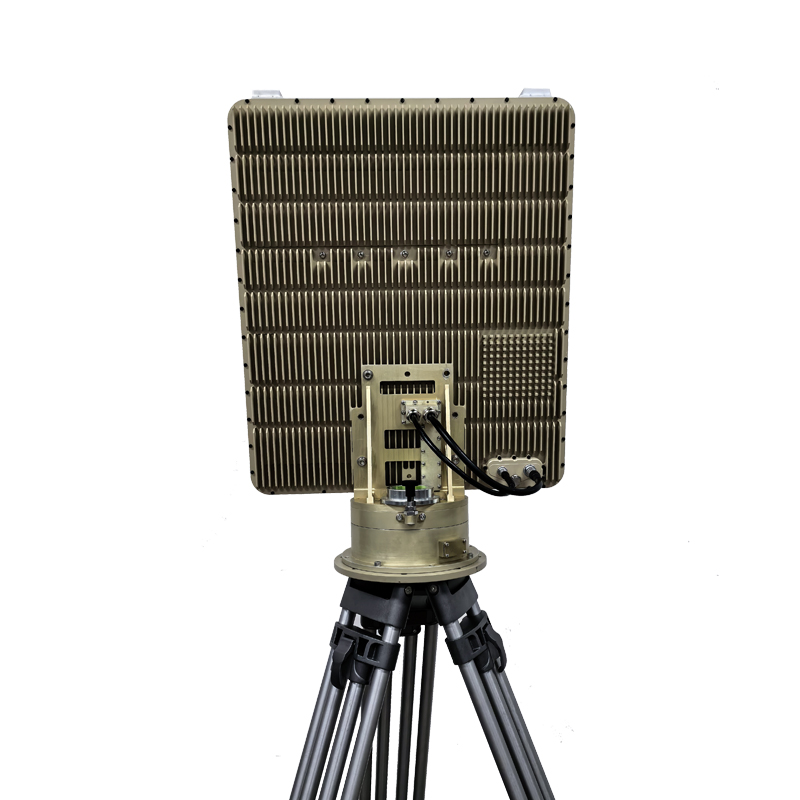

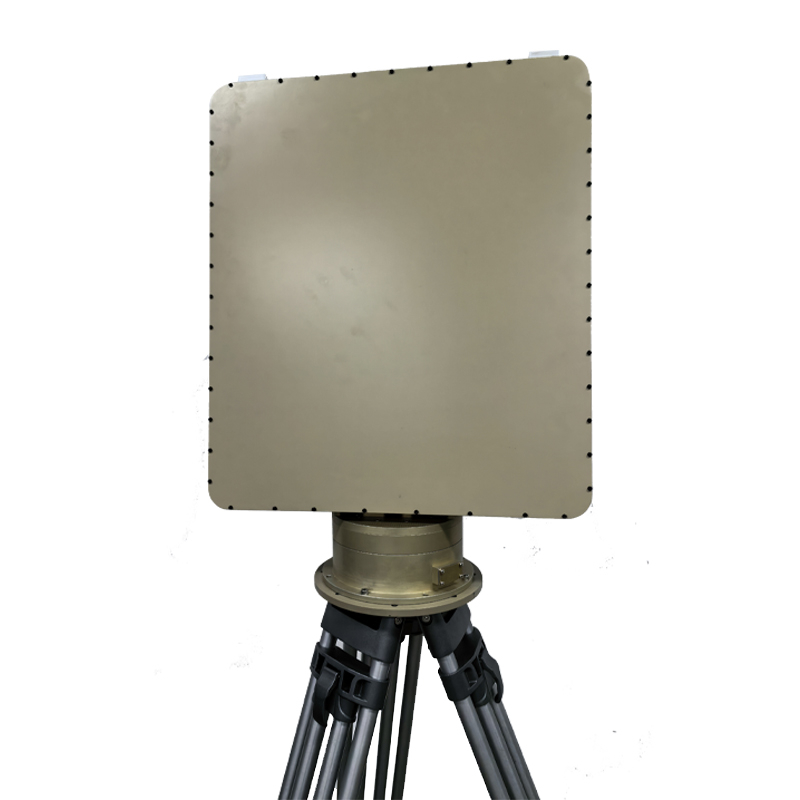

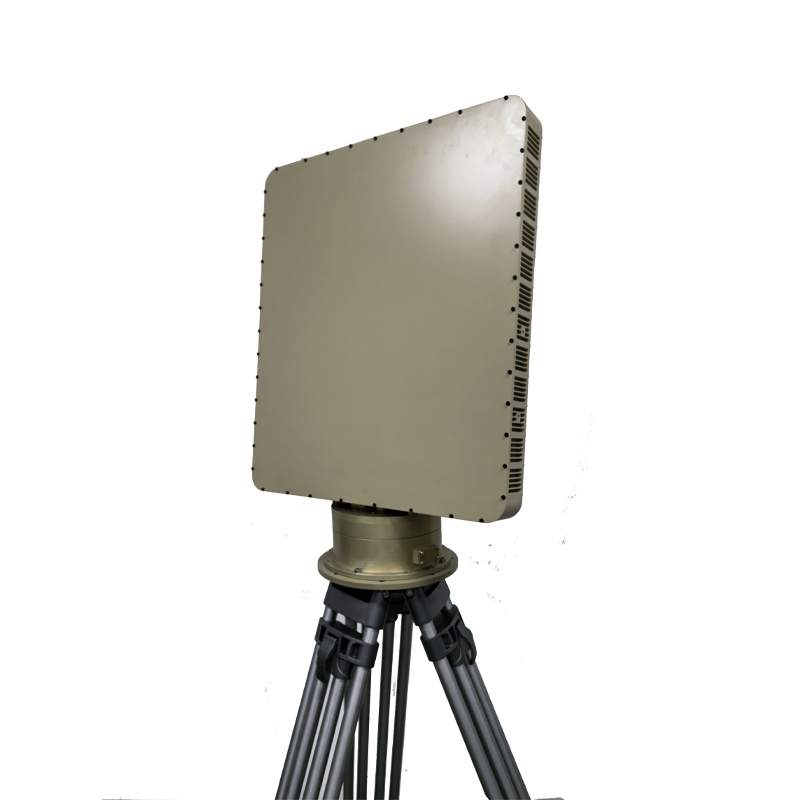

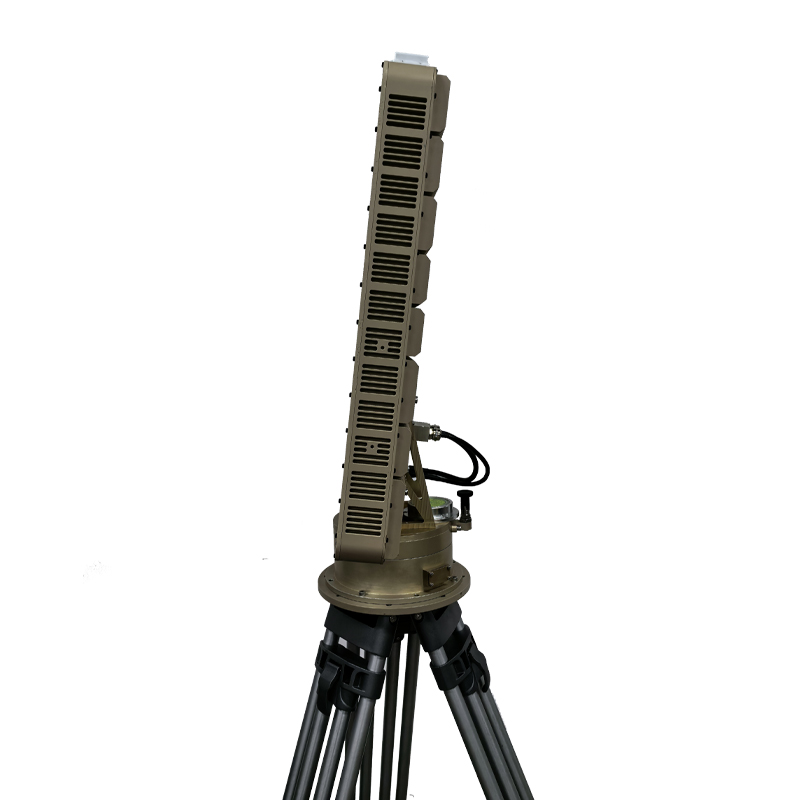

Low-Altitude Board Security Surveillance Radar

Availability:

PDF Export

  • AGT-3D-RD5000X

  • Argustec

Overview:

AGT-3D-RD5000X three coordinate surveillance radar is mainly used in low altitude and ground surveillance,the radar adopts DBF technology, therefore it has the characteristics of low equivalent omnidirectional radiation power and high search data rate. The radar adopts adaptive clutter suppression technology and TBD technology. The false alarm rate is extremely low, and it can automatically track over 150 targets, outputting high-precision position information.


Key Benefits:

  • Three-coordinate system, azimuth coverage 360°, elevation coverage > 30°;

  • Coordinate and speed information indicating the moving target in the radar field of view;

  • Automatically indicating the trajectory of the target;

  • With clutter filtering function, the false alarm rate is very low under the conditions of ground clutter, water clutter and

meteorological clutter.



Technical Specification:

Model

AGT-3D-RD5000X

Operating frequency

10.4 10.6GHz

Frequency hopping number

4

Coverage

360°

Elevation coverage

-5°30°

Height coverage:

≥800 m



Detection range

≥5km (Phantom 4 UAV),

≥8km (personnel)

≥10km (vehicle)

Angle measurement accuracy

azimuth≤0.4° (RMS)

elevation≤0.4° (RMS)

Ranging accuracy

≤5m (RMS)

Blind area

≤50m

Antenna rotation speed

180°/s

Target capacity

≥150

Detection speed range

1 100m/s

Operating temperature

-40 ~ +55℃

Power supply

DC48V or AC220V

Power consumption

≤200W
