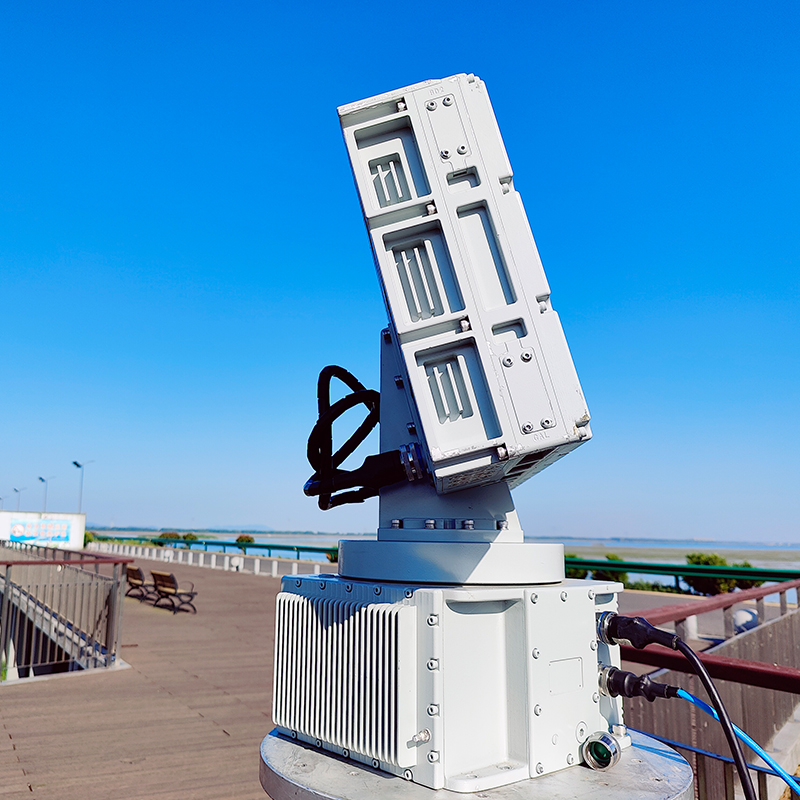

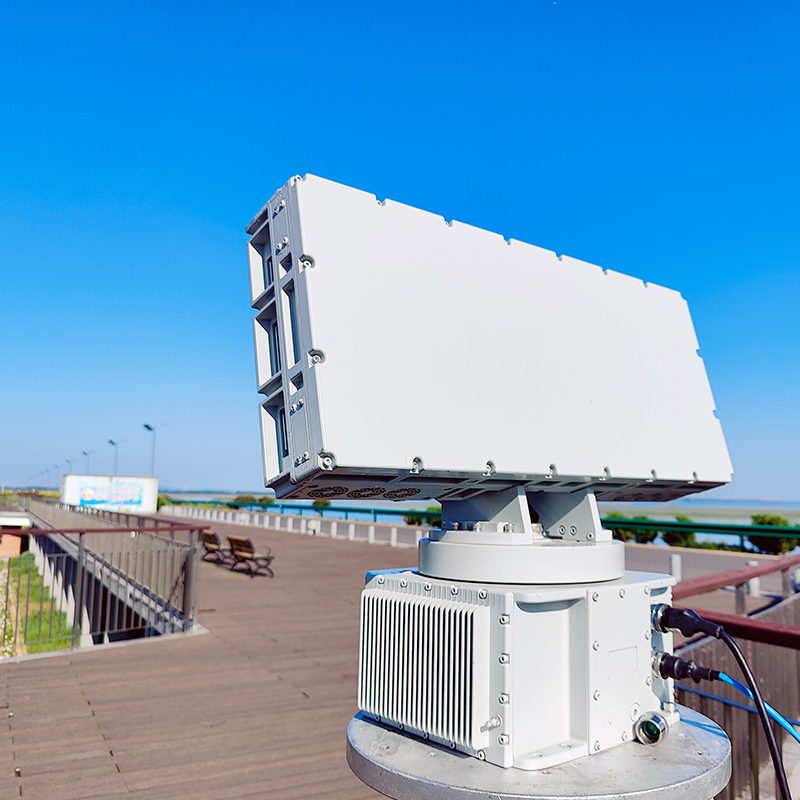

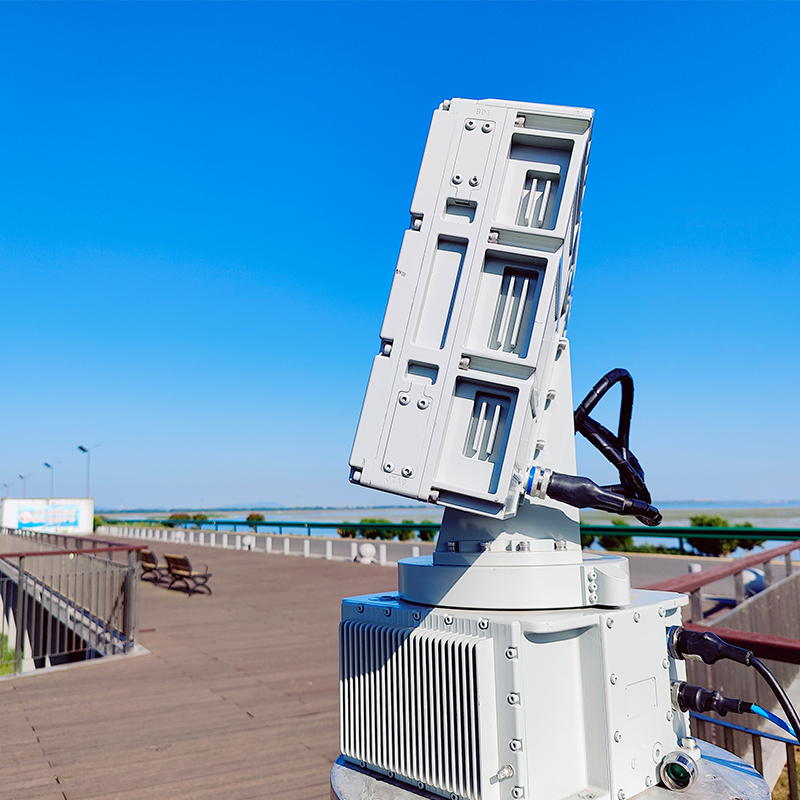

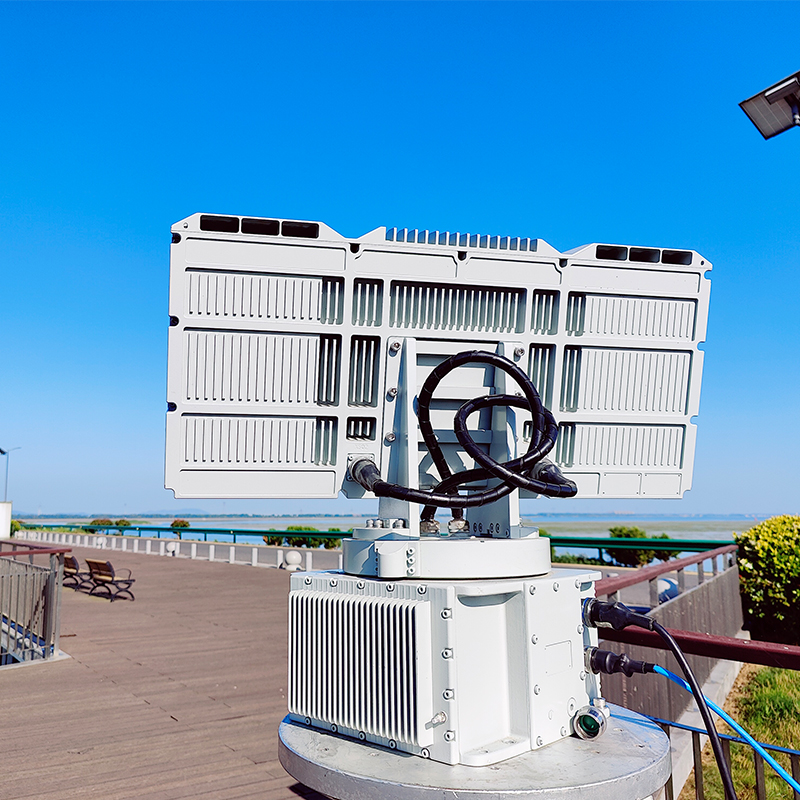

Low Altitude Target Surveillance Radar

Availability:

PDF Export

  • AGT-3D-RD6000KU

  • Argustec

Overview:

AGT-3D-RD6000KU The type radar adopts an advanced one-dimensional simultaneous multi-beam system based on DBF, and has the ability to detect a variety of aircraft such as multi-rotator UAVs, fixed-wing UAVs, cruisers, swarms, hot air balloons, airships, power parachutes, bionic birds, etc., and obtain the position of the target (distance, orientation, pitch, longitude, latitude, height) in real time. Etc.), motion posture (speed), echo intensity, RCS, target type and other multi-dimensional information, In addition, this product reserves an input interface protocol to facilitate remote control or the construction of radar network.



Technical Specification:



Model

AGT-3D-RD6000KU

Working frequency band

Ku



Beam scanning method

Pitch multiple beams at the same time

Azith mechanical scanning

Detection distance

6km (RCS=0.01m2)

Blind zone distance

≤ 150m

Coverage

360°

Pitch coverage

≥60°

Speed measurement range (radial)

1m/s ~ 150m/s

Distance measurement accuracy

≤ 7.5m

Ambital measurement accuracy

≤ 0.3°

Accuracy of pitch measurement

≤ 0.3°

Data rate

2s

The number of targets detected at the same time

≥ 500 batches

Weight

 50kg

Storage temperature range

-45℃ ~ 65℃

Working temperature range

-40℃ ~ 65℃

Maximum working humidity

95%@40℃

Waterproof and moisture-proof level

IP66

Communication transmission protocol

UDP
