Surveillance Radar for Drone Detection

Availability:

PDF Export

  • AGT-3D-RD10000XLK

  • Argustec

Overview:

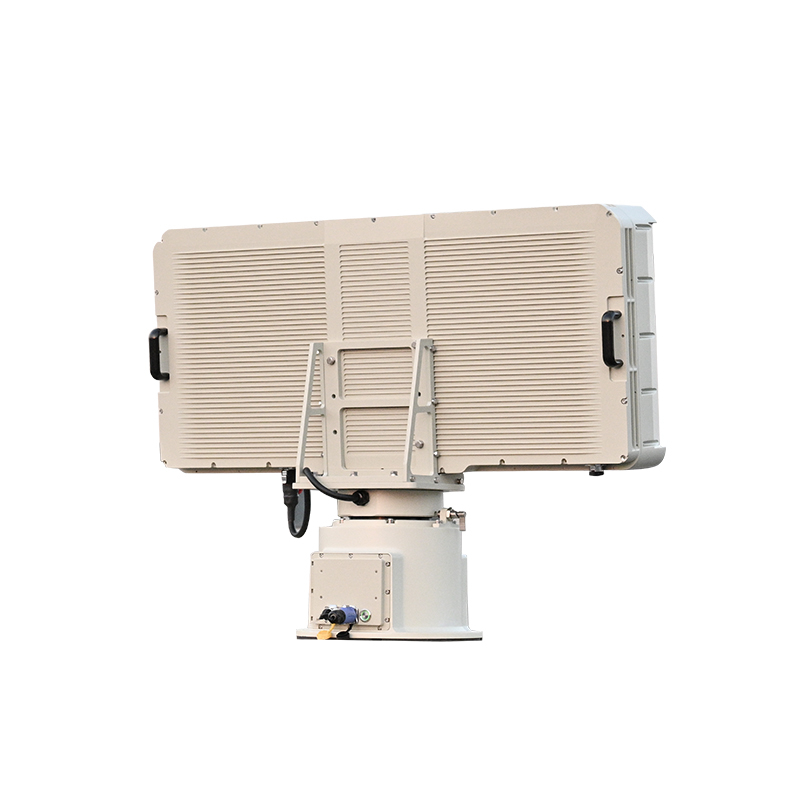

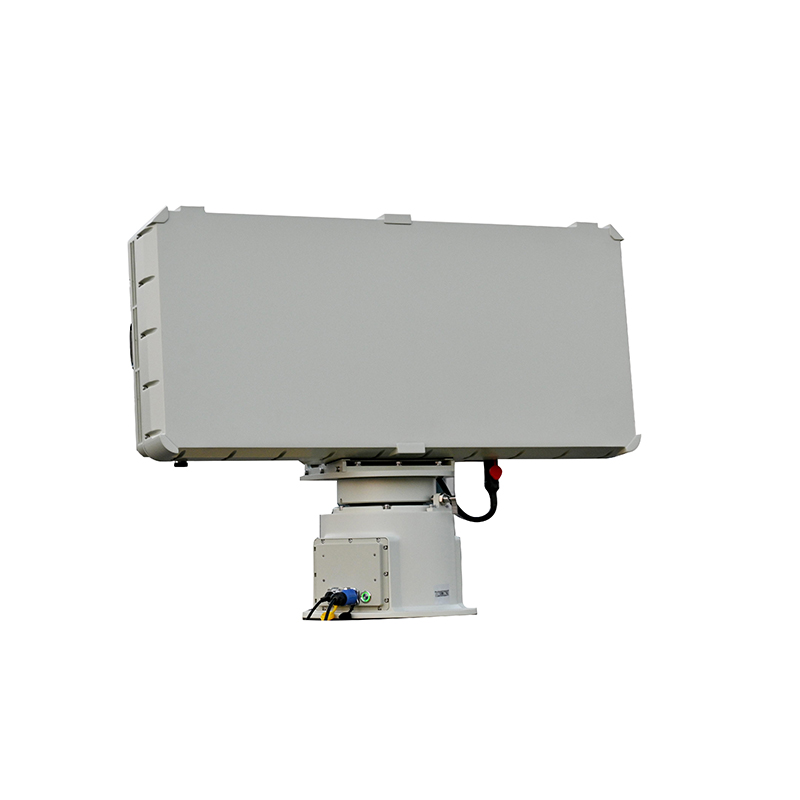

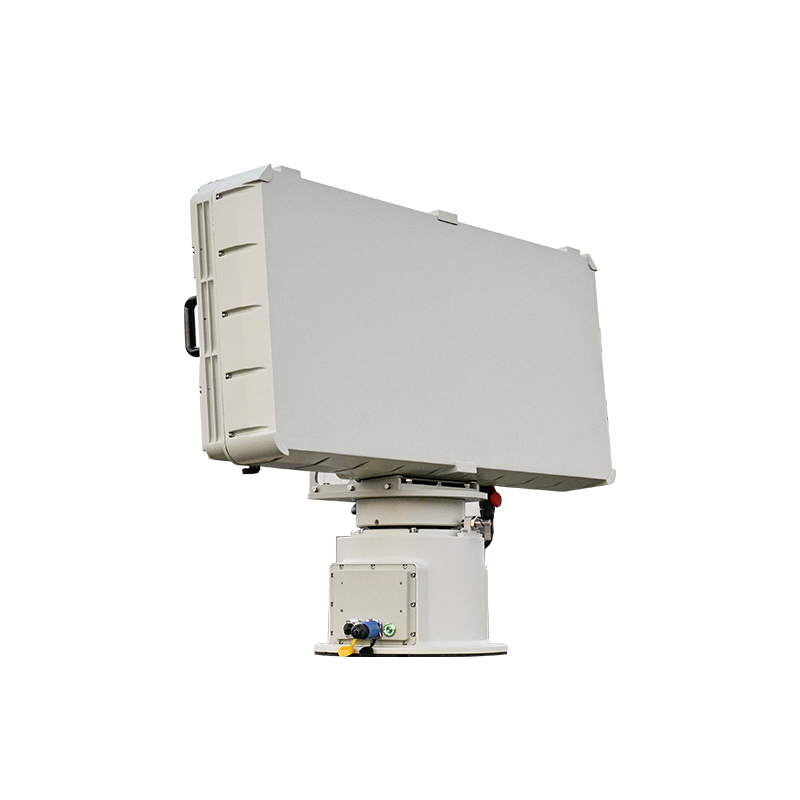

AGT-3D-RD10000XLK three coordinate surveillance radar is is mainly composed of one radar array, one mechanical turntable, and one power adapter. It is used for the detection, surveillance, and target indication of micro/small civilian drones in key areas such as borders, perimeters, and military bases. It can accurately provide trajectory information such as target orientation, distance, altitude, and speed.

Key Benefits:

  • Maintain high-precision tracking for long-distance detection targets.

  • Long range detection of targets, easy installation.

  • DBF technology can improve anti-interference ability by transmitting multi beam technology.

  • Adopting advanced active phased array system to improve radar detection effect and output target coordinate information.



Technical Specification:

Model

AGT-3D-RD10000XLK

Working frequency band

S Band

Beam scanning method

Phased array system

(azimuth-scanning+elevation-scanning)

pulse Doppler

Detection distance

≥10km (Phantom 4 UAV)

Blind zone distance

≤100m

Coverage

360°

Pitch coverage

≥40°

Angle measurement accuracy

azimuth≤0.5° (RMS),

elevation≤1° (RMS)

Ranging accuracy

≤10m (RMS)

Data rate

≥0.2Hz

Target capacity

≥500

Detection speed range

1~85m/s

Operating temperature

-40 ~ +55℃

Protection class

IP66

Weight

≤60 kg

Power supply

DC48V or AC220V

Power consumption

≤250W
