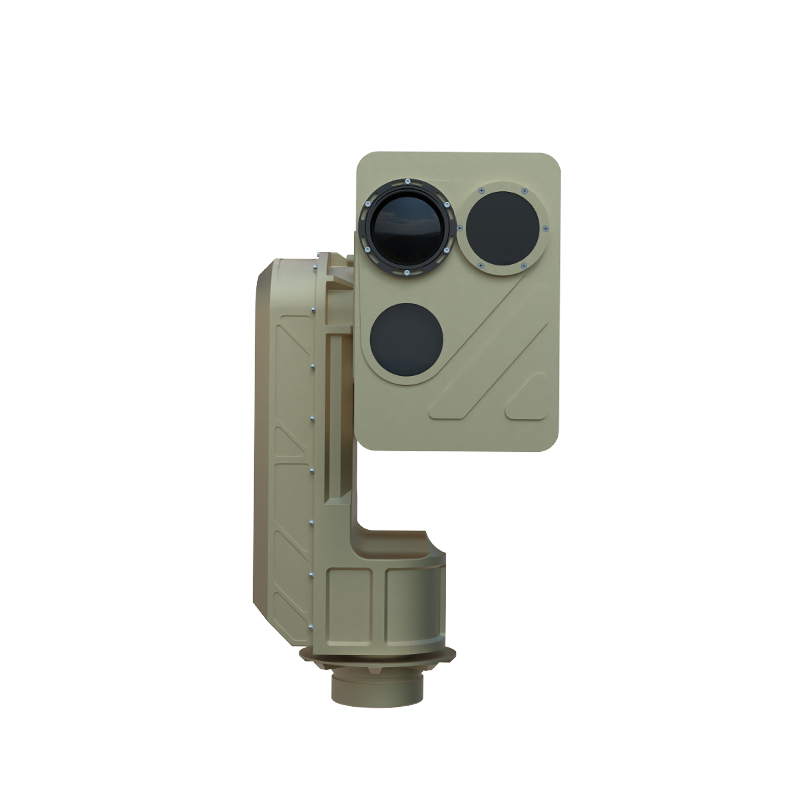

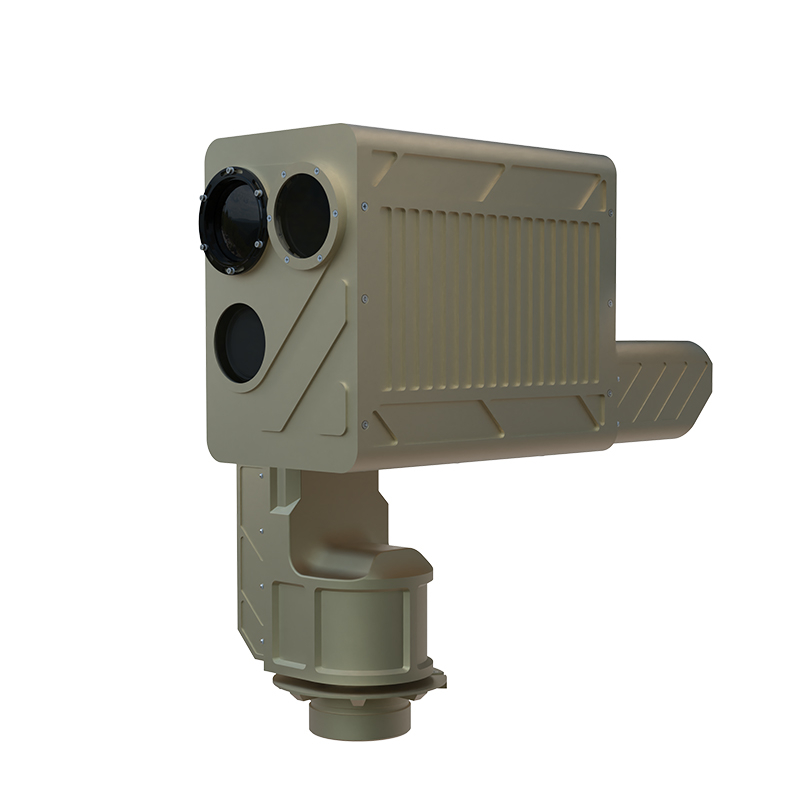

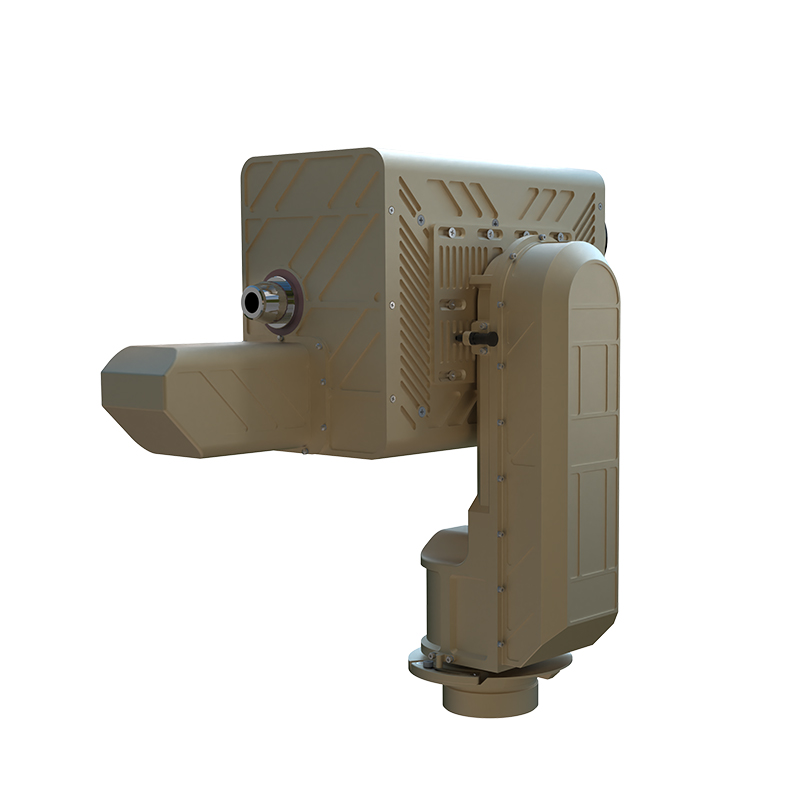

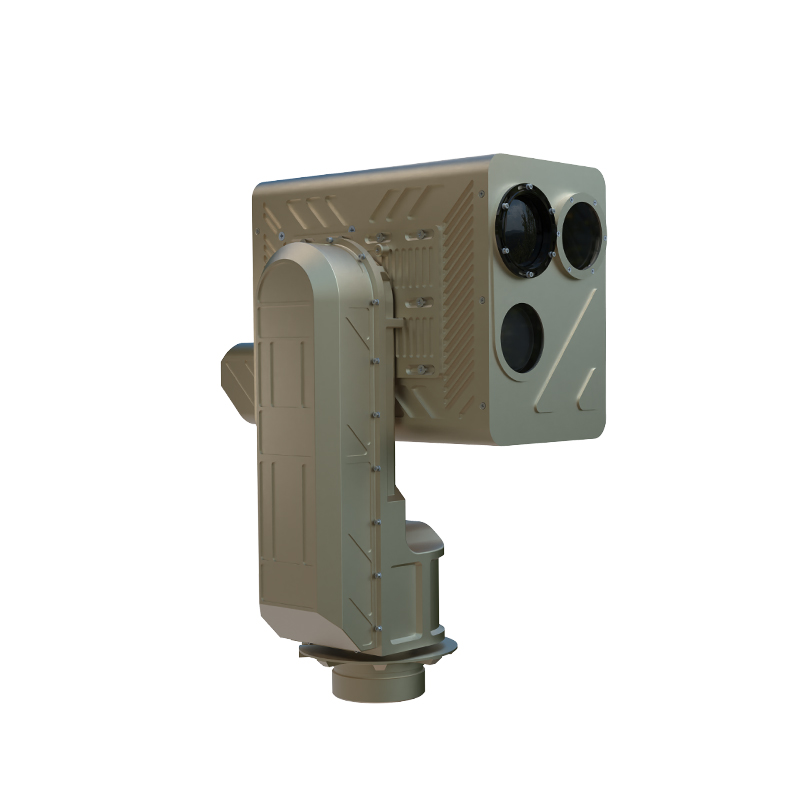

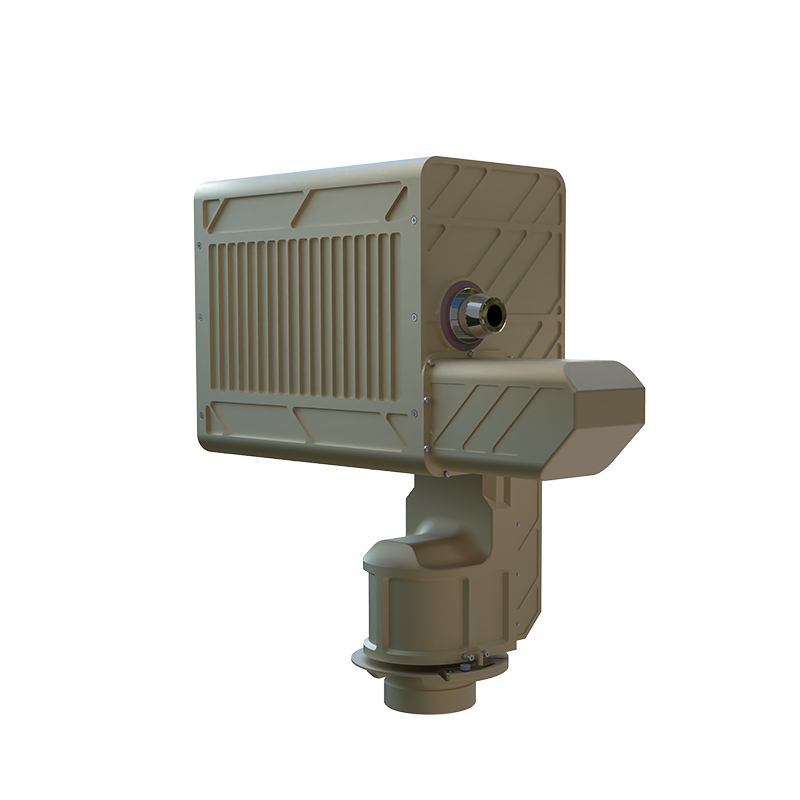

Lightweight laser jamming interception system

Availability:

PDF Export

  • AGT-RJH2000

  • Argustec

Introduction:

The lightweight laser jamming interception system is mainly aimed at small drone targets, completing the physical interception of threat targets in the protected airspace, and the optoelectronic jamming to prevent small drones from conducting reconnaissance and "suicide" attacks. It adopts a miniaturized and modular design approach, which can be quickly moved, deployed and set up for use.

Technical Specification:


Model

HP-RJH2000

Tracking system

Laser power

≥2000W

Maximum treatment time

200s/battery powered (10-15 seconds working, 30-60 seconds resting)

Treatment range

50m~300m(DJI Phantom 4)

Tracking accuracy

≤25urad

Visible light tracking

Sensor

1'' progressive scan CMOS

Resolution

2048 × 2048

Sensor size

11.26 mm × 11.26 mm

Pixel size

5.5 μm × 5.5 μm

Focal length

500mm

Field of view

0.3°× 0.3°

Thermal imaging tracking

Detector type

uncooled Vox

Pixel size

12μm

Resolution

640 × 512

Spectral range

8~14μm

NETD

≤40mK@F1.0,300K

Focal length

60mm

Field of view

7.3°× 5.5°

Spatial resolution

0.2mrad

Digital zoom

1×/2×/3×/4×

False color

White hot/Black hot/Rainbow/Iron red/Lava/Sky/Purple orange/Gradual red/Gradual green/Gradual blue

Image processing

Non-uniformity correction/digital filtering noise reduction/digital detail enhancement

LRF

Wavelength

1535nm

Light source type

Diode pump

Distance measurement capability

≥500m(DJI Phantom 4);

≥5000m

Distance measurement accuracy

±1m

Operating frequency

1Hz/5Hz/10Hz

Accuracy rate

98%

laser illuminator

Wavelength

808 ± 5nm

Laser power

11 ± 1W

Illumination angle

1°~65°

Laser control

Automatic/Manual

Illumination distance

≥1500m

PTZ

Horizontal speed

0.01°~50°/s

Horizontal Angle

-170°~+170°

Vertical Angle

-20°~+80°

Tracking accuracy

≤0.5mrad


Communication interface

1×RS422/1×CAN/1×RJ45

Power interface

DC20V~DC40V

Protection level

IP65

Operating temperature

-20℃~+50℃

Storage temperature

-25℃~+55℃

Power consumption

≤400W

Dimensions

<500mm × 400mm × 550mm

Weight

≤17Kg

Laser dimensions

<500mm × 360mm × 280mm

Laser weight (including battery)

≤17Kg
