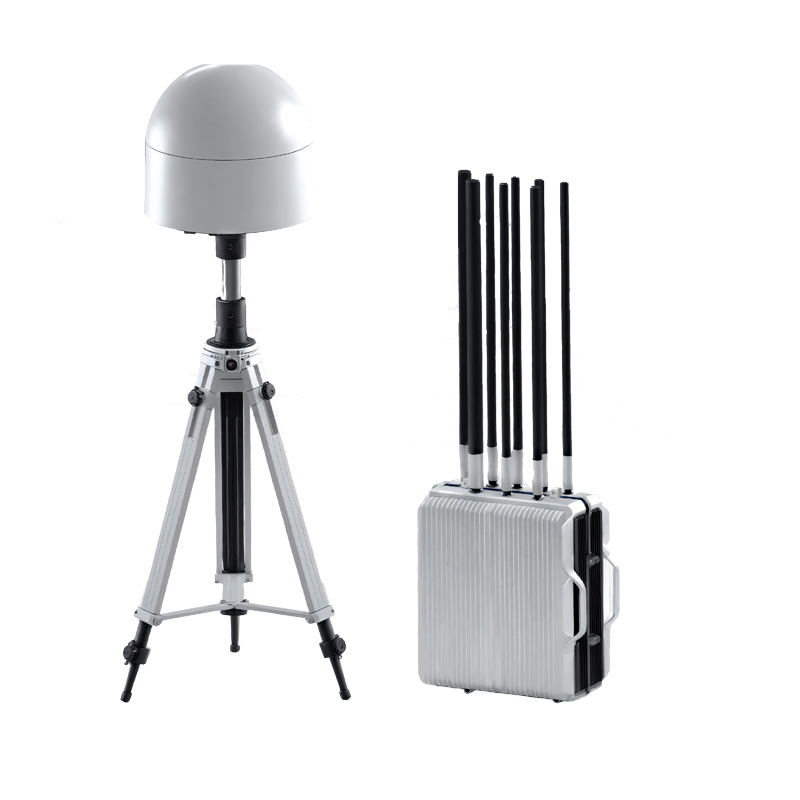

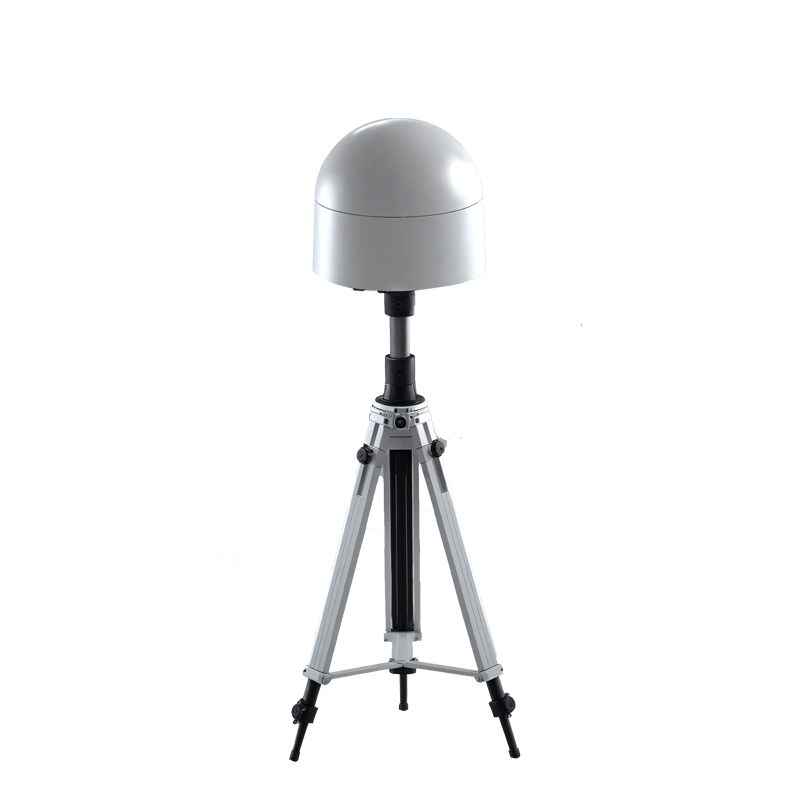

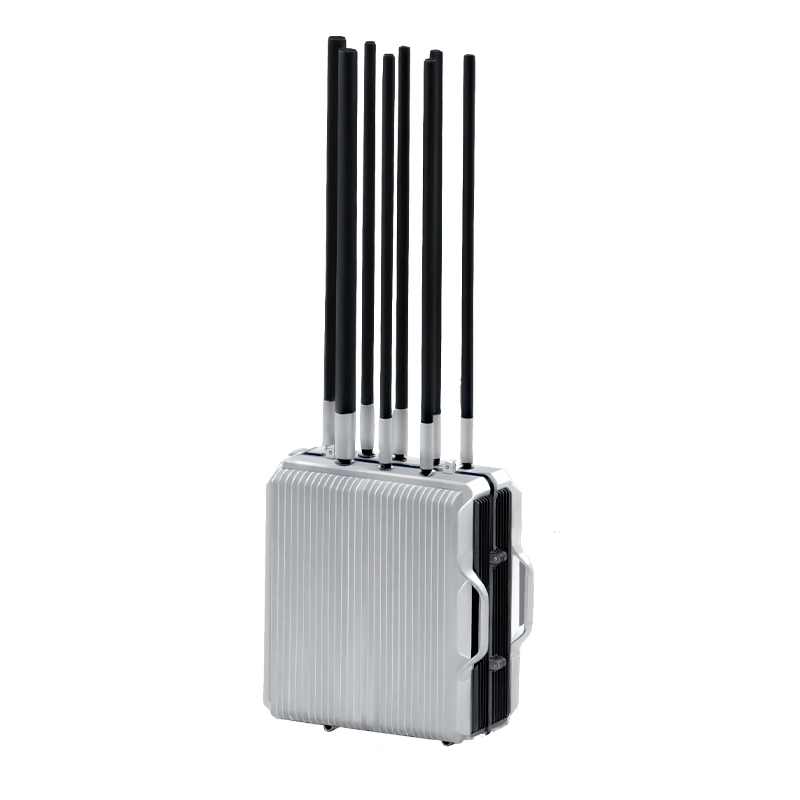

Anti-Drone Jammer System

Availability:

PDF Export

  • AGT-RCD-YT

  • Argustec

Overview:

The integrated drone detection and countermeasure device detects, finds the direction and analyzes the characteristics of the drone image transmission and control link signals, and emits targeted interference signals accordingly, so as to achieve effective detection, direction finding, identification, positioning and interference of drones and remote controllers.

Key Benefits:

  • UAV jamming latest DDS core algorithm provides powerful FM and FPV drone jamming.

  • Comprehensive detection frequency coverage 70MHz-6GHz frequency coverage, complete drone model library to

    meet the needs of different customers

  • Customizable strike frequency 8 common frequencies and 8 customized frequencies, covering 400MHZ-5.8GHZ

  • Flexible networking platform can be separated and paired with other detection and strike equipment for coordinated

    operations

  • 1+N efficient equipment linkage access to low-altitude defense platform, which can integrate radar, navigation

    equipment and observation

  • Al self-learning equipped with drone signal acquisition module, which can autonomously learn and define feature

    libraries

  • Reliable military-grade quality aviation aluminum fuselage, can operate at -40'C to +60'c

  • Customized color and language



Technical Specification:

Model Number

AGT-RCD-YT

Detection frequency range

70MHz-6GHz full band

400MHZ800MHz900MHz1.2GHz1.4GHz2.4GHz5.2GHz5.8GHzKey detection

Detection distance

5~10km

Reconnaissance airspace

360°full airspace

Direction Measuring Accuracy

≤ 10 degrees (follow); ≤ 3 degrees (hover)

Defense frequency bands

800 MHZ900MHZ1.2GHZ1.4GHZ1.5GHz2.4GHZ5.2GHz5.8GHZ

Expandable defense band range400MHz-6GHz full band

Counteraction  airspace

360°full airspace

Counteraction distance

3km

Protection Grade

IP66

Weight

15kg+25kg

Dimensions



666mm'400mm (height ,radius),/500mm'460mm'233mm(length * width " height)

Operating Temperature

-40℃~70℃

Continuous operation capability

Can work 24 hours a day
