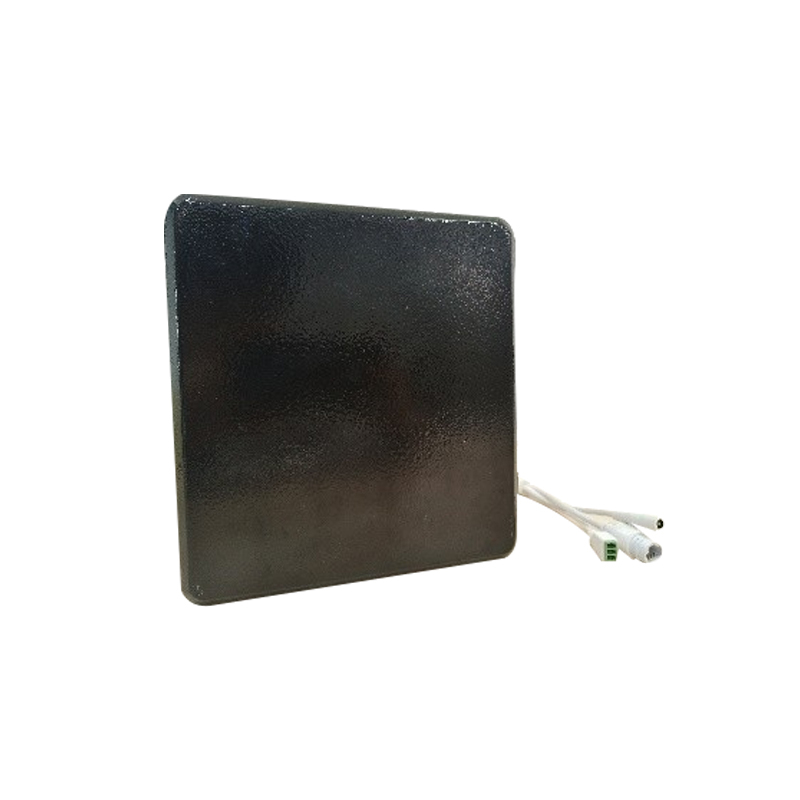

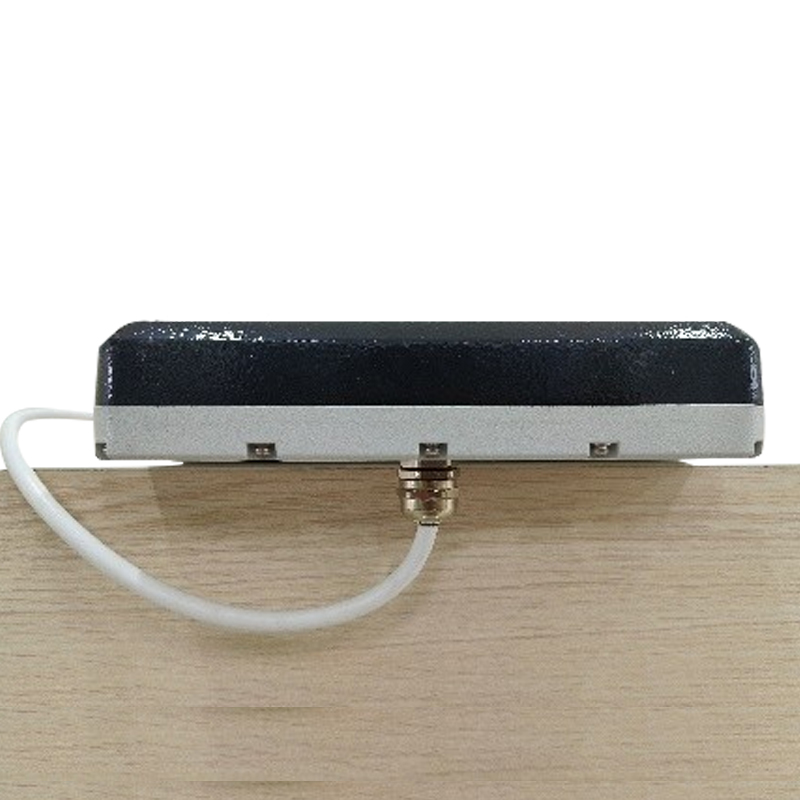

Security and Surveillance Radar for Detecting Moving Target

Availability:

PDF Export

  • AGT-2D-RD800ES

  • Argustec

Overview:

AGT-2D-RD800ES security radar is a cost-effective product that detects and locates targets by emitting 24GHz electromagnetic waves and detecting echoes with the Doppler effect reflected by objects. The product is used to detect the moving target in the field of vision (such as people, vehicles,ships), reporting the distance, azimuth and speed information of the moving target, supporting multiple targets to report at the same time. Based on the above accurate information reported, it can cooperate with the camera and other photoelectric equipment for tracking and positioning, identity



Key Benefits:

1)Frequency modulated continuous wave (FMCW) phased array radar system achieves wide range electronic scanning with an azimuth of ± 45 °.

2)Miniaturization, light-weighting, low power consumption, easy installation, and maintenance free.

3)Support the establishment of defense zones, which can effectively block false alarms outside the core area.

4)Support multiple radar networking to achieve long-distance and large-scale detection.


Application:

AGT-2D-RD800ES security radar can play an active detection role in a variety of application environment, such as intelligent shipping, fishery protection, bridge collision prevention, ship flow monitoring, fisheries management and ship detection in water areas. It can also be used for security maintenance of infrastructure such as substations, detention centers, and oil pipelines, as well as monitoring and controlling traffic facilities such as airport perimeter security, railway line security, and highway traffic control.





Technical Specification:

Radar characteristics

AGT-2D-RD800ES

working frequency

24.00~24.25 GHz

Data update rate

≤2Hz

Detection range

≥800m(personnel), ≥1500m (vehicle ship)

Blind area

≤5m

Horizontal angle range

±45°

Speed range

±33m/s

Accuracy

distance measurement accuracy : ±2 m

angle measurement accuracy:±1°

Electrical characteristics


Radar Power supply

DC12V

 Radar power consumption

≤25W

mechanical properties


Radar Unit Size

226 (W)×208(H)×43 (D)mm

Radar weight

2kg

encapsulation

Durable cast aluminum waterproof shell, IP67 rating

work environment


temperature range

-40℃~85℃
