Desert Tiger Multifunctional All Terrain Unmanned Vehicle

Availability:

PDF Export

  • AGT-HRT-1-6002-01-A

  • Argustec

Overview:

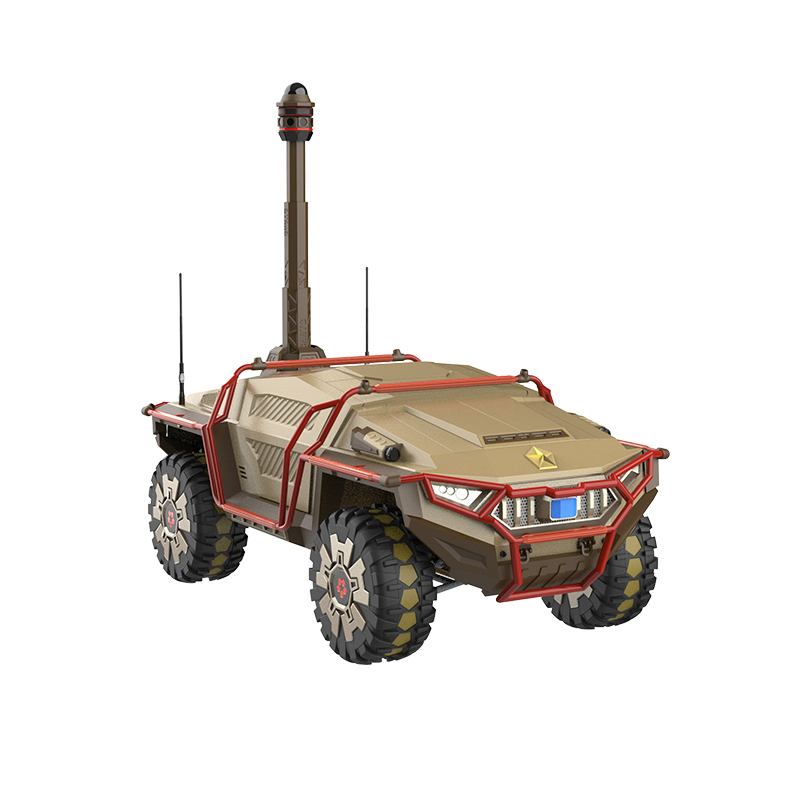

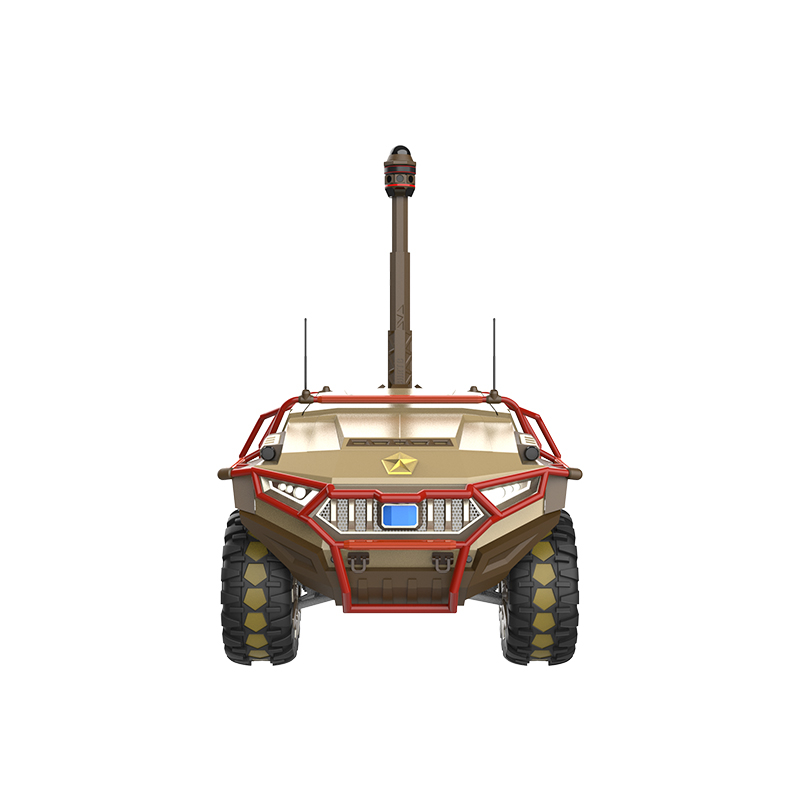

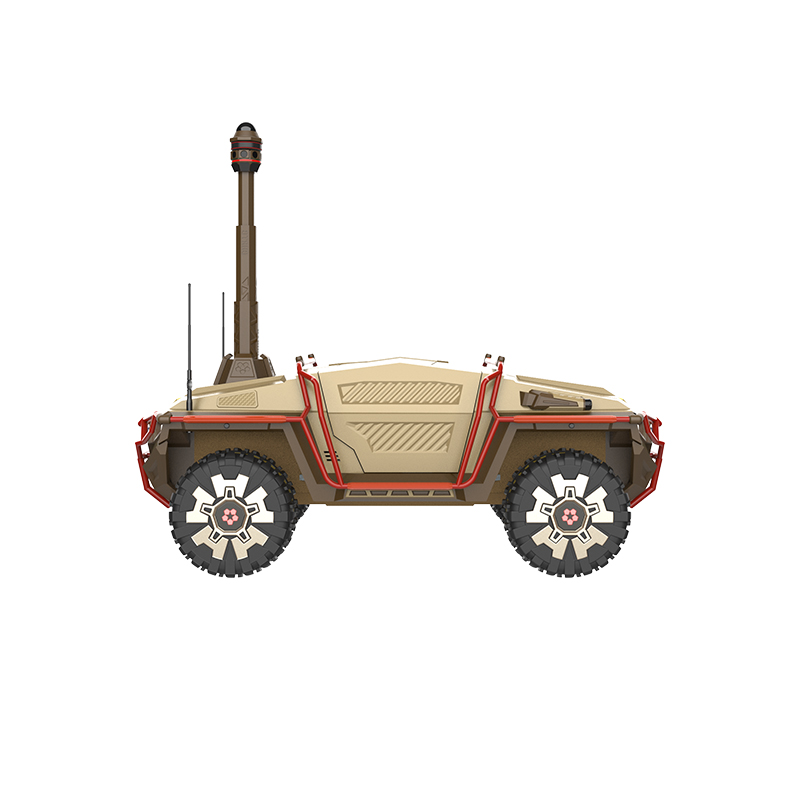

The HRT-1-6002-01-A Desert Tiger multi-function all-terrain unmanned vehicle is a wheeled vehicle that integrates manned and unmanned driving experiences. It is predominantly constituted by a 4x4 all-terrain mobile platform, modular payload system, onboard drone system, and a control terminal, presenting remarkable flexibility, diverse control modalities, high intelligence level, extensive task adaptability, and facile maintenance.


Key Benefits:

Multiple driving types:The unmanned vehicle is capable of accommodating one operator for driving, or it can be remotely steered or operate independently

Intelligent monitoring: Furnished with a three-axis gimbals and a 360-degree panoramic camera, it is capable of detecting, identifying, and positioning targets within the environment. It also has face recognition, license plate recognition, and motion target warning functions.

Ground and air collaboration: The unmanned vehicle is outfitted with a cabin and a drone, enabling it to carry out the takeoff, landing, storage, and charging functions of the drone. The drone is capable of accompanying the vehicle during exploration.

Multi-application scenarios: The unmanned vehicle can be furnished with a wide range of mission payloads, such as loudspeakers, flashlights, dye dispensers, gas detectors, and sound source locators, to satisfy the requirements of different customers and is applicable to a diverse array of application scenarios.

Full time domain work: The unmanned vehicle is able to operate 24 hours a day, 7 days a week, in all weather circumstances. It is suitable for operation in various adverse environments such as rain, snow, fog, haze, sandstorms, etc.


Applications:

1. Wide-Area Environment Mobile Driving Scenario: In parks, industrial parks, beaches, and other expansive areas, the operator can have a firsthand experience of the full-terrain off-road driving feel similar to that of an ATV-like vehicle.

2. Complex Environment Unmanned Driving Scenario: In hilly, mountainous, and desert regions, on the one hand, the operator can remotely control the unmanned vehicle via the control terminal for exploration. Simultaneously, they have the option to operate equipment such as strong light, strong sound, and drones. On the other hand, the operator can utilize the control terminal to establish the driving route, and the unmanned vehicle will automatically conduct exploration in accordance with the planned route.


Technical Specification:

Performance of the UGV

Vehicle size (length x width x height): 2.5mx1.3mx1.2m (height excluding lifting mast and antenna)

Total weight: 350kg

Carrying capacity: 100kg

Battery life time: 5h

Climbing ability: 60%

Over-ability: 25cm

Maximum speed: 45 km/h (manned driving)

Maximum mileage: 50km

Task payload type (optional): three-light cradle, 360 panoramic camera, strong sound, strong light, dyeing, harmful gas detection, abnormal sound source positioning

Performance of the on-board UAV

Drone size: 500mm x500mmx200mm

UAV weight: 2kg

Maximum flight speed: 72 km/h

Battery life time: 40min

Environment

Adaptability

Operating temperature: -20℃ ~55℃

Storage temperature: -40~60℃

Working humidity: 95%
