270km Communication Module

Availability:

PDF Export

  • 270km Communication Module

  • Argustec

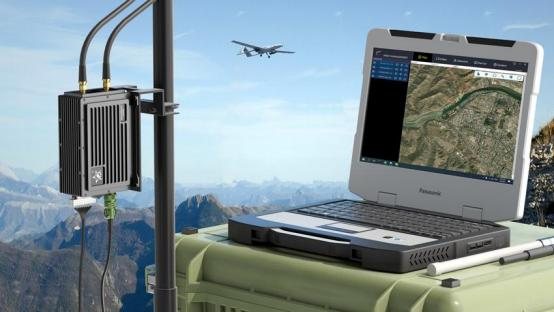

1.Product Introduction

The  module device  adopts  FPGA  architecture,  multi-wavelength,  ultra-wideband,high-speed frequency hopping technology as its core. This allows a group of mesh nodes to form aseamless  a nd  highly  secure  private  network,  even  in  line-of-sight  (LOS)  or  non-line-of-sight(NLOS) c  onditions, under fast-moving circumstances.And it is able to maintain communicationwith the r elevant ground station at a maximum operational speed of Mach 2.

With  robust  anti-interference  capabilities,  it  ensures  secure  and  reliable  operation,  supporting point-to-point, point-to-multi-point, and multi-point-to-multi-point data sharing between mobile nodes.

The system supports AES256 encryption for secure communication, combined with ultra-wide and robust Frequency Hopping Spread Spectrum (FHSS) technology to enhance the anti-jamming and anti-spoofing ability of the module. These features ensure that telemetry data control and remote

video transmissions are more stable and secure in complex warfare environments. It also supports both online firmware updates,ensuring the device remains up-to-date with the latest features and security patches.

Frequency Hopping Spread Spectrum (FHSS) is a technology that enhances the anti-interference capability  of wireless  communication  by  quickly  switching  communication  channels  between multiple frequencies. The transmitting and receiving parties switch between multiple frequencies at a high rate according to a pre-set pseudo-random sequence during the communication process. This allows communication to continue on other frequencies even if one frequency is interfered with, thereby improving the anti-interference capability. Since the frequency hopping sequence is encrypted, it is difficult for external interferers to predict and synchronize frequency changes, making  it  difficult  to   effectively  interfere.  In  addition,  frequency  hopping   technology can effectively  deal  with  narrowband  interference,  making  it  difficult  for  interference  signals  to accurately act on communication channels, and the strong encryption of AES-256 ensures that even if the data is intercepted, it cannot be easily decrypted.

The combination ofFHSS and AES-256 effectively prevents the enemy from using false signals to deceive  the communication  system,  because  even  if  the  signal  is  successfully  interfered  or intercepted, decryption is still a huge challenge. Through the collaborative work of FHSS and AES-256, Mesh military radios can maintain efficient and secure communications in complex and hostile electromagnetic environments.


2.Product Features

1. Low delay video & data transmission

2. 256-bit AES encryption

3. Swarmable networking, Strong anti-interference ability

4 .Long-distance data and video transmission in areas with rough terrain

5. It can be integrated with different   UAVs.

6. Support software Defined Radio (SDR).

7.  Mobile  Ad-Hoc  Network   (MANET)  waveform  that   supports  an  uninterrupted  real  time

communication.


3.Product specification


Transmission feature

Transmitting power

5-8W (Customizable)

Frequency

300Mhz-5.9Ghz (Customizable)

Bandwidth

1/2/5/10/20/40MHz (Adjustable)

Nodes

32/64/128 nodes(Customizable)

Transmission range

270KM (Air to Ground)

Maximum operational speed

2 Mach

Power supply

Operation voltage

DC14-24V

Current

1.6A



Signal feature

Interface

RJ45/TTL/Ethernet/USB/Audio/HD-SDI video(Customizable)

Data protocol

RS232/RS485/RS422/TTL(Customizable)

Sensitivity

-104dBm

Baud rate

115200bps(Adjustable)

RF connector

SMA type

Encryption

AES256

Physical feature

Operating temperature

-30°C ~ +55°C

Storage temperature

-40°C ~ +70°C

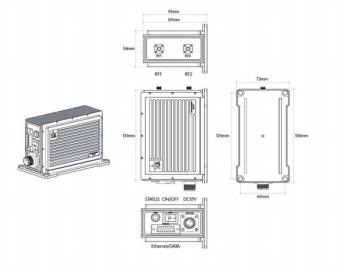

Size

78mm*144mm*53mm (Customizable)

Weight

Aprx. 800g (Customizable)


4.Accessories




Antenna for HF0808UF




Gain: 3dBi

Size: 25cm



Antenna for ground

station





Gain:9.5-12dBi

Size: 1.5 -4.7meter



camera model

There is no model limit, as long as it is an IP

camera.Cameras with other interfaces can also be customized.



ModelAnti-Jamming UAV/UGV

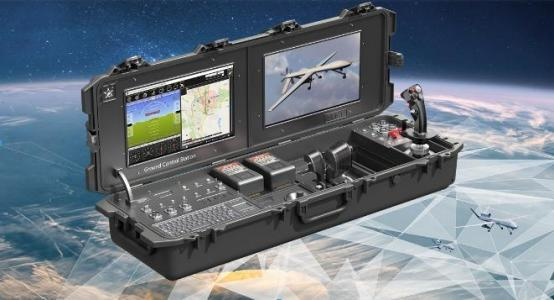

Ground Control Station




1.Product Introduction

The Wireless  ground station is based on software defined radio architecture and employsa multi- hop self-network protocol, an efficient channel codec, and the COFDM waveform, it is anefficien t ground control station for UAV. It incorporates joysticks to remote control camera anddrone  , radio, WiFi, GPS location, video and more. It is quite capable of overcoming difficultchanne   l conditions and accomplishing decentralized co-channel self-network broadband servicetransm ission under complicated scenarios because of its strong anti-interference ability and goodsignal  secrecy. It supports point to point, point to multi-point, and multi-point to multi-point datasharin g between mobile nodes, multi-channel videos can show on the LCD Screen simultaneously.The e quipment is constructed in a multifunctional military grade durable PELICAN box, makingit per fect for simpler installation and easier transportation.

Strong Signal Secrecy: With robust anti-interference capabilities, it ensures secure and reliable operation, supporting  point-to-point,  point-to-multi-point,   and  multi-point-to-multi-point   data sharing between mobile nodes.

Secure Encryption: The system supports AES256 encryption for secure communication, combined with ultra-wide and robust Frequency Hopping Spread Spectrum (FHSS) technology to enhance the anti-jamming and anti-spoofing ability of the module. It also supports both online and offline firmware   updates,   ensuring   the   device  remains   up-to-date   with   the   latest   features   and securitypatches.



2.Product Features

1. Highly integrated design

2. Robust protective case for environmental resistance

3. Image bright and dual high-definition displays

4.Versatile protocols compatible with different RF wireless links

5. Support software Defined Radio (SDR).


图片6Dingtalk_20240902164339


3.Product Specification


Transmission feature

Built-in

Frequency

300Mhz-5.9Ghz (Customizable)

LCD monitor

17inch HD LCD screen *2

RF bandwidth

1/2/5/10/20/40MHz(Adjustable)

CPU

Intel i5 8GB RAM

RF Level Input

-105dBm~-20dBm

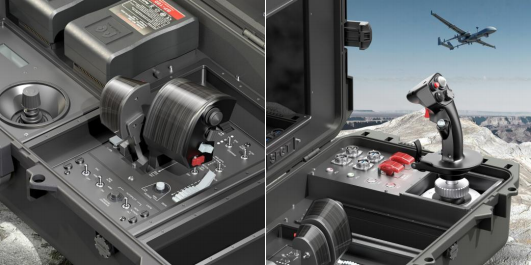

Controller/Joystick

CAM/   PITCH   &   ROLL   /YAW   &

THROTTLE

RF Interface

N(F)

Memory

Standard 500G SSD


Data Interface

Ethernet/SBUS/RS485/RS232/RS422        serial Port/Audio/HD-SDI video(Customizable)

Power Supply

Operation Voltage

AC220V / DC19V

Modulation

COFDM

Operation Current

4A

Constellation

QPSK, 16QAM,64QAM

Battery

DC16 .8V@10A *2

FEC

1/2,2/3,3/4,5/6,7/8

Physical feature


Guard Interval

1/32, 1/16, 1/8, 1/4

Working Temperature

-30~70° C

Resolution

1920*1080p

Size

1198*419*234mm

Encryption

AES256

Weight

28kg

Maximum operational speed

2 Mach

Water proof

IP65

Transmission range

270KM (Air to Ground)
