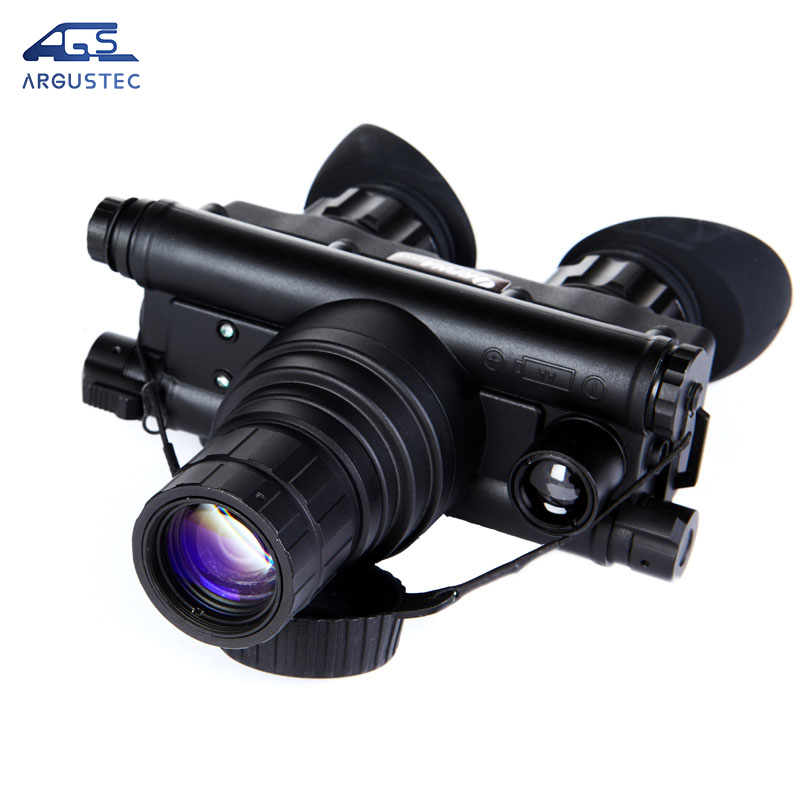

AGT-DG2071
AGT-DG2071 adopt high-performance ultra-second-generation third-generation image intensifiers, which have excellent performance, small size, light weight, clear imaging, powerful functions, easy operation, adjustable eye distance, and magnification can be changed by changing the objective lens , the biggest feature is that the eye distance can be adjusted at will according to the user's requirements, and the image seen at night can be converted into video output and so on. The product can be connected to the helmet, and can also be used separately for handheld observation. The night vision device has a built-in dual-band infrared auxiliary light source and an automatic anti-glare protection system.
1. Waterproof and dustproof IP67: the device can work normally under 1m deep water for 1 hour
2. Direction-sensing automatic switch: When you don’t need to use the device temporarily, you can press a button on the helmet to raise the device up and then let go, and the device will automatically turn off at this time. When it is necessary to continue to use, press the same button to put down the device to the observation position, and the device will automatically return to the working state at this time.
3. Standby zero consumption: When not in use for a long time, the battery will not lose power when placed in the battery holder
4. The battery cover spring is embedded: it can better contact the battery and the spring is not easy to be damaged, and it is easier to twist the battery cover.
5. Ordinary battery: Two AA batteries can be used normally, equipped with a battery anti-reverse circuit, the battery will not damage the product if it is installed reversely.
This product has strong practicability and can be applied to wildlife observation, border and coastal defense reconnaissance, public security surveillance, evidence collection, customs anti-smuggling, etc. at night without lighting. It is an ideal equipment for public security departments, armed police forces, special police forces, and guard patrols.
Model | AGT-DG2071 |
IIT | Gen2+ |
Magnification | 1x |
Resolution (lp/mm) | 57-64 |
Photocathode type | S25 |
S/N (dB) | 17-21 |
Luminous sensitivity(ìÀ/lm) | 500-600 |
MTTF (hrs) | 10,000 |
FOV (deg) | 40 |
Detection distance (m) | ﹥220 |
Diopter (deg) | +5/-5 |
Lens system | F1.2, 25.8mm |
Range of focus (m) | 0.25--∞ |
Adjustable interpupillary distance(mm) | 58-72mm |
Wavelength for IR illuminator | 808nm & 850nm |
Dimensions (mm) | 152x143x58 |
Weight (g) | 450 |
Video output | Video |
Power supply (v) | 2.0-4.2V |
Battery type (v) | AA (2) |
Battery life (hrs) | 80(w/o IR) 40(w IR) |
Operating temperature(℃) | -40/+60 |
Relative humility | 98% |
Environmental rating | IP67 |
1. Power work switch
2. Battery compartment
3. Objective lens
4. Protective cover for objective lens
5. Eyepiece
6. Goggles
7. Mounting part
8. Red Burst Light
9. Red burst light switch
10. Infrared auxiliary light source
11. Function selection switch
12. Environmental illumination detector
13. Video output/external power supply interface
14. Nitrogen filled holes
15. Desiccant cartridge
