Binoculars Single Tube Military Night Vision Device

Availability:

PDF Export

  • AGT-NM2011

Features

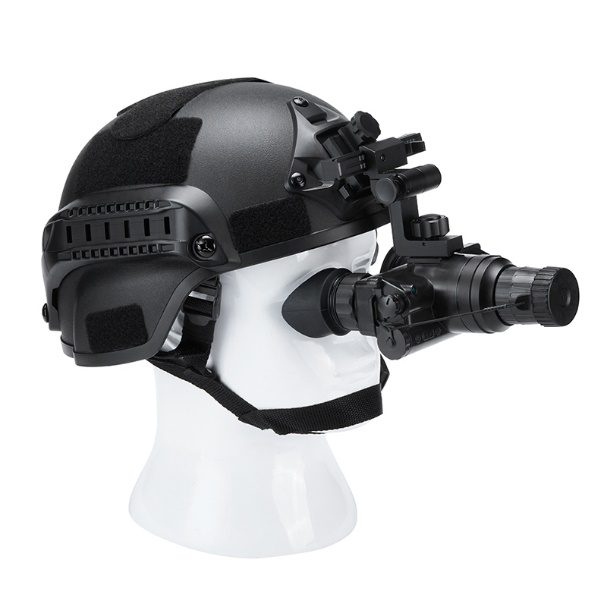

1) Versatile: it can be used hand-held, and can also be used for headwear and helmet installation

2) Multilayer coating standard: ultra-wideband multi-layer antireflection film can inhibit the wide band reflection on the glass surface of the lens, reduce the light loss, so that more light through the lens to obtain good observation effect

3) It can be equipped with a single infrared enhancer to enhance the night time effect and extend the scope of application

4) The battery cover spring is embedded: it can better contact with the battery, and the spring is not easy to damage, and is also more convenient to twist the battery cover.

5) The built-in infrared indicator and low power indicator (displayed in the eyepiece) enhance the user's concealment

图片1图片2


Overview:

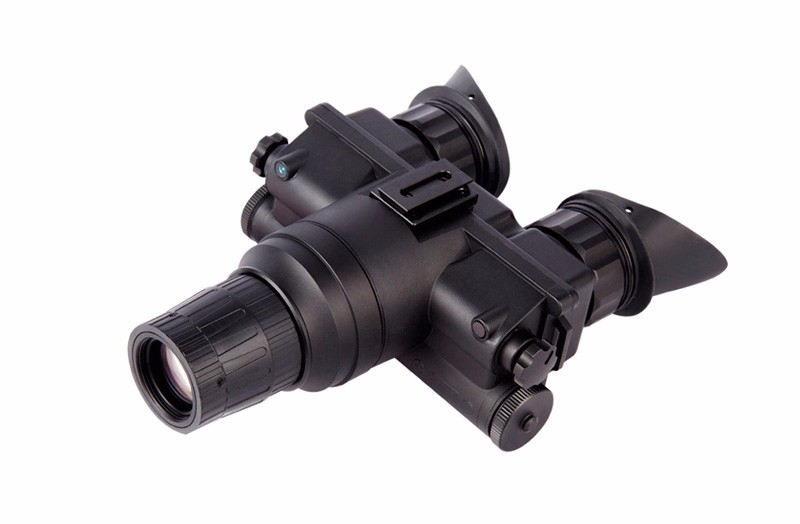

Multi-function: It can be used as a monocular night vision device or combined into a binocular night vision device through a connecting bridge; it can be used with head wear and helmet installation; it can be installed as a night vision device on a common sight; it can be connected to a camera, etc. Night shooting, etc.

Change the objective lens to change the magnification, optional 3 times lens, 5 times lens or 6 times lens

A separate long-distance infrared intensifier can be selected to enhance the observation effect in total darkness at night

The battery cover spring is embedded, which can better contact with the battery and the spring is not easy to be damaged, and it is also easier to twist the battery cover.

Optional IP68 waterproof and dustproof level

Built-in infrared indicator light and low battery indicator (displayed in the eyepiece)

Multi-layer coating standard: Ultra-wideband multi-layer antireflection coating can suppress the broadband reflection on the glass surface of the lens, reduce the loss of light, and allow more light to pass through the lens to obtain a good observation effect

The night vision device has anti-glare and anti-dazzle functions

Zero standby consumption: when not used for a long time, there will be no power loss when the battery is placed in the battery canister


Technical Specification:

NVG SPECIFICATIONS

Model

AGT-NM2011

IIT

GEN3

Resolution (lp/mm)

45

photocathode type

GaAs

MTTF hours

10000

magnification

1X

FOV deg

40

Detection distance

300m

Diopter (deg)

+5/-5

Lens system

F1.2, 25.mm

Range of focus(m)

0.25--∞

Dimensions(mm)

149*121*51

Weight(g)

≤500g

Power supply(v)

2.0-4.2V

Battery type(v)

CR123Alithium battery

Battery life(hrs)

80(w/o IR)

40(w IR)

Operating temperature(°C)

-20/+60

Storage temperature(°C)

-50/+70

Environmental rating

IP67

Packing List

Night Vision Monocular, Flip-up head mount, Protective carrying bag, Instruction manual, Lens cleaning cloth, Warranty card, Desiccant

Optional Lens

5X

NVG SPECIFICATIONS

Protection Level

NIJ IIIA .44

Head Size

55~59cm/ 59~62cm/ 59~62cm Optional

Protection Size

1200cm²~1260cm²

Weight

1.65±0.1kg
