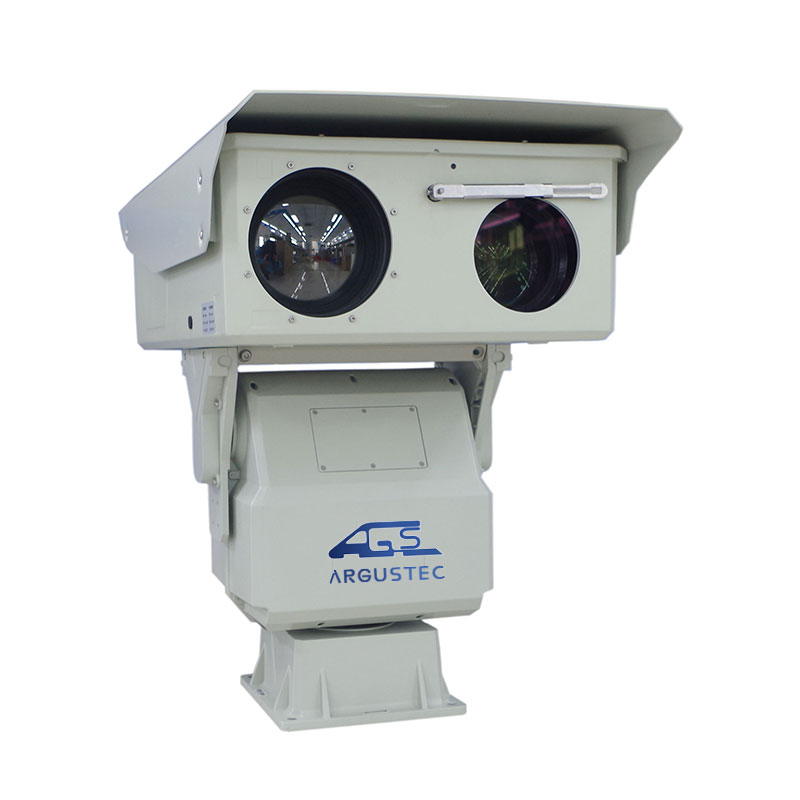

HD Outdoor Thermal Imaging Camera for Forest Fire Protection System

Availability:

PDF Export

  • AGT-TVC4516-2186-TG

Key Benefits:

  • The unique AS + DOE advanced optical continuous zoom design and 3CAM high precision optical mechanical design provide smooth and smooth zoom for large-scale search and remote recognition

  • Excellent non-uniform image correction technology, with good image uniformity and dynamic range

  • SDE Image Detail Enhancement technology, image

  • Smooth and silent, a variety of false color and hot black hot white polarity image mode switching, strong adaptability, easy to find low contrast hidden targets

china thermal camera



Overview:

  • Integrated infrared thermal imaging, HD visual imaging, video coding, pan/tilt cover and control electronics

  • Visible imaging using full HD color black and white mode low illumination CMOS sensor, 30 times

  • Compact continuous zoom lens

  • The latest generation VOx detector is based on MEMS technology with a detection sensitivity (NETD) of up to 50mk, which is more sensitive than conventional products, achieving a finer picture quality, a laser switch that is less affected by fog, rain and snow, and the camera entering day and night mode



Applications:

  • Seaport and airport monitoring;

  • Water system monitoring;

  • Storage monitoring;

  • Military base security monitoring;

  • Oilfield & oil depot security;

  • Fire source prevention & monitoring;

  • Ecological and environmental monitoring;

  • Border and coastal defense;

  • Urban security and anti-UAV applications;

  • Highways and railways monitoring.



Technical specification:

Model

AGT-TVC4516-2186-TG

Detection

Vehicle: 13km,Human:4.8km

Identification

Vehicle:3.4km, Human: 1.3km

Thermal Camera System

Sensor


5th generation FPA VOx uncooled detector

384*288  resolution (optional 640*512 resolution)

Spectral range

7.5~14μm

NETD

50mK (@25℃ F1.0)

Focal length

31mm~155mm, 5X continuous zoom, auto focus

FOV

20°X 15°~4°X3°

Image process

1. Image enhancement: SDE digital image enhancement technology to enhance image details

2. Pseudo-color polarity: 16 kinds of pseudo-color images, hot black / hot white two polarities

3. Image parameters: AGC automatic gain control, brightness, contrast

4. Electronic zoom: 2x, 4x, support global synchronous display

5. NUC correction: automatic / manual correction, background correction

Lens Control

1.Zooming: Electrical Zoom. 2.Focusing: Manual/Auto Focus

3. Optical machine: 3CAM mode and AS+DOE optical structure, high infrared over transmission, zoom process without virtual focus, smaller axis.

Visible Camera System

Camera





1/1.8” star level CMOS, 0.001lux/0.0001lux color to B/W CCD

2 MP ,1920X1080

Automatic ICR switch

H.264/H.265 MPEG4/MIPEG

32Kbps~16Mbps,60Hz30 FPS

Visible lens


11~800mm, 2MP, 72X zoom, auto focus

Optical IR correction design, diurnal focus

Housing

Material

High strength aluminum alloy shell,waterproof seal,To avoid the growth of mold and moisture generated

Structure

Integrated single-window design

Surface coating

PTA three-resistance coating, Seawater corrosion resistance

Temp. Control

Built-in thermostat, design of thermal equilibrium

Interface

Aviation waterproof plug

PTZ

Load Capacity

50kg

Range/Speed

Range:Pan: 0~360°, Tilt: +45°~-45°; Speed: Pan: 0.01~30°/S, Tilt: 0.01~15°/S

Preset

255

Scan

Support 6 cruising line, 1 apple-skin scanning, 1 line-cruising.

Interface

Network Interface

 RJ45

Network Protocol

Support TCP/IP, UDP, IPv4/v6; Support HTTP,RTP,RTSP,NFS,HDCP,NTP,SMTP,,PPPoE,DNS, FTP, Onvif

Power Supply

AC/DC24V, anti-reverse connection protection

Environment Parameter

Working/Storage Temp.

Working temperature: -25℃~+60℃(-40℃for optional); Storage temperature: -45℃~70℃

Seismic/Impact Resistance

0.2g/15g

Anti-lighting

Built-in auto Fuse-protected device, Power 4000V,Signal 2000V

Weight & Power Consumption

Weight: 45kg (include PT); Power consumption: 180W
