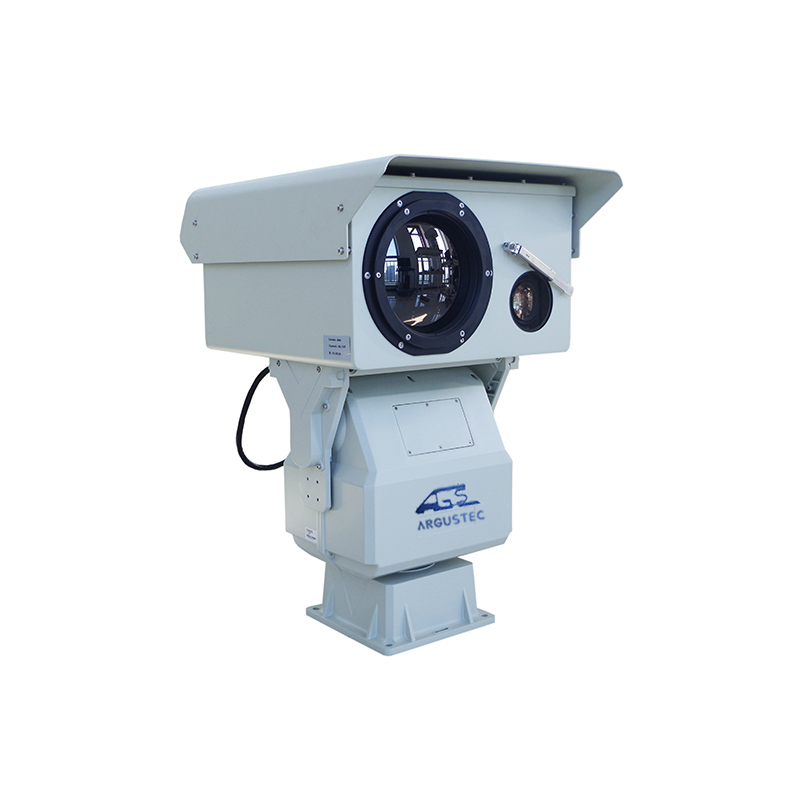

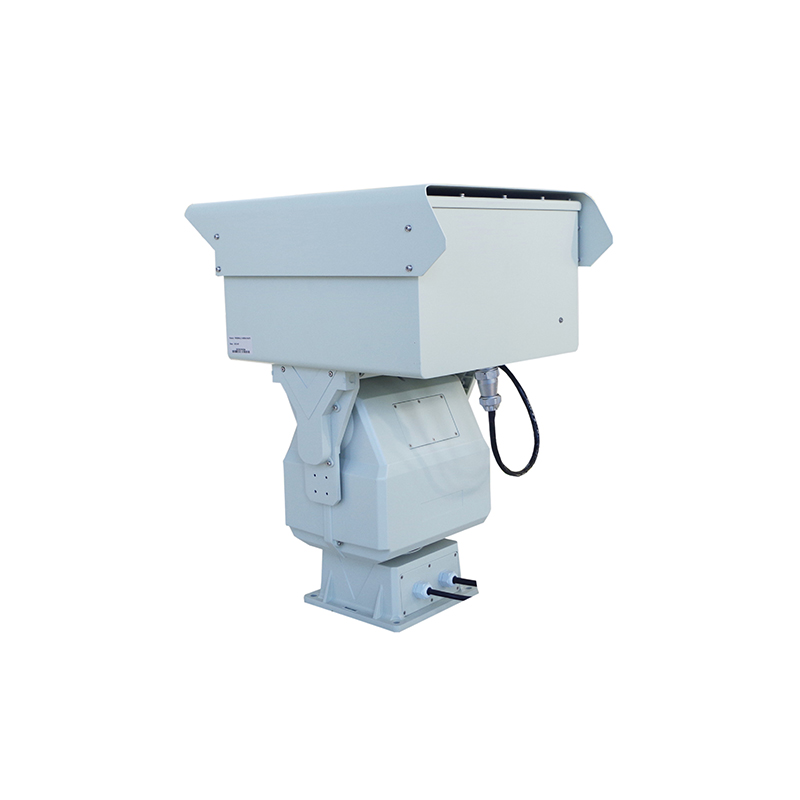

Long Distance Dual Sensor PTZ Thermal Imaging Camera

Availability:

PDF Export

  • AGT-TVC6105-1930LFZ

Key Benefits:

TC series long range thermal imaging camera is based on the latest uncooled IR sensitive technology and

continuously IR optical zoom. User could get a best imaging details with 384*288/640*512/1280*1024 resolution uncooled /cooled FPA sensor, advanced digital circuit and image processing algorithm. Special design of 5X /20X optical zooming lens have detection distance 18km, suit for both seeking and watching.One integral aluminum alloy housing make sure the camera works well outdoor. In combination with 360-degree PT, the camera is capable

of conducting 24 hours real-time monitoring within 1km-38km. With built-in technical grade control electronic system, the camera’s functions like zooming, focusing and video switch can be easily completed. The camera is IP67 rates, which ensures camera´s normal operation under tough weather conditions.

AGT-TVC6105-1930LFZ



Overview:

  • 1.NETD 45mk enhance the imaging details even in foggy/rainy/snowy weather.

  • 2.Special AS optical zooming lens and 3CAM high-precision optomechanical    design suit for both large-scale seeking and long-distance watching.

  • 3.Non-uniform image correction technology, stable working temperature   without TEC, good image uniformity and dynamic range.

  • 4.SDE digital image processing, no image noise, 16 pseudo color image

  • 5. One integral aluminum alloy housing, weatherproof IP 67, waterproof, anti-dust.



Applications:

  • Seaport and airport monitoring;

  • Water system monitoring;

  • Storage monitoring;

  • Military base security monitoring;

  • Oilfield & oil depot security;

  • Fire source prevention & monitoring;

  • Ecological and environmental monitoring;

  • Border and coastal defense;

  • Urban security and anti-UAV applications;

  • Highways and railways monitoring.


Technical specification:

Model

AGT-TVC6105-1930LFZ

Detection

(Day/Night)

Vehicle:6500m

Human:1600m

Recognition

(Day/Night)

Vehicle:1200m

Human:600m

Sensor

Uncooled vox sensor

Resolution

640*512

Spectral

7.5~14μm

NETD

45mK(@25℃ F1.0)

Focal length

50mm

/

8X digital zoom

Lens control

1. Zoom: Optical zoom

2. Focus: manual / auto focus, 3A adaptive active focus algorithm, support multiple trigger modes, precise high speed

3. Optical machine: 3CAM mode and AS+DOE optical machine structure, high infrared transmittance, no virtual focus and small axis in the zoom process

Image processing

1.  Stable operational temperature without TEC, starting time less than 4 seconds

2.  SDE digital image processing

3.  16 pseudo color and B/W, B/W inverse

4.  AGC

5.  2X/4X /8X digital amplification

6.  NUC correction: automatic / manual correction, background correction

Enhancement

1.Protection from strong light, Sunburn protection

2.Temperature correction: a thermalization design, the image sharpness is not affected by temperature

3. Scene mode: support multi-configuration scene, adapt to different environment application

Visible Camera Sensor

1/1.8'' CMOS

0.0002lux super high sensitive color to B/W CCD

2 megapixels,1920X1080

Automatic ICR switch

H.264/MPEG4/MIPEG

32Kbps~16Mbps,60Hz30 FPS

Visible Camera Lens

4.7~141mm

30X zoom

Intelligent Analysis

1. Intrusion detection

2. Fire Alarm/Hot Alarm

3. Cross-line detection

4. Support Auto Track (together with software)

Housing

1. Material:High strength aluminum alloy shell,waterproof seal,To avoid the growth of mold and moisture generated

2. Structure:Integrated single-window design

3. Surface coating:PTA three-resistance coating, Seawater corrosion resistance

4. Interface:Aviation waterproof plug

PT(optional)

1.  Duty: 30kg/50kg

2.  Rotation:  Pan: 0~360, Tilt: -45~+45

3.  Rotation speed: Pan: 30°/S, Tilt: 15°/S,

4.  Preset 255(Optional variable speed PT)

Interface

RJ45 Network Interface

Environment

1. Operating temperature:-25℃~+55℃(-40℃ optional)

2. Storage temperature:-35℃~+75℃

3. Humidity:<90%

4. Ingress protection:IP66
