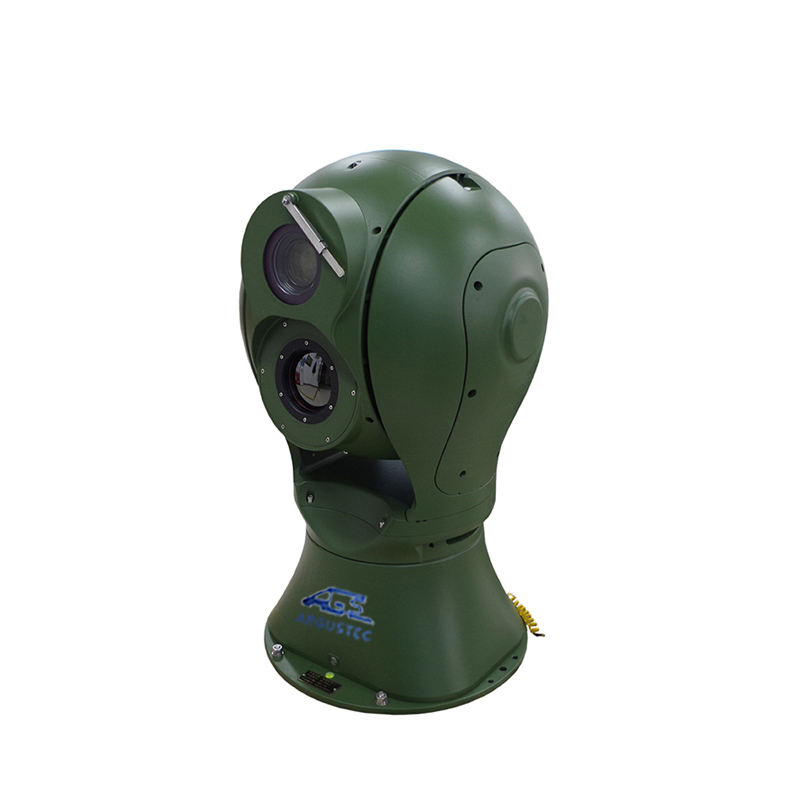

AGT-Z50II-TVC4511-2150-TG
Wider detection spectrum: integrated HD visible light, medium wave/long wave thermal imaging/near infrared laser, complementary advantages of dual sensor detection, active and passive detection combined with multi-source data aggregation and fusion processing, so that the target is not hidden, to meet the day, night, all-weather environmental monitoring requirements.
Faster reverse speed control: speed up to 80°/s, acceleration up to 100°/s2, faster start-stop speed, smooth operation, help to quickly capture and track moving targets.
Wider coverage: translation rotation range 0° -360 °, tilt rotation range -90 °~ + 90°, to achieve dead Angle detection and full-size coverage.
A combination of visual cameras, thermal imaging cameras (cooled/uncooled) or/and near-infrared laser lighting, multiple sensor modules are suitable for remote monitoring in total darkness and fog/rain environments.
Optional system enhancements such as laser rangefinder, GPS, electronic compass, automatic tracking system, AI analysis module and more... In order to achieve full - scale monitoring, positioning, tracking, identification and other functions.
Model | AGT-Z50II-TVC4511-2150-TG |
Detection Distance | Vehicle:8.6km Human 3.4km Fire detection range of 2X2 meters up to 5,000m (3X3 pixels) |
Recognition Distance | Vehicle:2.4km Human 0.9km |
Thermal Camera | 1. Detector: sixth generation uncooled focal plane array VOX detector 2. Wavelength: 8 ~ 14 μm 3. NETD: 40 Mk (@25 °C F1.0) 4. Lens: 21 ~ 105 mm 5. Lens control: Electric Zoom; Manual/auto focus, 3A adaptive active focus algorithm, support multiple trigger modes, accurate and high speed; 3CAM mode and AS + DOE optical structure, high infrared transmittance, the zoom process has no virtual focus and the axis is small 6. Image Enhancement: SDE Digital Image Enhancement Technology, enhance image details, support 255 level thermal image enhancement adjustment 7. Pseudo-color polarity: 16 pseudo-color images, hot black/hot white polarity 8. Image parameters: AGC automatic gain control, brightness, contrast adjustment 9. Electron doubling: 1.0 ~ 8.0 × continuous doubling (step length 0.1) , supporting optical electron relay doubling, supporting global hawk-eye diagram 10. Rangefinder: supports rangefinder 11. Bad Correction: support for bad correction 12. Image Correction: support manual correction, background correction, automatic correction time interval, Gamma correction parameters adjustable 13. Bright Light Protection: supports protection against Sun Damage 14. Detector Array: 384 × 288 15. Field of view: 27.2°×21.9°～5.9°×4.7° |
Visible Camera | 1. Sensor type: backlit ultra-low illumination star-level CMOS 2. Minimum illuminance: Color: 0.0005 lux; black and white: 0.0001 lux; 0 lux (IRON) 3. Lens: 8～500 mm, Mega HD electric zoom; Manual/auto focus, 3A adaptive active focus algorithm 4. Image Processing: support for white balance, electronic shutter, frame accumulation, backlight compensation, strong light suppression, 2D/3D digital noise reduction, electronic anti-shake, wide dynamic 5. Day-night type pass light: 0.4-0.75 um visible broad spectral window and 0.8-0.95 um near infrared spectral window 6. Support electronic transmission fog, optical transmission fog 7. Intelligent Analysis: support intrusion detection, cross-border detection, entry/exit zone detection, mobile detection, hover detection |
Audio and video | 1. Resolution: 1920 × 1080; 1280 × 1024; 1280 × 960; 1024 × 768; 1280 × 720; 704 × 576; 640 × 512; 640 × 480; 400 × 300; 384 × 288; 352 × 288; 352 × 240 2. Visible resolution: 2592 × 1520; 2560 × 1440; 1920 × 1080; 1280 × 1024; 1280 × 960; 1024 × 768; 1280 × 720; 704 × 576; 640 × 512; 640 × 480; 400 × 300; 384 × 288; 352 × 240 3. Video Coding: H. 265/h. 264/MJPEG, multi-stream support 4. Video rates: 32 KBPS to 16 Mbps 5. Audio encoding: G. 711A/g. 711U/G726 6. Image rollover: right/left/up/down/diagonal 7. OSD settings: Support Channel name, time, PAN, field of view angle, focal length of the OSD display settings, support preset position name settings |
Hot Spots/fireworks alerts | 1. Alarm threshold: 255 settable 2. Target size: range can be set to automatically identify different size targets 3. Alarm target number: 1-16 can be set 4. Alarm mode: video overlay alarm box + data return (or switch) multiple alarm mode, alarm intuitive and easy to read 5. Front-end algorithm: optimized front-end fast processing algorithm, based on the original heat map data per frame analysis, alarm response 0.1 s, no delay, no loss of information 6. Support visible light smoke detection alarm |
Intelligent function | 1. Fire Detection Alarm: Threshold Level 255, target size, target number 1-16 can be set, automatic selection of the most prominent target display, hot tracking 2. Intelligence analysis: support intrusion detection, cross-border detection, entry/exit area detection, motion detection, loitering detection, people gathering, fast moving, target tracking, items left behind, items taken; Human/vehicle target detection, face detection; and support 16 regional settings; support intrusion detection, human, vehicle filtering function; support target temperature filtering function 3. Automatic tracking: single-scene tracking support multi-scene tracking support panoramic tracking support alarm linkage tracking 4. Intelligent Information Fusion: support 512 AR intelligent information fusion, support point of fire, intelligent analysis video identification information fusion, support azimuth angle, field of view, focal length, multiple information fusion 5. Image Fusion: support 18 kinds of dual-light fusion mode, support picture-in-picture function 6. Alarm management: Support Alarm capture upload |
Enhanced function | 1. Ranging function: support passive ranging; support optional laser ranging 2. Strong light protection: support, protection from Sun Burn function 3. Temperature Correction: non-thermal design, imaging sharpness is not affected by temperature 4. Scene mode: support multi-configuration scene, adapt to different environment applications 5. Auto-focus tuning: support remote auto-focus accuracy parameter adjustment, adapt to different scenarios 6. Day-night cruise: day-night cruise groups with different preset, day cruise 1-40 preset, night cruise 41-80 preset, according to the state of light automatically switch day and night, adapt to different space-time scenarios 7. Lens servo: support lens pre-position, focal length back, focal length positioning function 8. Power-off memory: support to restore the pre-power-off position, pre-position state, cruise state, line scan state 9. Off and on: support 10. Camera diagnosis function: support network alarm, support IP conflict alarm, support illegal access alarm (illegal access number, lock time can be set) , support SD card abnormal alarm (SD space is insufficient, SD card error, no SD card) , video block alarm, anti-sun damage (support threshold, block time can be set) 11. Life Cycle Management: Health Index recording function, support working time, shutter times, working temperature, limit temperature, etc. 12. Remote Maintenance: with fault inquiry, self-examination, remote restart function; online upgrade, remote upgrade 13. Keyframe settings: support keyframe interval 100-level adjustable 14. Configuration File: Support Configuration File Import and export function 15. Web Access: support WEB full function configuration, remote online upgrade |
Security control | 1. Support illegal access alarm: illegal access number, lock time can be set 2. Support three levels of user rights management, administrators, operators, ordinary users 3. Security mode: authorized user name and password, support IP white list and black list, Mac White list and black list 4. User Login Lock |
Servo turntable | 1. Structure: spherical, multi-dimensional free-form surface shape, small wind resistance, strong anti-shake, can resist 12 strong wind 2. Two-axis two-frame, up and down split design, can be independent packaging transport, rapid combination 3. Windows: Dual/triple windows, 2/3 band sensors, wiper 4. Level range: N × 360 ° continuous rotation, after power failure can be mechanically locked 5. Pitch range:-90 ° ~ + 90 ° , with soft limit function, program can be set 6. Rotation Speed: level 0.01 ° ~ 80 °/s, pitch 0.01 ° ~ 60 °/s 7. Acceleration: 100 ° S 2 level, 100 ° S 2 pitch 8. Speed adaptation: with intelligent induction speed change function, support lens focal length speed adaptation function 9. Driving mode: adopting high torque rare earth permanent magnet synchronous motor direct drive, high speed start and stop 10. Positioning accuracy: better than 0.02 ° 11. Location Time: less than 4s 12. Zero setting: support for horizontal and pitch zero setting 13. Preset cruise: 3000, supports 16 cruise routes, each can support 256 preset positions 14. Path scan: Support Preset Point Cruise, day and night cruise, line scan, frame scan, apple skin scan, scan speed can be set 15. Over watch: preset position/pattern scan/cruise scan/vertical scan/frame scan/panoramic scan/apple peel scan/horizontal fan scan 16. Motor Protection: turntable block and turn protection, high reliability 17. Gyro image stabilization: optional two-axis gyro stabilization, pitch and roll ≤ ± 10 ° , period greater than 6 seconds, los stabilization accuracy ≤2 mrad (RMS) |
Electrical interface | 1. Network interface: 1-way RJ45,10/100base-t adaptive 2. Network protocol: support HTTP, HTTPS, FTP, SMTP, DNS, NTP, RTSP, RTCP, RTP, TCP, UDP, ICMP, DHCP network protocol; support ONVIF and GB28181 protocol 3. Secondary development: provide free SDK, easy to use or convenient secondary development 4. Physical interface: Alloy Waterproof Aviation Plug 5. Optical network: (optional built-in Fiber Module, single mode fiber output, improve anti-interference) |
Power consumption | 1. Power: with ultra-wide input power adapter, AC90V ~ 305V to DC48V 2. Power consumption: the maximum power consumption of the turntable is less than 500W and the stable power consumption is less than 150W |
Environmental Indicator | 1. Working Temperature:-40 °C ~ + 60 °C 2. Storage Temperature:-45 °C ~ + 70 °C 3. Humidity: < 90% Rh 4. Lightning protection: Interface Circuit built-in surge protection, 6000V 5. Salt spray: in PH 6.5 ~ 7.2, continuous spray 96 hours, no change in the surface 6. Protection class: IP66(Ball Chamber air-tight IP67) |
Dimension weight | Dimensions: 480mm × H825mm Total weight: ≤85 kg |
Dedicated platform (optional) | 1. Function Module: video preview and playback, PTZ control, equipment management, user management, intelligent analysis service, GIS Map Service, information management Fire protection functions: Fire Point identification, smoke identification, fire warning location, resource management, SMS warning, weather access 3, intelligent functions: Fire Alarm, support area invasion, enter the area, leave the area, automatic tracking and other intelligent analysis and alarm functions, can be extended to support radar linkage, binocular arbitrary angle panoramic mosaic, 3-d magnification User Management: multi level users, departments and roles manage and support 999 front end departments. 4. GIS map: Fire Alarm and location, support ranging, area measurement functions, video display control, support for custom landing plot, support the conventional function of map electronic map drag, mouse scroll level zoom in or out, support display eagle eye map, scale. 5, support Chinese and English, support skin, support custom menu bar, support handle operation. 6. Access to mainstream vendors'front end products such as Haicang/Dahua/USV and manage the NVR video features. Support for 999 front end/departments |
