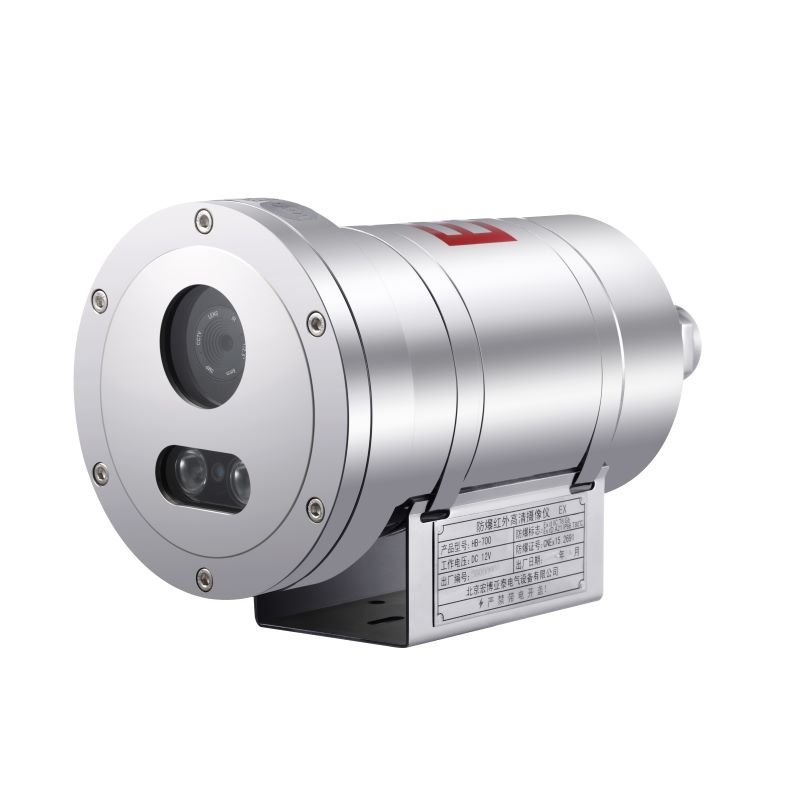

Argustec Atex IP Exproof Camera

Availability:

PDF Export

  • AGT-EP-700-B8504

  • Argustec

Key Benefits:

● Double explosion-proof certification, explosion-proof mark: Ex db ⅡC T6 Gb/Ex tb IIIC T80℃ Db

● Temperature measurement range: -20 ℃-150 ℃

● Temperature measurement accuracy: ±2 ℃ or ±2% of reading

● The window is made of special explosion-proof glass

● Made of 304 stainless steel, explosion-proof/anti-corrosion/dust-proof/water-proof.


Applications:

Petroleum, chemical industry, mine, military industry, medicine, oil depot, ship, drilling platform, gas station, etc.


Technical Parameters:


Argustec Atex IP Exproof Camera

Explosion-proof sign

Ex db ⅡC T6 Gb/Ex tb IIIC T80℃ Db

Levels of protection

IP68

Sensor type

1/2.8" CMOS

Pixel

5MP

Lens

4mm (6mm, 8mm optional)

Illuminance

Color 0.01 Lux @ (F1.2, AGC ON), 0 Lux infrared light on

Infrared distance

50 Meters

Standard

2880*1620@25、2560*1440@25、2304*1296@25、1920*1080@25、1920*1080@30

Resolution ratio

Main code stream: 2880 * 1620 (default), 2560 * 1440,2304 * 1296,1080P, 720P

Subcode stream: 720P, D1 (default), 640 * 360,2CIF, CIF

Three-yard stream: D1,640 * 360,2CIF, CIF (default)

Video processing

H.264、H.265 Video encoding

Audio processing

Support G.711u、G. 711a Code standard

Noise suppression

Support

Intelligent detection

Support humanoid detection, motion detection

Networking protocol

Support for PPPoE, IPv4, IPV6, TCP, UDP, DHCP, RTP, RTSP, DNS, DDNS, NTP, port mapping, etc

Interface protocol

Support for ONVIF standard protocol, GB / T28181 national standard protocol

Audio interface

Support 1 MIC / Line input, 1 audio output(optional)

Communication interface

1 RJ45 10 M / 100 M Adaptive Ethernet port

Temperature range

-40℃~+60℃

Power supply

AC85V ~ 260V/DC12V/POE (optional)

Product material

304 Stainless Steel material

Product weight

≤6kg

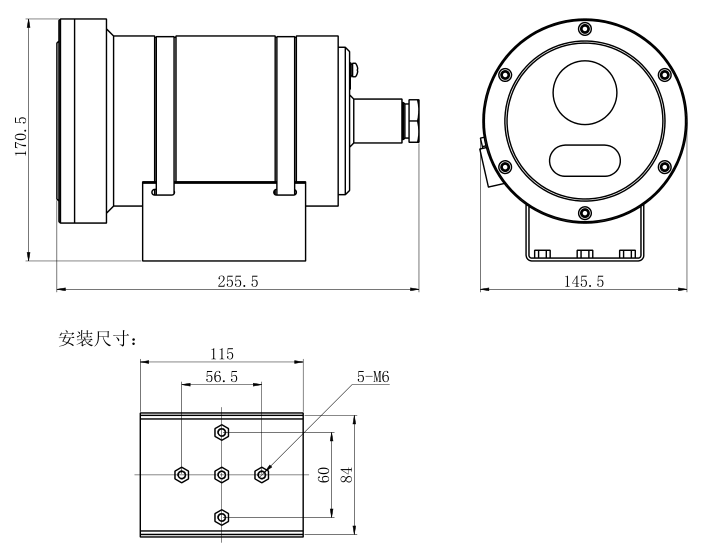

Product Size:


explosion proof cctv camera
