AGT-MTC4125P
Argustec
Product Description:

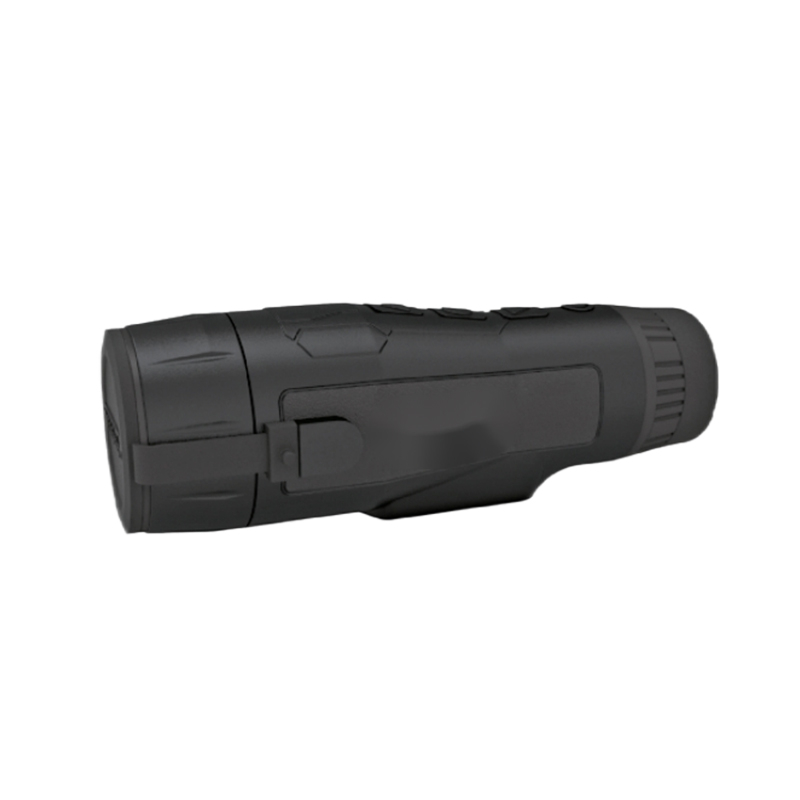

Argus handheld monocular thermal camera is specially designed for mobile observation. With uncooled infrared technology, unique imaging circuit components and AS optical design, it could search and observe object effectively. It have advantage like low weight, low consumption.
The camera is equipped with a high-quality rubber soft cover as per human hands design, which suit both portable and fixed observation, for night hunting, search targets. Functions of wifi, auto gain, polarity conversation, reticle, photo storage, brightness, digital zoom, and so on. IP66 protection to enable the camera works well in severe weather conditions.
Technical specification:
Items | AGT-MTC4125P | |
Detection Distance | Vehicle | 1500m |
Human | 1000m | |
Recognition distance | Vehicle | 485m |
Human | 335m | |
Detector | Type | Uncooled FPA |
Resolution | 384×288 pixels | |
Imaging | FOV | 25mm |
Digital zoom | 2X/4X | |
NETD | ≤40mk@30℃ | |
Frame rate | 50HZ | |
Focus | Fixed and adjustment | |
Spectral range | 8-14μm | |
wifi | Support | |
Ranging | Distance ranging | By reticle |
Display | Screen | 1024*768 |
Color palettes | Black-hot、white-hot、red-hot、Iron | |
Diopter adjustment | Adjust by rotary knob | |
Power supply | Battery type | Li-Ion battery,rechargeable |
Operating time | 5.5 hours continuous operation | |
Charging | Type C charging | |
Power input | DC 5V/2A(Micro USB) | |
Environment | Working temp. | -20℃- +50℃ |
Storage temp. | -40℃- +60℃ | |
Protection class | IP66 | |
Drop resistance | 1 Meter | |
Weight | Weight | 520g |
Interface | Power input | Yes |
Video output | PAL | |
Type C | Type C |
The detection distance is related to the object and environment etc. Please contact with us for further information.
