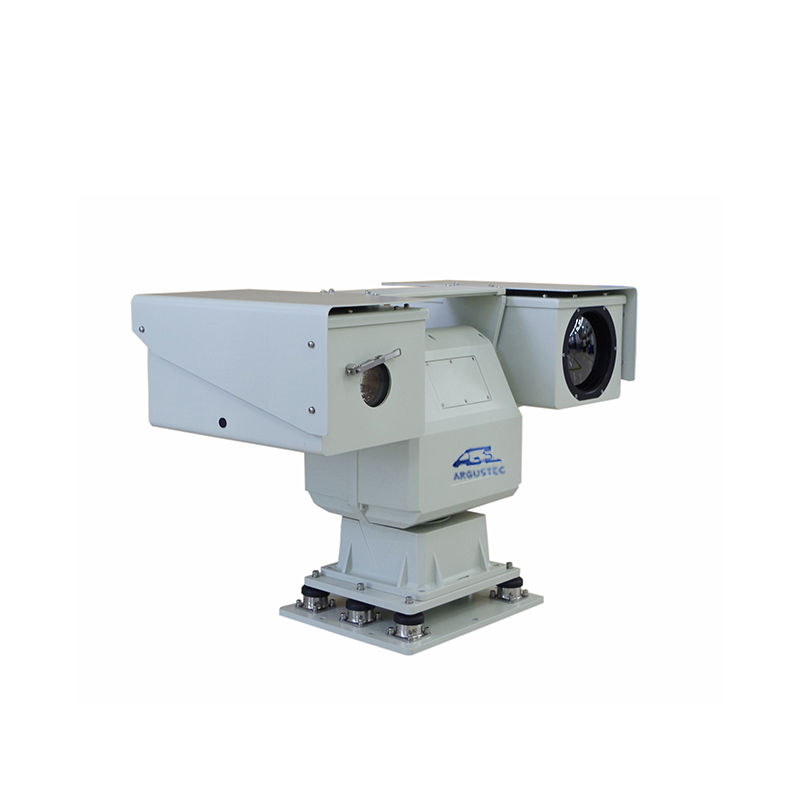

Long Distance PTZ Thermal Camera for Border Surveillance

Detection

Vehicle: 21km; Human 9km

Identification

Vehicle: 7km; Human: 3.3km

Thermal sensor

VOx uncooled detector,1280*1024 resolution for option

7.5um-14um spectral response, 45mk NETD

Thermal lens

25mm~325mm

13X continuous zoom, auto focus

                                          8X digital zoom

Image process

1. Image enhancement: SDE digital image enhancement technology to enhance image details

2. Pseudo-color polarity: 16 kinds of pseudo-color images, hot black / hot white two polarities

3. Image parameters: AGC automatic gain control, brightness, contrast

4. Electronic zoom: 2×, 4×, support global synchronous display

5. NUC correction: automatic / manual correction, background correction

Enhancement

1.Protection from strong light, Sunburn protection

2.Temperature correction: a thermalization design, the image sharpness is not affected by temperature

3. Scene mode: support multi-configuration scene, adapt to different environment application

Intelligent Analysic

1.Intrusion detection;

2.Fire Alarm/Hot Alarm

3. Ranging Scale;

4.Support Auto Track (together with software)

Visible Camera sensor

1/1.8'' CMOS

0.0002lux super high sensitive color to B/W CCD

2.1 MP resolution

Automatic ICR switch

H.264/MPEG4/MIPEG

32Kbps~16Mbps，60Hz30 FPS

Visible Camera lens

4.3mm～141mm

30X zoom

Auto focus

2MP full HD resolution

Housing

Material：High strength aluminum alloy shell，waterproof seal，To avoid the growth of mold and moisture generated

Structure：Integrated multi-window design

Surface coating：PTA three-resistance coating, Seawater corrosion resistance

Built-in thermostat, design of thermal equilibrium

Interface：Aviation waterproof plug

PTZ

Load：50kg

Pan: 0~360°, Tilt: +45°～-45°

Speed：Pan: 0.01～30°/S, Tilt: 0.01～15°/S

Preset: 255, with Petrol/scan function, Azimuth real-time display, Zero correction function

Interface

RJ45 Interface

Video format

H.264, Dual video output

Protocol

TCP/IP、HTTP、DHCP、DNS、DDNS、RTP ect. Other protocol

Support ONVIF2.0

Pelco-P、Pelco-D，Baudrate 2400、4800、9600、19200 optional

Power supply

AC24V/DC24V±10%，50Hz，150W，Standard AC220V->AC24V power supply

Environment

Operating temperature：-35℃～+60℃（-40℃ optional）；Storage temperature：-40℃～+65℃

Humidity：<90%

Anti-lighting：built-in auto Fuse-protected device, Power 4000V，Signal 2000V

Ingress protection：IP66
