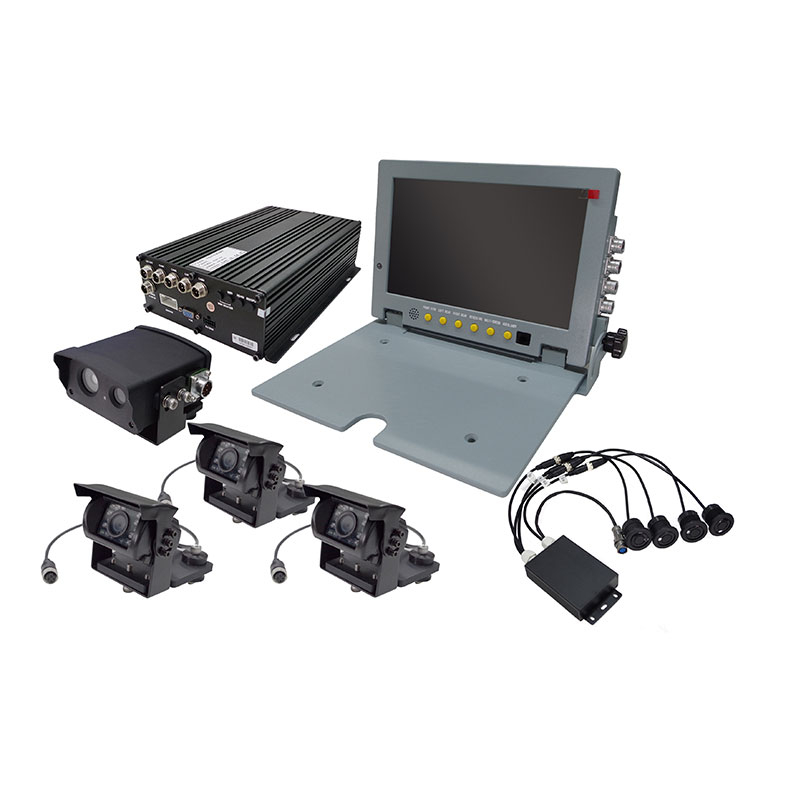

Tracking Vibration-Proof Vehicle Mounted Camera For Car

Availability:

PDF Export

  • AGT-SADAS300

Key Benefits:

  • Modular, standardized and universal design is adopted, with rich and flexible functional configuration, high reliability and easy fault location and maintenance;

  • The field of view splicing and fusion technology is adopted, with ultra-wide driving field of vision and realistic driving experience, which improves the driving safety of the vehicle to the greatest extent;

  • Low illumination CCD imaging and high brightness infrared LED lighting are adopted to meet the needs of auxiliary driving under day, night and all-weather conditions;

  • The combination of perimeter camera, ultrasonic radar, video and Audio Dual monitoring and early warning can provide omni-directional three-dimensional driving protection for drivers;

  • Multiple display modes are adopted, which can be automatically switched with the driving state of the vehicle, or can be manually selected and set to meet the diversified monitoring needs of the driver;

  • Adopt shock absorption and impact resistance design to meet the seismic requirements of on-board equipment under various adverse road conditions;

  • It adopts military quality design, which can work stably in a wide temperature range and low pressure. At the same time, it has the abilities of waterproof, moisture-proof, wind and sand proof, salt fog proof and solar radiation proof, and has strong environmental adaptability.

AGT-SADAS300


Overview:

AGT-SADAS300 auxiliary driving system has perfect functions, advanced performance, simple operation, stability and reliability. It can adapt to bad weather such as high and low temperature, damp and hot, sand and dust, salt fog and plateau. At the same time, it adopts on-board seismic design, which can ensure stable operation under various road conditions, and can effectively meet the all-weather auxiliary driving needs of special vehicles in the field in day, night and bad weather.


Applications:

Anti-UAV control, low-altitude air defense, military base security monitoring, airport monitoring, oil field and oil depot security.



Technical specification:

Model

AGT-SADAS300

Front-View

1. Camera: low illumination CMOS

2. Detection distance: (2*10-3lux environment) the detection distance without auxiliary light source is ≥ 30m, and under the illumination of auxiliary light source, the detection distance is ≥ 80m

3. Field angle: 120 ° ± 5 ° (H) × 34°±5°(V)

4. Resolution: ≥ 720 (H) × 576(V)

5. Auxiliary light source: infrared lamp, controllable

6. Overall dimension: ≤ 240mm × 180mm × 105mm

Back-View

1. Camera type: low illumination CMOS

2. Detection distance: (2*10-3lux environment) the detection distance without auxiliary light source is ≥ 20m, and under the illumination of auxiliary light source, the detection distance is ≥ 40m

3. Field angle: 78 ° ± 5 ° (H) × 57°±5°(V)

4. Resolution: ≥ 720 (H) × 576(V)

5. Auxiliary light source: infrared lamp, controllable

6. Radar probe: 40KHz ultrasonic ranging sensor

7. Radar detection range: 0.1M ~ 5m

8. Radar detection accuracy: 0.1M

9. Overall dimension: rear view image ≤ 160mm × 160mm × 100mm; Radar control box ≤ 135mm × 75mm × 30mm

Side-View

1. Camera type: low illumination CMOS

2. Detection distance: (2*10-3lux environment)the detection distance without auxiliary light source is ≥ 10m, and under the illumination of auxiliary light source, the detection distance is ≥ 20m

3. Field angle: 75 ° ± 5 ° (H) × 55°±5°(V)

4. Resolution: ≥ 720 (H) × 576(V)

5. Auxiliary light source: infrared lamp, controllable

6. Overall dimension: rear view image ≤ 100mm × 100mm × 110mm

7. Adjusting support: telescopic turnover, expansion amount 0 ~ 200mm, turnover angle ≥ 90 °

Screen

1. Display size: 12.3 inches

2. Resolution: 1920 × seven hundred and twenty

3. Installation method: hanging, reversible, unilateral turnover not less than 90 °

4. System keys: including front view (splicing), front look around, rear view, rear look around, video output, channel selection, lighting, power supply, etc

Server Box

1. Video storage: continuous storage time ≮ 48H

2. Storage medium: vehicle mounted hard disk video recorder

3. Installation position: under the driver, outside the cab

4. System video export and playback

General

1. Power:DC 9V~36V

2. Consumption:≤100W

3. Working Temp:-40℃~+65℃

4. Shaking: GJB367A-2001

5. Humidity: GJB367A-2001

6. Protection:IP66, water proof

7. MTBF:≥3000h

8. MTTR:≤0.5h
