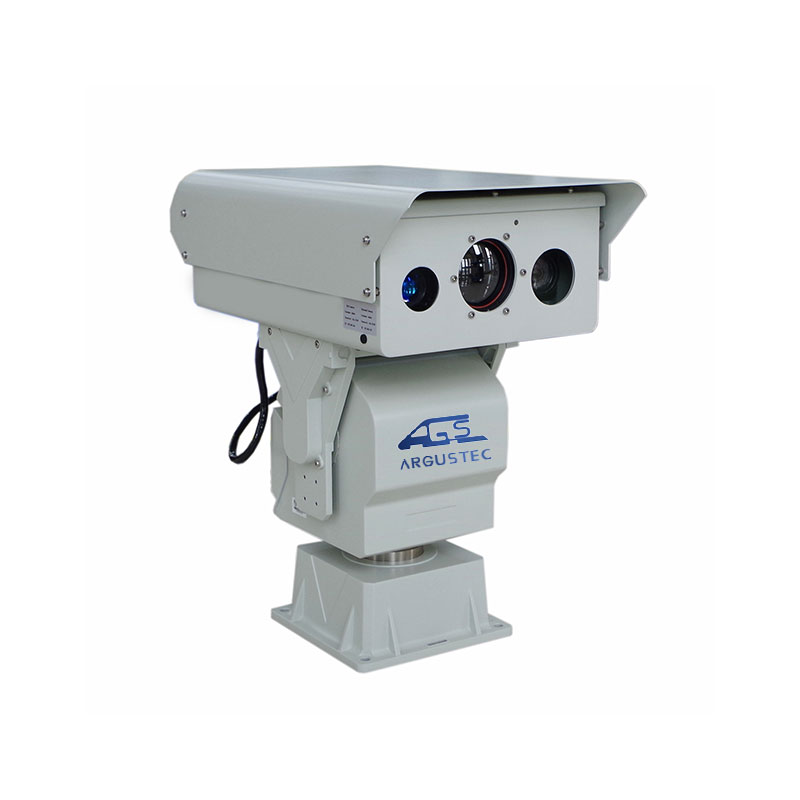

AGT-TRC4307-2132-TG
The unique AS + DOE advanced optical continuous zoom design and 3CAM high precision optical mechanical design provide smooth and smooth zoom for large-scale search and remote recognition
Excellent non-uniform image correction technology, with good image uniformity and dynamic range
SDE image detail enhancement technology, image smooth without noise, a variety of false color and hot black hot white polarity image mode switching, strong adaptability, easy to find low contrast hidden targets
Integrates with infrared thermal image, HD visible imaging, laser illuminator , video coding, pan/tilt cover and control electronic system.
Visible imaging adopts with full HD color black and white mode low illumination CMOS sensor and 30 times compact continuous zoom lens.
The latest generation of VOx detectors based on MEMS technology, detection sensitivity (NETD) up to 50mk, higher sensitivity than conventional products, to obtain more delicate picture quality, less affected by fog, rain and snow switching of laser switch and camera into day-night mode.
Harbour and airport monitoring;
Water system monitoring;
Storage monitoring;
Military base security monitoring;
Oil field storage safety;
Fire prevention and monitoring;
Ecological environment monitoring;
Border and coastal defense;
Urban safety and anti-drone applications;
Highway and rail monitoring.
Model | AGT-TRC4307-2132 | |
Detection | Vehicle: 6.5km,Human:2.5km | |
Identification | Vehicle:1.8km, Human: 700m | |
Thermal Camera System | ||
Sensor | 5th generation FPA VOx uncooled detector | |
Resolution | 384*288(optional 640*512 ) | |
Spectral range | 7.5~14μm | |
NETD | 50mK (@25℃ F1.0) | |
Focal length | 25mm~75mm, 3X continuous zoom, auto focus | |
FOV | 24°* 18°~8°*6° | |
Image process | 1. Image enhancement: SDE digital image enhancement technology to enhance image details 2. Pseudo-color polarity: 16 kinds of pseudo-color images, hot black / hot white two polarities 3. Image parameters: AGC automatic gain control, brightness, contrast 4. Electronic zoom: 2×, 4×, support global synchronous display | |
Lens Control | 1.Zoom: Electrical Zoom. 2.Focus: Manual/Auto Focus 3. Optical machine: 3CAM mode and AS+DOE optical structure, high infrared over transmission, zoom process without virtual focus, smaller axis. | |
Visible Camera System | ||
Camera | 1/2.8” star level CMOS, 0.05lux/0.01lux color to B/W CCD | |
2 MP ,1920X1080 | ||
Automatic ICR switch | ||
H.264/H.265 MPEG4/MIPEG | ||
32Kbps~16Mbps,60Hz30 FPS | ||
Visible lens | 8mm~320mm, 2MP resolution, 40X zoom, auto focus | |
Laser Illumination | ||
Consumption | 10W, 808nm military NIR | |
Illumination Angle | 1°~20° | |
Synchronization control | DSS digital stepping illumination angle control technology, 0.1 degree precise servo control | |
Housing | ||
Material | High strength aluminum alloy shell,waterproof seal,To avoid the growth of mold and moisture generated | |
Surface coating | PTA three-resistance coating, Seawater corrosion resistance | |
Temp. Control | Built-in thermostat, design of thermal equilibrium | |
Interface | Aviation waterproof plug | |
PTZ | ||
Load Capacity | 30kg | |
Range/Speed | Range:Pan: 0~360°, Tilt: +45°~-45°; Speed: Pan: 0.01~60°/S, Tilt: 0.01~30°/S | |
Preset | 255 | |
Scan | Support 6 cruising line, 1 apple-skin scanning, 1 line-cruising. | |
Interface | ||
Network Interface | RJ45 | |
Network Protocol | Support TCP/IP, UDP, IPv4/v6; Support HTTP,RTP,RTSP,NFS,HDCP,NTP,SMTP,,PPPoE,DNS, FTP, Onvif | |
Power Supply | AC/DC24V, anti-reverse connection protection | |
Environment Parameter | ||
Working/Storage Temp. | Working temperature: -25℃~+60℃(-40℃for optional); Storage temperature: -45℃~70℃ | |
Seismic/Impact Resistance | 0.2g/15g | |
Anti-lighting | Built-in auto Fuse-protected device, Power 4000V,Signal 2000V | |
Ingress Protection | IP 66 |
