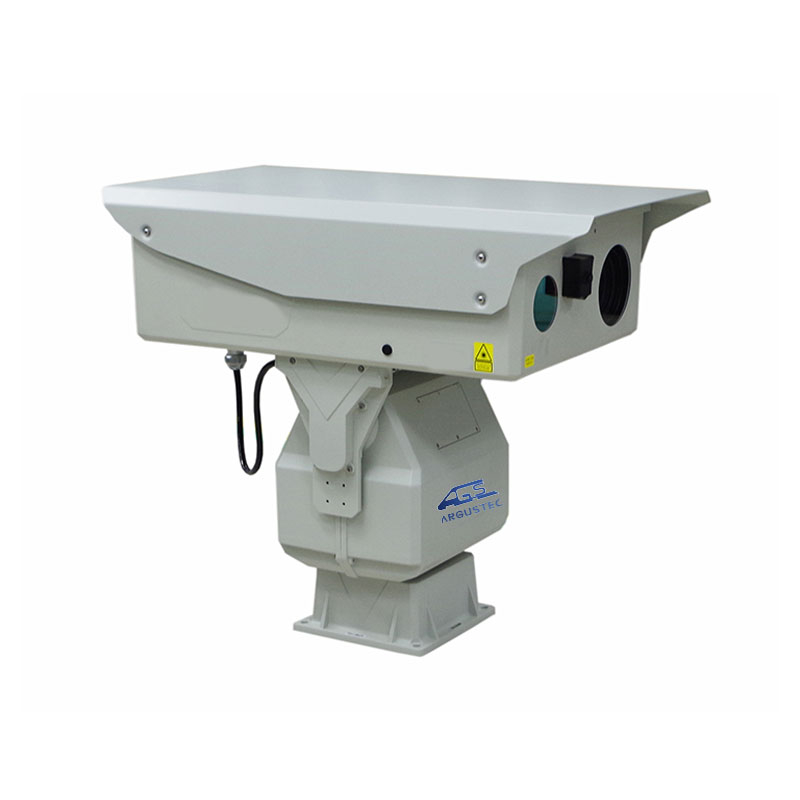

Infrared Long Range Laser Night Vision Camera for Harbor

Availability:

PDF Export

  • AGT-RC21100

Key Benefits:

AGT-RC21100 series long-range HD infrared laser imaging camera is designed for 24 hours monitoring. With super homogenizing NIR laser and low illumination megapixel telephoto lens. The max detection distance for human/car/object is 10 km in the day and 3 km~4km in the night

Built-in technical grade embedded control electronic system, the camera operation like zooming, focusing, video switch, rotation is stable and accurate. One integral aluminum alloy housing and weatherproof IP66 make sure it works well outdoor.

总


Overview:

DSS digital stepper illumination angle control, unique laser zooming and distance matching technology, min 0.1° follow-up zooming.

GHT super homogenizing and power consumption control of NIR laser ensure a better effect.

Independent laser photocell.

360° continuously rotation PT, rotation stably.

One integral aluminum alloy housing, IP66 ingress protection, waterproof, anti-dust.


Applications:

Oilfield monitoring, navigation, fishery, aquaculture, railway&freeway security, seaport&airport security, mariculture security, city security and forest fire prevention.


Technical Specification:

Model

AGT-RC21100

Detection

Day: 10km;


Night:3 km

Consumption

20W, 810nm, NIR

Laser angle

0.3°~20°

Angle and distance matching

DSS digital stepper illumination angle control, unique laser angle and distance matching technology, min 0.1°follow-up zooming

GHT-II super homogenizing HD illumination technology

0.01°SLM optical axis aiming and locking

Camera

1/1.8'', 0.0002lux high sensitive color to B/W CCD ,2 megapixel


Automatic ICR switch,H.264 video format

Lens

12~1000mm HD lens, infrared correction, 2 mega pixels, motorized zoom



Penetrate fog

Optional, optical filtering and AFR optoelectronic enhanced image processing technology, color penetrate fog

Housing

One integral aluminum alloy housing,sealed and waterproof,IP66

Load duty

50kg

PT

Pan: 360°continuously


Tilt: +45°~-45°

Rotation speed

Pan: 0.01~30°/S


Tilt: 0.01~15°/S

Preset

80, with patrol and scan function

Interface

1*RJ45,1*AC24V

Power supply

AC24V±10%,50Hz,150W,standard configuration AC220V->AC24V adapter

Weatherproof

IP66

Anti-lighting

Power voltage 4000V,communication signal 2000V

Protocol

Pelco-P、Pelco-D and so on standard protocol, baud rate 2400、4800、9600、19200

Operational temp.

-25℃~+55℃ (-40℃ optional)

Weight

≤40kg
