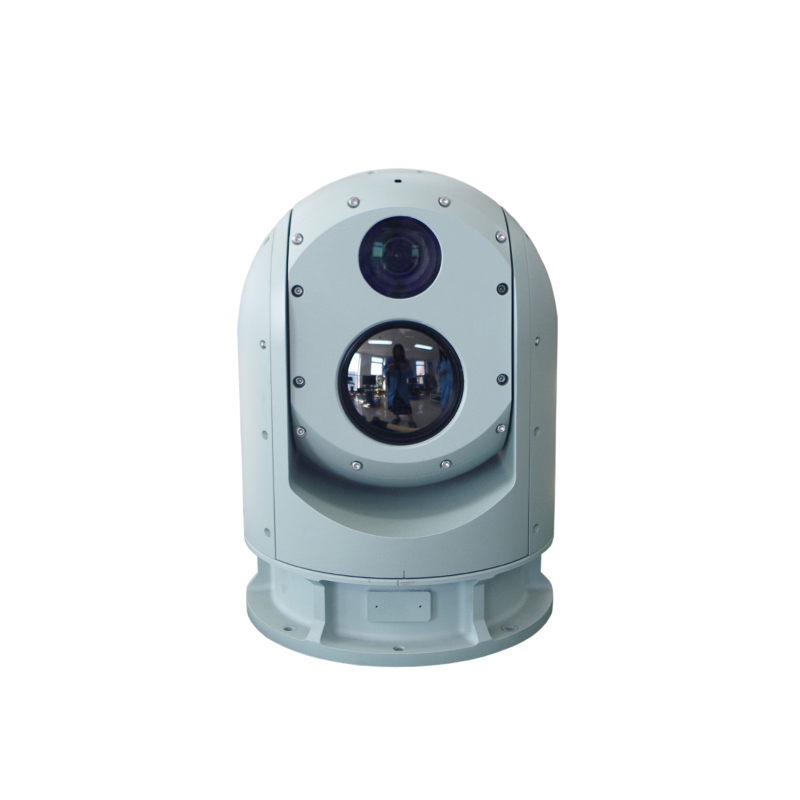

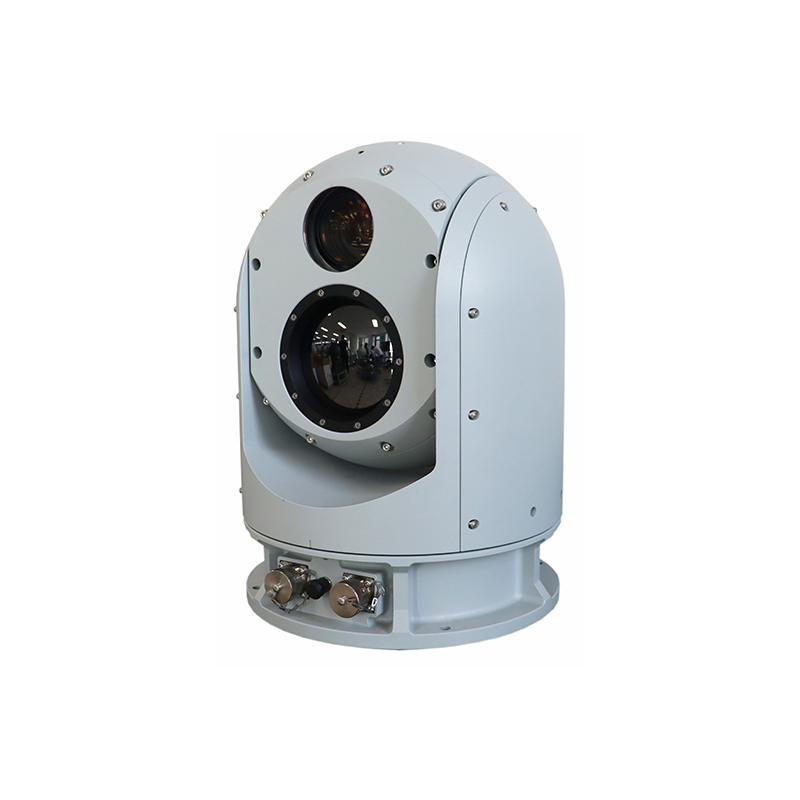

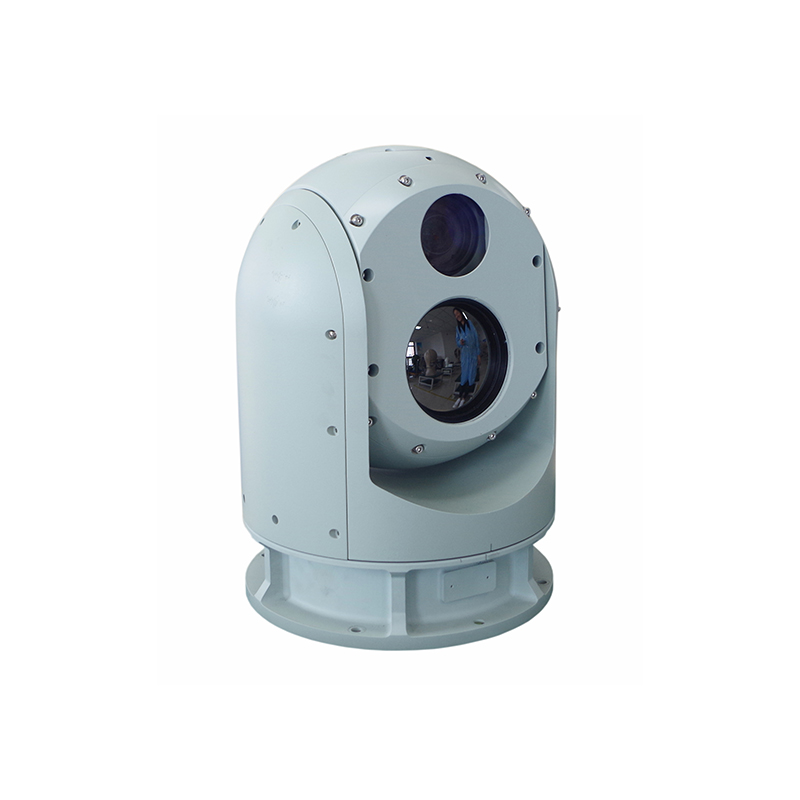

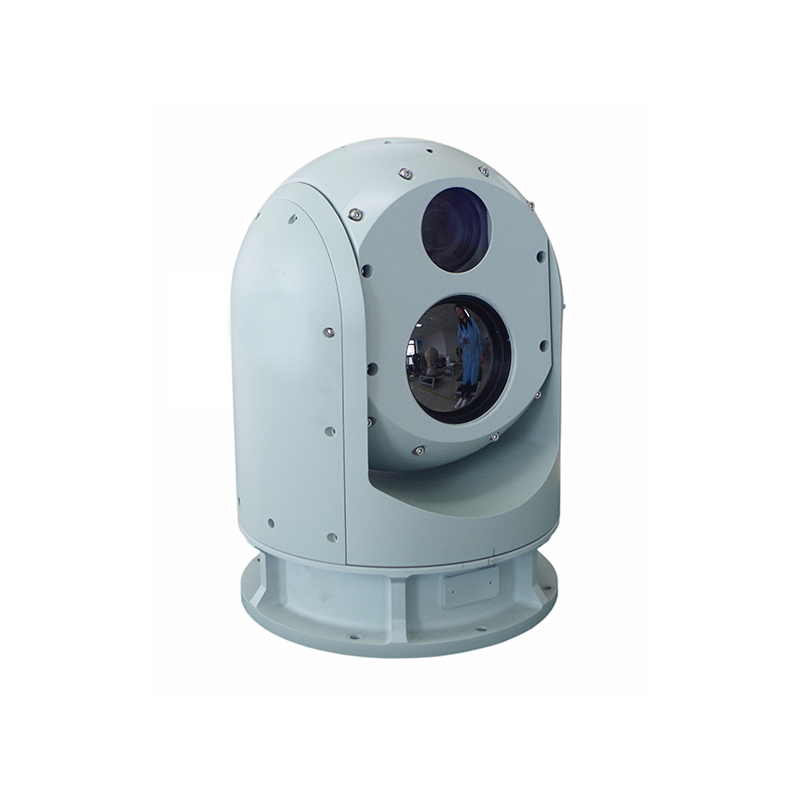

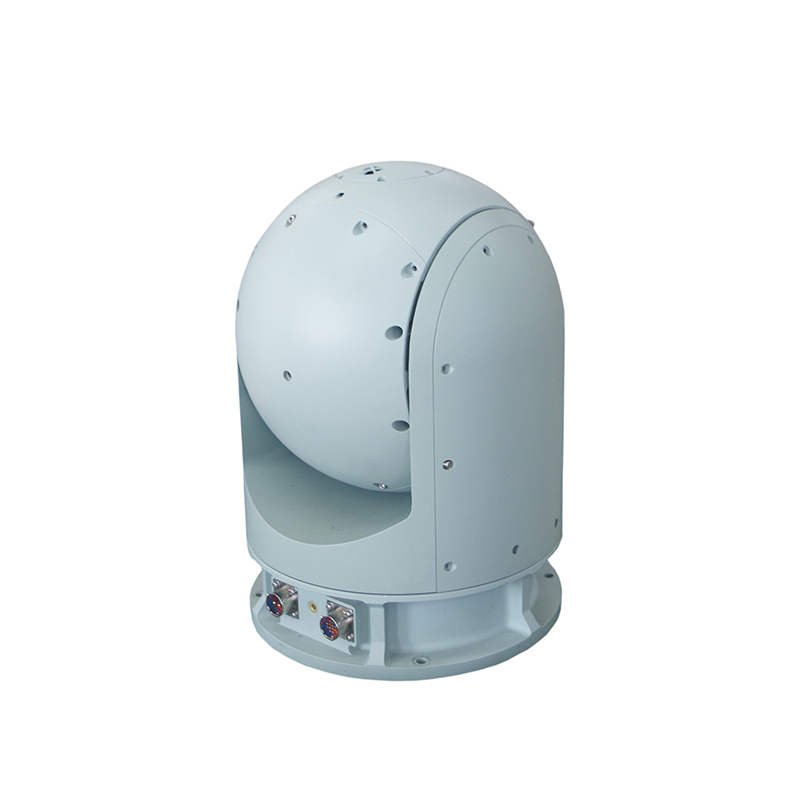

Long Distance Multi Sensor Thermal Camera Surveillance

Availability:

PDF Export

  • AGT-Z201-LFZ

  • Argustec

Key Benefits:

  • Z201 Series Long Range Multi Sensor Thermal Camera integrates HD daylight camera, uncooled thermal camera, gyro stabilization, intelligent analysis, and precise electronic control. It is designed for ship / shipboard video acquisition and sea surface warning, key target warning, radar linkage and other applications designed long

  • distance detection system, which can adapt to all-weather, all-time,

  • full-dimensional discovery, positioning, tracking, identification

  • and tracking of the target function, the smallest distance to

  • small ships and islands can be up to 10 km.

thermal camera manufacturer



Overview:

1.Multi spectrum: Integrated with HD daylight camera system, uncooled sensor thermal camera system,, and so on. Combined with active and passive detection, 24 hours surveillance in all-weather environments

2.High/Fast turning speed: turning speed 90°/s, acceleration 120°/s², helpful for capture and tracking fast moving targets.

3.Wide coverage: the azimuth rotation range is 0~360°, and the pitch rotation range is -90° ~+90°, all angle detection, all-round coverage

4.High control accuracy: using precision angle encoder and high precision servo PT control system, the positioning accuracy can reach 0.02°, high performance imaging processing technology combined with high precision focus control to achieve precise auto focus

5. Excellent tracking performance: The automatic tracking module is designed with a variety of target acquisition algorithms and tracking algorithms, supplemented by high-precision servo control, to ensure stable tracking of the target during rapid movement and process.

6.Gyro stabilization: The two-axis gyro stabilization structure design effectively isolates the disturbance of the optical system caused by carriers such as vehicles and ships, and always maintains a high degree of image and video stability.


7. Intelligent analysis: Support target intrusion detection, motion detection and other abnormal behavior detection, support target classification and identification, support hot spot alarm, radar linkage, 3D zoom positioning and other functions.

8. Self-diagnosis and self-recovery: support life-cycle management, fault self-checking, front-end storage, resuming transmission after disconnection, memory after power failure, remote restart/upgrade.

9. Environmental adaptability: high-strength aluminum alloy material, internal and external double-layer three-proof technology, IP67 protection, rain-proof, dust-proof, anti-corrosion, anti-electromagnetic interference

Applications:

Border/Costal defense, harbor, oil field, river lane, airport, safe city



Technical specification:

Model

AGT-Z201-LFZ

Detection

Thermal: Vessel: 10km; Vehicle: 3km; Human:1.2km

Daylight: Vessel: 20km; vehicle:5km; Human: 2.5km

Thermal Camera System

Detector

Uncooled sensor

Pixel size

12μm

Resolution

640*512 resolution (1280*1024 resolution for option)

NETD

40MK

Lens

25~100mm

Zoom

4X optical zoom, 8X digital zoom

Lens control

Electric zoom; manual/auto focus, 3A adaptive active focus algorithm, support multiple trigger modes


Image process

SDE digital image enhancement technology, enhance the details of the image, support 255 enhancement adjustment

Pseudo-color

16 kinds of pseudo-color images, hot black / hot white two polarities

Image parameters

AGC automatic gain control, brightness, contrast

Digital zoom

1x~8X continuous digital zoom, support global synchronous display

Range Scale

Support range scale to measurement the distance

Strong light protection

Support anti-sun damage

Daylight Camera System

CMOS

Ultra-low illumination starlight CMOS

Low Illumination

Color: 0.005lux, black/white: 0.001 lux

Lens

6mm~210mm, 35X zoom

Image process

Support white balance, electronic shutter, backlight compensation, strong light suppression, 2D/3D digital noise reduction, electronic image stabilization, WDR, heat wave drift suppression

Defog

Support

Audio/Video

Thermal Resolution

Support: 1920×1080;1280×1024;1280×960;1024×768;1280×720;704×576;640×512;640×480;400×300;384×288;352×288;352×240

Daylight Resolution

Support:2592×1520;2560×1440;1920×1080;1280×1024;1280×960;1024×768;1280×720;704×576;640×512;640×480;400×300;384×288;352×288;352×240

Video encoding

H.265/H.264/MJPEG

Video bit rate

32Kbps~16Mbps

OSD setting

Support OSD display settings for channel name, time, gimbal orientation, field of view, focal length, and preset bit name settings

Intelligent Functions

Intelligent analysis

support intrusion detection, boundary crossing detection, entering/leaving area detection, motion detection, wandering detection, people gathering, fast moving, target tracking, items left behind, items taken; people/vehicle target detection, face detection; and support 16 area settings; support intrusion detection people, vehicle filtering filtering function; support target temperature filtering filtering function

Auto Track

Support

Enhanced Features

Distance measurement

Support passive distance measurement; support optional laser distance measurement.

Anti-Sunburn

Support

Temperature correction

A thermalization design, image clarity is not affected by temperature

Disconnection renewal

Support

Power failure memory

Support can restore the position before power failure, preset point state, cruise state, line sweep state

Web access

support WEB full function configuration, remote online upgrade

Pan Tilt

Structure

Dome model,  wind resistance, strong anti-shake, can resist 12-level strong wind

Gyro stabilization

two-axis gyro stabilization

Rotation

N*360°in horizontal, -90~+90 in pitch

Rotation Speed

0.01°~90°/s in horizontal, 0.01°~90°/s in pitch

Acceleration

120°/s2 (horizontal and pitch)

Positioning accuracy

≤ 0.02°

Preset

3000

Gyro stabilization

Support, two axis gyro stabilization

Interface

Network interface

RJ45

Network Protocol

Support HTTP,HTTPS,FTP,SMTP,DNS,NTP,RTSP,RTCP,RTP,TCP,UDP,ICMP,DHCP;ONVIF,GB28181 and so on

Physical interface

alloy waterproof aviation plug

Others

Power supply

DC24V with power adapter

Power consumption

Normal: ≤ 150W; Peak: ≤ 400W

Working temperature

-40 ~+ 60℃

Storage temperature

-45 ~+ 70℃

Humidity

<90%

Ingress protection

IP67

Weight

≤ 20kg

Dimension

280mm*400mm

Display and Monitor

Display

1.Screen: 10 inch, 16:9


2.Resolution: 1920*1080

Function

FOV/Focus/Video/PIP/Self-checking/Target check/Auto track/Gyro stabilization/Manual track/

Interface

1. Communication: 2ch RS422;2 channel USB

2. Video: RJ45

Dimensions/Weight

Dimensions: 300*260*65mm  Weight: 5kg
