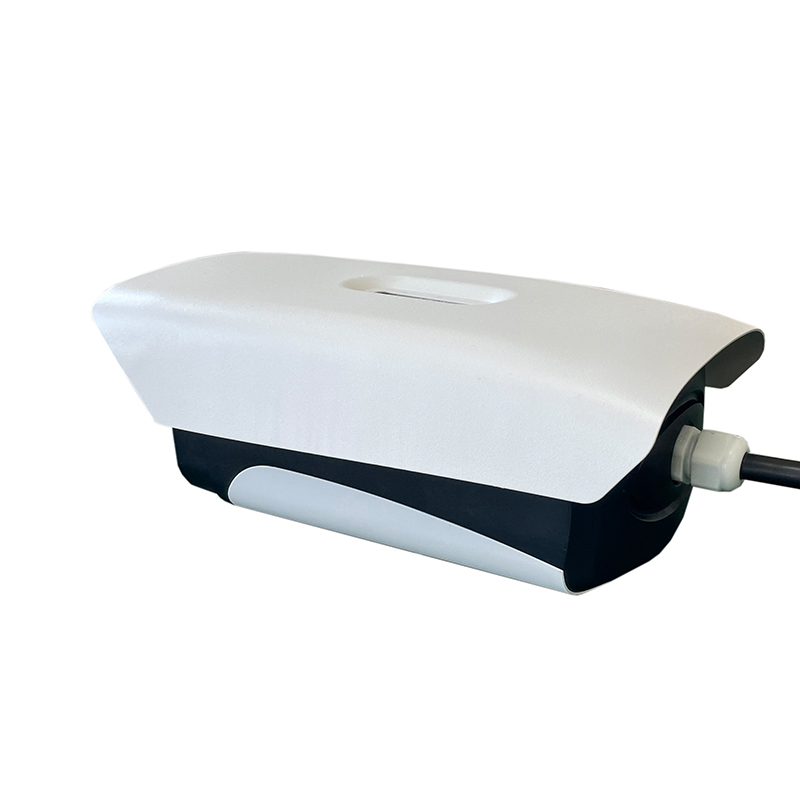

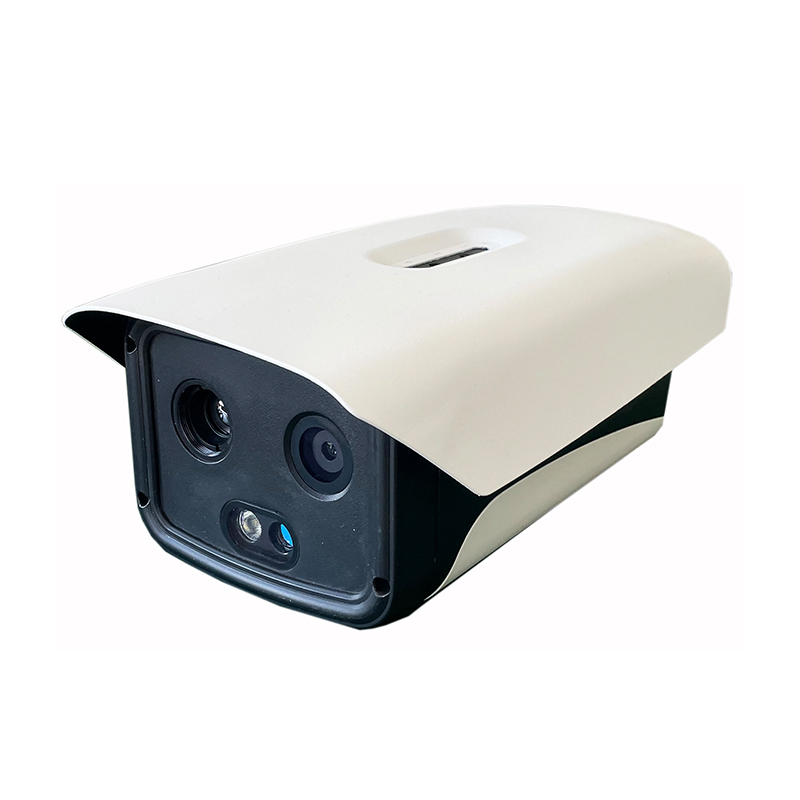

Multi Sensor Thermal Bullet Camera

Availability:

PDF Export

  • AGT-KMS6300-35

  • Argustec

Key Benefits:

  • Sixth-generation uncooled focal plane Vox detector

  • AS optical zooming lens and high-precision optomechanical design make a good image quality.

  • Integrates infrared thermal imaging, high‑definition visible light, infrared illuminator, intelligent analytics, and

  • audio‑visual alarm in one unit. Adopts an integrated, highly compact design for easy installation and operation.

  • Designed with a full‑HD color/black‑and‑white dual‑mode low‑light CMOS sensor for visible light, featuring compact size and light weight.

  • Non-uniform image correction technology, stable operational temperature without TEC, good image uniformity and

  • dynamic range.

  • With fire alarm function. Built-in 1/1 alarm in/out

  • Tripwire analytics and moving object analytics function.

  • IP67 can fit severe environment.

airport thermal camera


Applications:

  • Substations, chemical plants

  • Railway stations

  • Passenger stations

  • Subway stations

  • Airports


Technical Specification:

Model

AGT-KMS6300-35


Thermal Camera


Sensor

Sixth-generation uncooled focal plane VOx

detector


Resolution

640*512


Pixel Size

12  μm


Thermal Sensitivity (NETD)

≤40mK


Spectral Range

8 ~ 14um


Focal Length

35 mm


Field of view (horizontal)

12.5° *10°


Detection Range

Vehicle (2.3m * 2.3m):    1,200 m

Human (1.8m * 0.6m):    600 m


Recognition Range

Vehicle (2.3m * 2.3m):    600 m

Human (1.8m * 0.6m):    400 m


Visible Light Camera


Image Sensor

1/2.8" CMOS


Effective Pixels

2 MP, 1920*1080


Min. Illumination

Color: 0.0001Lux; B/W: 0.0001Lux; 0Lux (IR on)


IR On/Off Control

Auto/Manual


Angle of View

36°*20° (f8mm)


IR illumination range

>= 90m


Software


IVS

Fire alarm, Cold/Hot spot trace, object clarification,

Tripwire, Intrusion, Entry/Exit Detection


Supported video compression formats

H.264, H.265


Ethernet

RJ-45 (10/100Base-T)


Protocol

36° *20° (f 8mm)


InteroperabilityONVIF Profile S & G, API


Web Viewer

IE8+, Chrome 42+, Firefox 42+, Safari 10+


Management Software

Smart PSS, DSS


Smart Phone

Android, IOS


Interface

HTTP, HTTPS, TCP, ARP, RTSP, RTP, UDP, ICMP, RTCP,

SMTP, FTP, DHCP, DNS, DDNS, PPPOE, IPv4/v6, SNMP, QoS, UPnP, NTP


Video Interface

1 RJ45


Audio Interface

In/Out 1/1


RS485

Support


Alarm

1/1 In/Out


Electrical


Power Supply

DC 12V


Power Consumption

≤ 12W


Over-voltage protection

≤ 6kV


Operation environment

-40℃~+60℃


Housing


Housing

Aluminum alloy


Dimensions

261.7mm * 139.5mm * 103mm


Net Weight

1.7Kg
