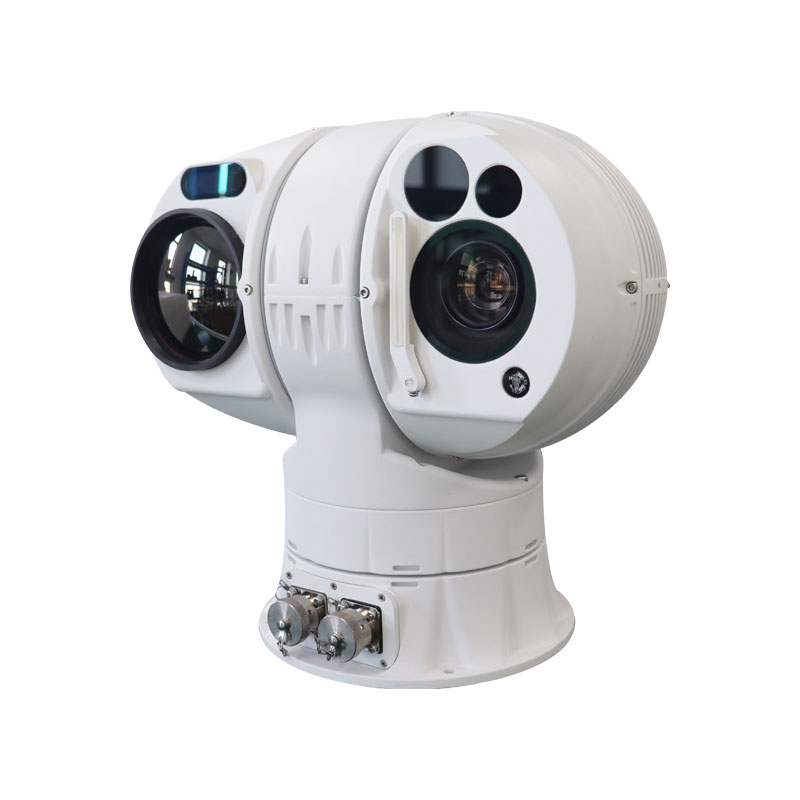

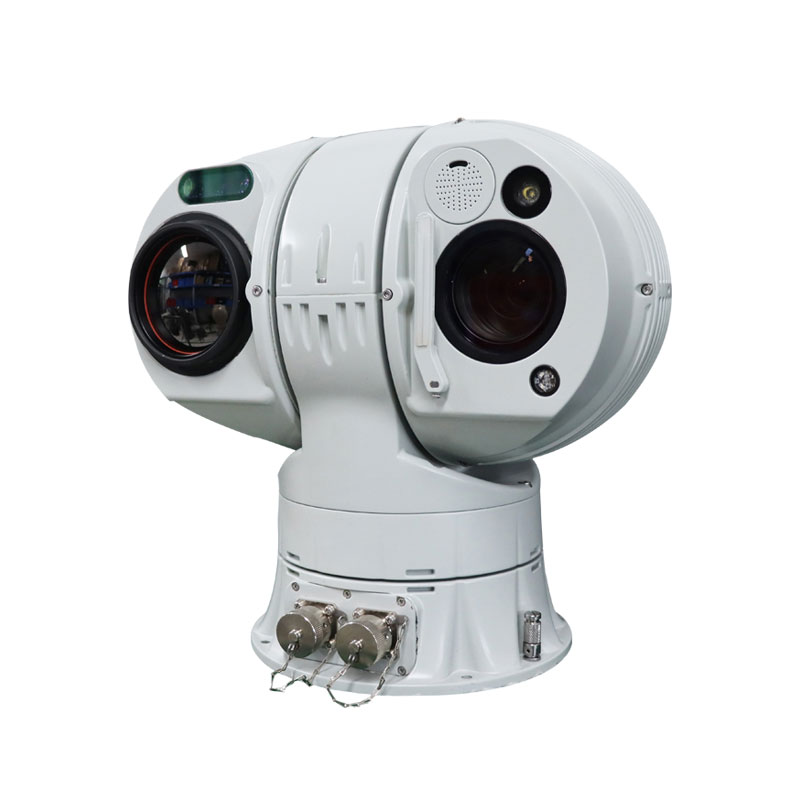

Marine EO/IR PTZ Surveillance Camera

Availability:

PDF Export

  • AGT-DMS15BLIEGIS 6110-4126

Key Benefits:

  • It can integrate low-light high-definition visible light and uncooled thermal imaging, which can effectively meet the monitoring needs under day and night and all-weather conditions;

  • The rotation speed is 80°/s, the acceleration is 100°/s², the start and stop are fast, and the operation is smooth, which helps to capture and track fast-moving targets;

  • The azimuth rotation range is 0°~ 360°, and the pitch rotation range is -90° to +90°, achieving no-blind-angle detection and full-dimensional coverage;

  • Automatic tracking module, supplemented by high-precision servo control, ensures stable tracking of the target during rapid movement and direction changes;

  • Supports target intrusion detection, motion detection and other abnormal behavior detection, target classification and recognition, hotspot alarm, radar linkage, 3D zoom positioning and other functions;

  • IP67 protection, rainproof, dustproof, corrosion-resistant, and electromagnetic interference-proof, suitable for harsh outdoor environment.

outdoor thermal camera



Overview:

The AGT-DMS15BLIEGIS series uses multi-spectral imaging technology, computer control technology, image processing technology, intelligent analysis technology, platform stabilization technology, etc., which can be fixed in key areas, realize air-ground integrated target monitoring, detection, tracking and recording evidence, and clearly and stably monitor, detect and record evidence of sea targets. It can also be used for auxiliary navigation, maritime search and rescue, and key sea area monitoring. Optional 10-inch display control PAD and micro control keyboard are suitable for small boats.


Applications:

It can be equipped on various types of ships and can also be installed on vehicles.



Technical Specification:

Type

AGT-DMS15BLIEGIS-6110-2132

Detection


ship

(20×5m)

car

(4.6m×2.3m)

person

(1.8m×0.5m)

Thermal Camera

15km

5km

3.5km

Daylight Camera

15km

7km

3 km

Daylight

Camera

1. Sensor: 1/1.8″ target surface CMOS

2. Resolution: 2688×1520

3. Illumination: Color 0.0001 Lux@(F1.6,AGC ON), Black and White 0.00005 Lux@(F1.6,AGC ON)

4. Lens: 6.6-264mm HD lens, electric zoom, manual/auto focus

5. Video format: H.264/H.265

6. Image enhancement: Support AISP, achieve ultra-low light full color, support wide dynamic, strong light suppression, electronic image stabilization, digital noise reduction, automatic white balance, etc.

7. Defog: Supports optical/electronic dual defog

Thermal

Camera

1. Detector: VOx uncooled

2. Resolution: 640×512

3. Pixel: 12μm

4. Band: 8μm~14μm

5. Lens: 100mm;

6. Field of view: 4.4°×3.5°

7. NETD: ≤40mk (@25℃ F1.0)

8. Video format: H.264/H.265

9. Lens control: electric zoom, manual/auto focus

10. Correction: automatic/manual/background correction

11. Polarity pseudo color: hot black/hot white polarity, and a variety of pseudo colors

12. Image adjustment: support brightness, contrast, gamma correction and other parameter adjustment

13. Electronic magnification: 1×~8× digital magnification, support global synchronous display

14. Hot spot alarm: support

Laser illuminator

1.Laser type: infrared GHT-III high-definition homogenized light source

2. Laser power: <3W

3. Laser wavelength: 808nm±5nm

4. Illumination angle: 3°~65°

5. Illumination distance: 300m

Illumination control: photosensitivity automatic/forced on, off

Pan Tilt

1. Window: Double/triple window

2. Wiper: Support intelligent automatic wiper

3. Rotation range: 360° continuous rotation horizontally, -90°~+90° pitch

4. Zero position setting: Support horizontal and pitch zero point setting

5. Rotation speed: horizontal 0.01°/s~120°/s, pitch 0.01°/s~80°/s

6. Acceleration: ≥100°/S²

7. Positioning accuracy: 0.02°

8.Image stabilization accuracy: two-axis gyro stabilization

9. Drive mode: Direct drive by torque motor, high-speed start and stop, and linkage tracking with radar
